Tronzadoras MG TL 600 A Aluminium Saw

Left and right mitre through 180deg +/- 90°

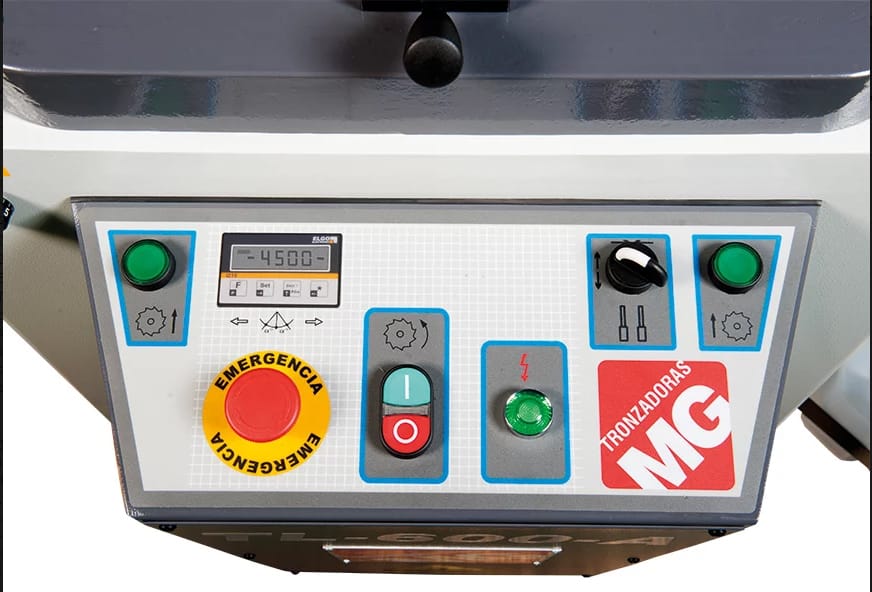

Digital display of the cutting angle

Hydropneumatic feeding of the sawblade

Precise control of the cutting feed rate

Moveable back fence for wider cut capacity

Enclosed cutting zone with interlocked hood

Powered opening of the hood

Blade stroke limiter for fast repetition cutting

Secure pneumatic clamping

Mist spray blade lubrication

Preperation for swarf extraction

Removable swarf tray

Add to quote

Tronzadoras MG TL 600 A

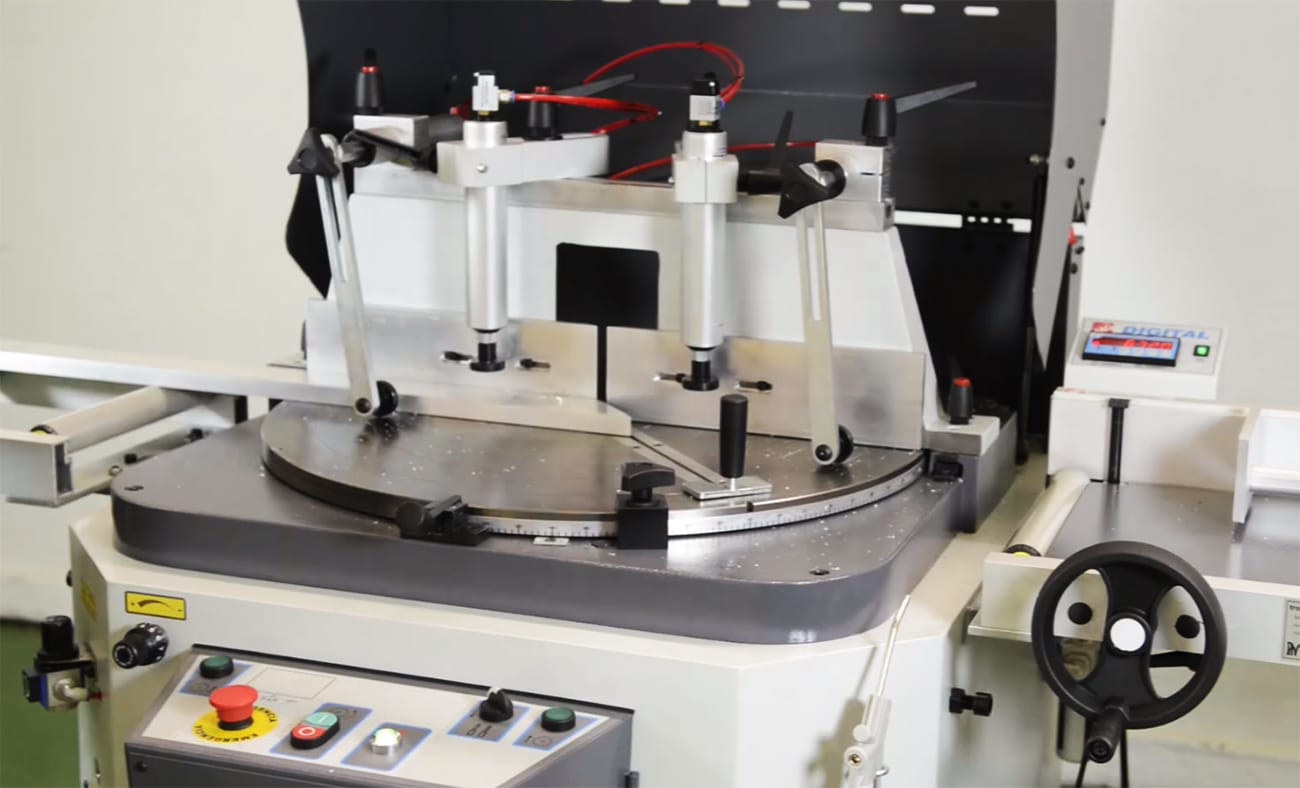

The TL600 large capacity mitre saw has been proven to be dependable and highly accurate offering the highest safety protection without reducing operating effectiveness. The TL has an easy rotation cutting table for left/right mitre cuts through 180 degrees, and a moving back fence to increase the width cutting capacity. Standard with horizontal & vertical pneumatic clamps, mist spray blade lubrication system, (option for Addimist pure oil micro mist), removeable swarf drawer and air blow cleaning gun.

Motor	4 Hp
Sawblade Diameter	600mm
Cutting Speed	3000rpm
Blade Spindle Diameter	50mm
Maximum Cutting Height	230mm
Dimensions	1300x1220x1635mm
Weight	970mm
Cutting Capacity – Round 90º	230mm
Cutting Capacity – Round 45º	230mm
Cutting Capacity – Square 90º	200x200mm
Cutting Capacity – Square 45º	160x160mm
Cutting Capacity – Rectangle 90º	310x150mm
Cutting Capacity – Rectangle 45º	250x100mm
Working Height	970mm

Cutting Angles

Addimist

Pure oil micro-mist blade lubrication system recommended over the standard soluble system, as it delivers a high performance neat oil in minute highly controlled doses. Giving a cleaner working environment with no odours or risk of skin irritation sometimes connected with soluble fluids. Each dose cane be scaled by adjusting the size of each pulse and the frequency of each pulse.

EW-3 Extractor

Complete swarf extraction system taking from both above and below the cutting table, highly efficient and fully compliant to handle aluminium, pvc, brass, wood, copper and composite materials. The steel container is removable for easy emptying, and the filter bags are maintained with either the standard manual shake lever or the optional pneumatic shake.
