Vertical | 500mm Blades | Multiple Cut Angles | Max Cut W: 230mm H:250 mm

Hydro-Pneumatic cutting process

Adjustable saw blade travel speed to the profiles

Double hand safety start

Sawblade lubrication

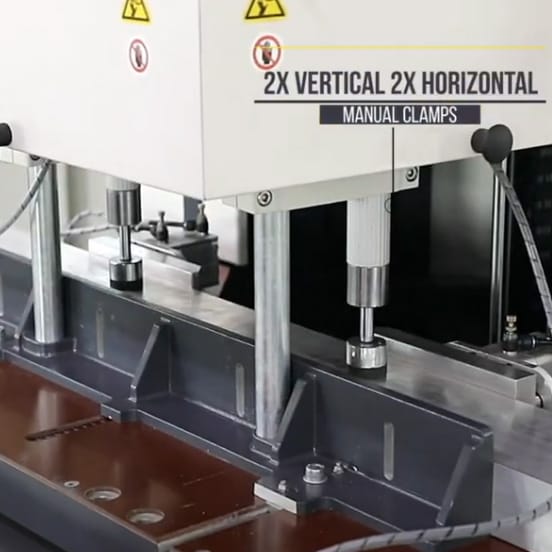

Pneumatic clamps

Standard V cutting set with Pneumatic clamps

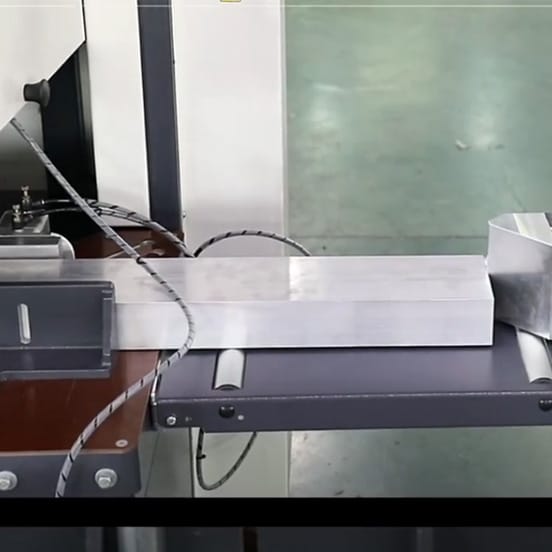

Standard Right and left conveyor (V cutting, 3 m

Optional Right and left conveyor (90° notching, 1.5 m)

Optional 90° notching set with Pneumatic clamps

Add to quote

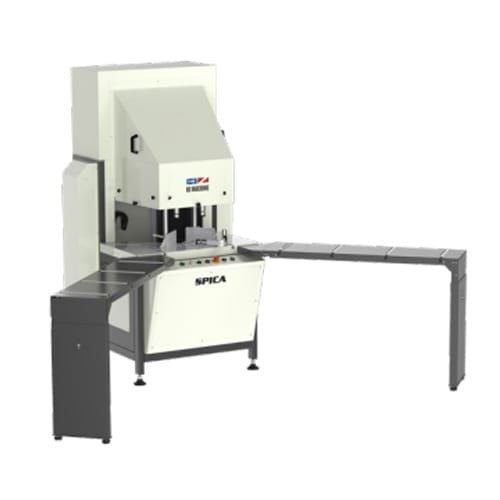

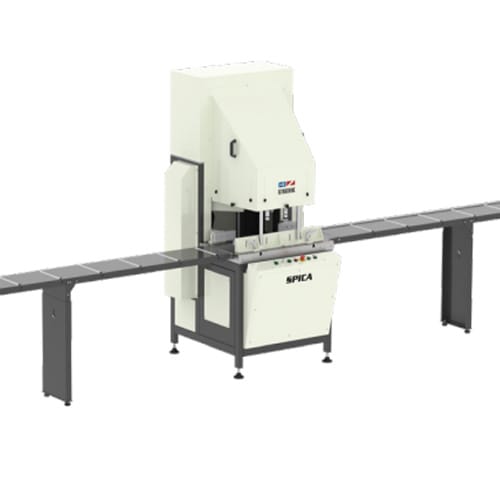

Oz Machinery Spica V Notch Saw

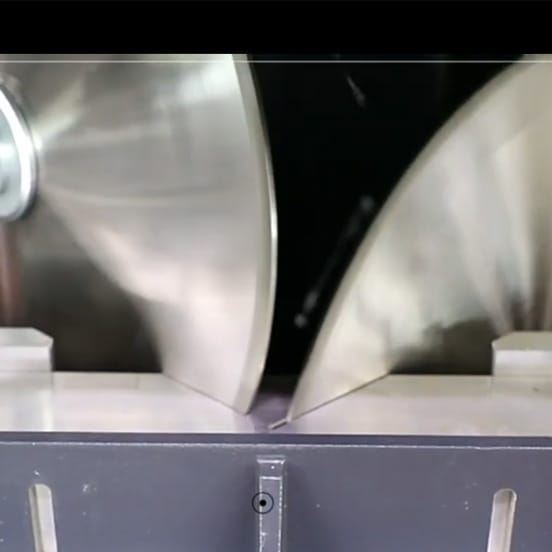

Large capacity vertical notching saw used for V cutting, arrow cutting, 45° cutting and 90° notching processes of
aluminium and plastic profiles. Optional equipment is required to produce the 90 degree end notch. These V notch saws take 500mm saw blades and can be used as a double mitre saw with added length measuring unit.

TECHNICAL	Unit	Data
Motor power	hp	4
Sawblade speed	rpm	2900
Sawblade diameter	mm	500
Sawblade bore	mm	30/32
Air consumption	L / min	55
Machine length	mm	1165
Machine depth	mm	1125
Machine height	mm	1980
Machine weight	kg	540
