Kesmak KLY 2 DT 650 - Addison Saws


Kesmak KLY 2 DT 650

Semi automatic NC dual mitre industrial Band saw
Low cost large capacity
Powered head rotation with NC setting
Full stroke hydraulic vice
Hydraulic band tensioning
Electric flood coolant system
Variable blade speed with inverter
Precise hydraulic down feed control
Mobile roller table x 2 - 2000mm with 7 rollers
Touch screen HMI
Hydraulic blade guides
Mobile blade guide arm
Powered swarf conveyor
LED machine light

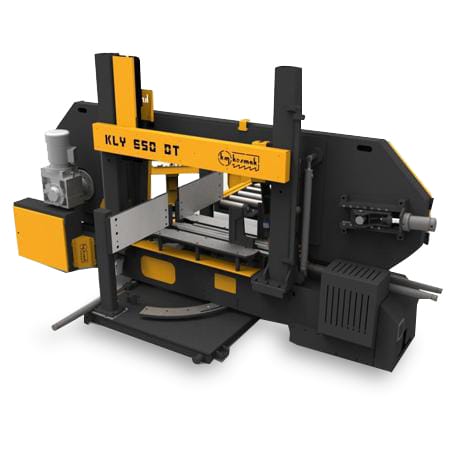

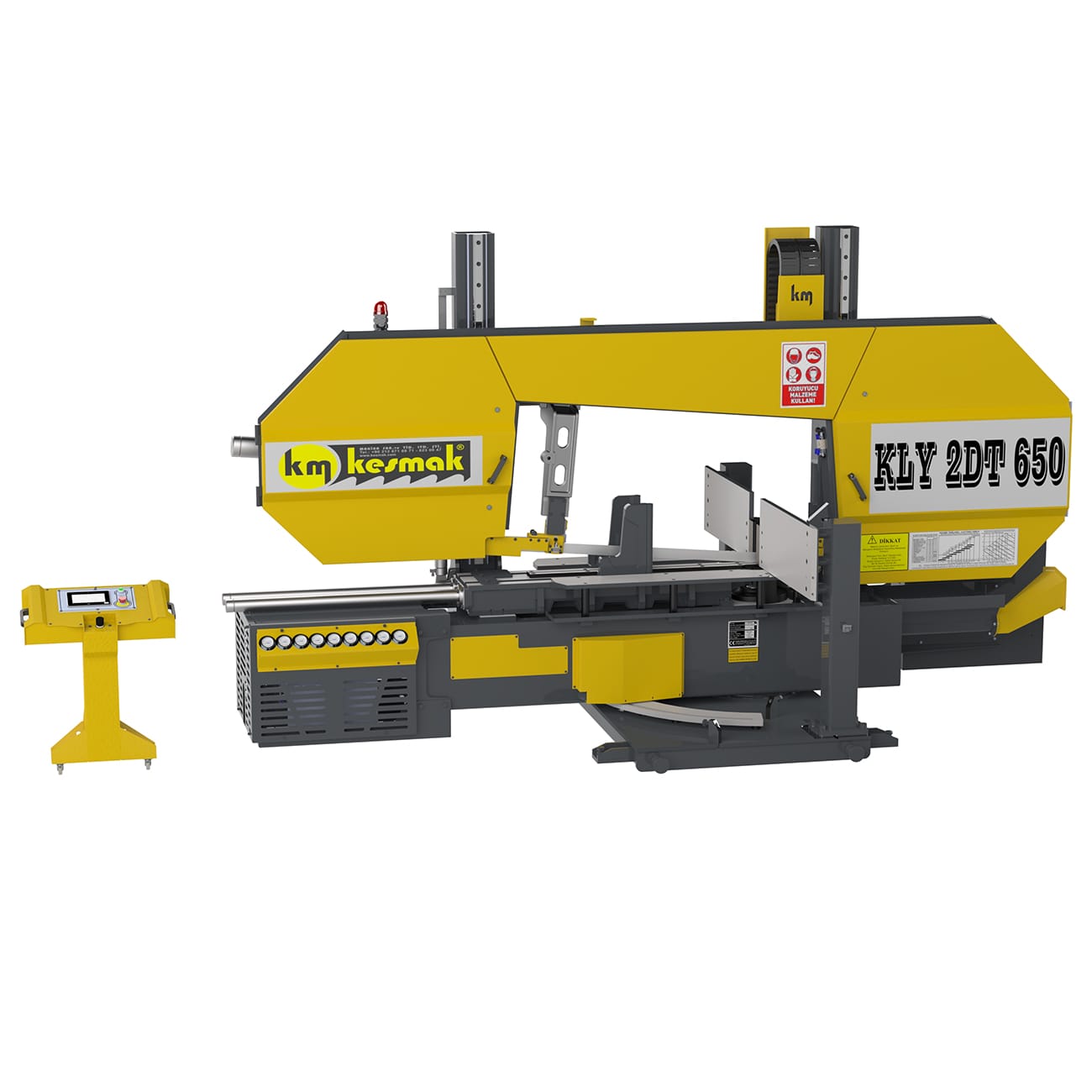

Kesmak KLY 2 DT 650 Industrial Band Saw

Semi-automatic bi-directional industrial band saw designed for large sectional material with powered NC setting of the cutting angles, heavily inclined sawblade for low-stress cutting of square section and flat stock.

Technical SpecificationsKLY 2DT 650
Capacity 90° – RoundØ 670 mm
Capacity 90° – Square650×650 mm
Capacity 90° – Rectangle650×1080 mm
Capacity ±45° – RoundØ 670 mm
Capacity ±45° – Square650×650 mm
Capacity ±45° – Rectangle650×670 mm
Capacity 30° – RoundØ 410 mm
Capacity 30° – Square410×410 mm
Capacity 30° – Rectangle650×410 mm
Blade Drive Motor5,5 kW
Hydraulic Pump Motor1,1 kW
Coolant Pump Motor0,12 kW
Rotation Motor0,55 kW
Swarf Conveyor Motor0,18 kW
Blade Size9000 x 54 x 1,6 mm
Feeding Height790 mm
Vice Maximum Opening1080 mm
Vice Minimum Closing95 mm
Vice Height350 mm
H x W x L2500 x 2200 x 4500 mm
Weight6500 kg
Laser Line

Either a quality Addison fit German battery unit or factory fit powered item.

Addimist System

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Vertical Clamp

Hydraulic vertical clamp for increased stability and to compensate bent material.

Curve Cutting Sensor

A device for measuring the vertical tolerance, if the user defined parameter is exceeded the machine with end the cutting cycle

Swarf Brush

Fully adjustable swarf brush, essential for maximising blade life and improving cut finish.

Roller Table

2 x 2000mm roller tables with 7 roller on each unit. (optional motorisation available)

Blade Guides

Hydraulic blade guides guarantee consistent and precise guide pressure and relax when the machine is not being used.

Hydraulic vice

Full stroke double cylinder hydraulic vice

Hydraulic Blade Tension

Cutting Control

7 ” PLC Touch Screen HMI for cutting data input… cutting angle required with powered head rotation using powerful servo drive. Piece qty selection

Arm Moving System with Vice

A very useful device that automatically synchronised the moving guide arm with the vice position. This guarantees optimum blade support at all times preserving blade life and optimising cutting performance.

Chip Conveyor

Helical type powered swarf removal system.

Hydraulic System

Individual control of the hydraulic pressure for every device within the machine.

Roller table Motorisation

Custom roller tables with added module for motorisation.
