Imet Velox 350 Circular Saw - Addison Saws


Imet Velox 350 Circular Saw

Manual pivot style | 2 Way Mitre to 45° | 120mm round capacity
2 speed 1800-3600 rpm
L/H head tilt for compound mitres
Secure manual clamping
Automatic blade lubrication
Optional pedestal with cabinet
Preparation for swarf extraction
24 months parts and 12 months onsite labour warranty

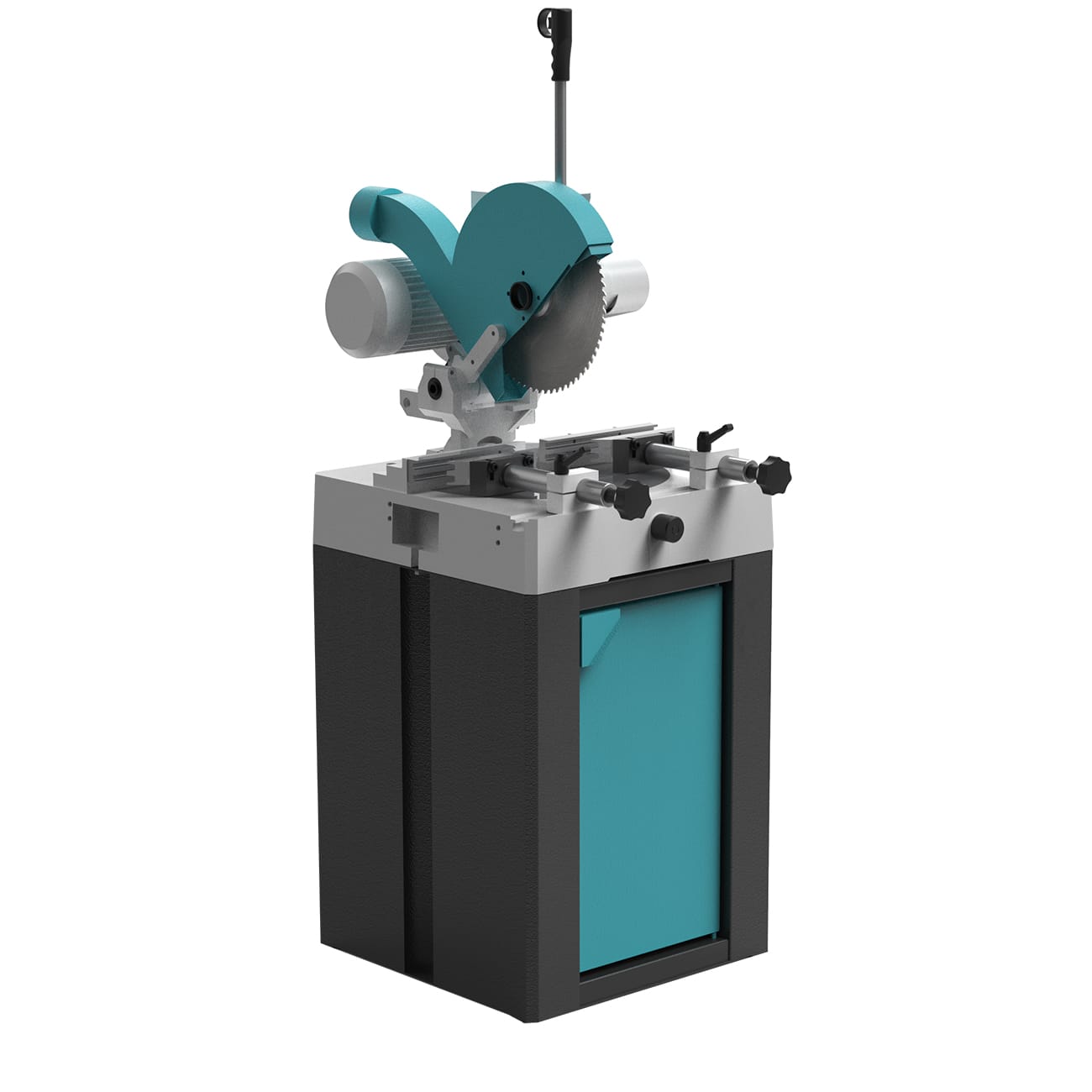

Imet Velox 350 circular saw for aluminium

VELOX 350 is dedicated to cutting profiles and solids in anodized aluminium and light alloys with maximum precision and cutting finish. In addition to the standard horizontal inclination from 45 ° left to 45 ° right, Velox machines also have a vertical head tilt of up to 45 ° and is equipped with automatic an automatic stop system at 0 °, 15°, 15°, 30 ° and 45 ° both to the right and to the left.

Cutting capacity at 0°Round:  120 mm
Square: 105 mm
Rectangular: 200 x 80 mm
Cutting capacity at 45° leftRound: 115 mm
Square: 100 mm
Rectangular: 150 x 80 mm
Cutting capacity at 45° rightRound: 115 mm
Square: 100 mm
Rectangular: 150 x 80 mm
Cutting capacity at 45° inclinedRound: 65 mm
Square: 60 mm
Rectangular: 180 x 50 mm
Cutting capacity at 0° – 400 mm bladeRound: 135 mm
Square: 120 mm
Rectangular: 200 x 110 mm
Cutting capacity at 45°left – 400 mm bladeRound: 130 mm
Square: 115 mm
Rectangular: 150 x 110 mm
Cutting capacity at 45°right – 400 mm bladeRound: 125 mm
Square: 110 mm
Rectangular: 150 x 100 mm
Blade diameter350 mm
Blade speeds1800-3600 rpm
Blade motor1.5/1.8 KW
Dimensions (without stand)610 x 880 x 990 mm
Weight163 kg

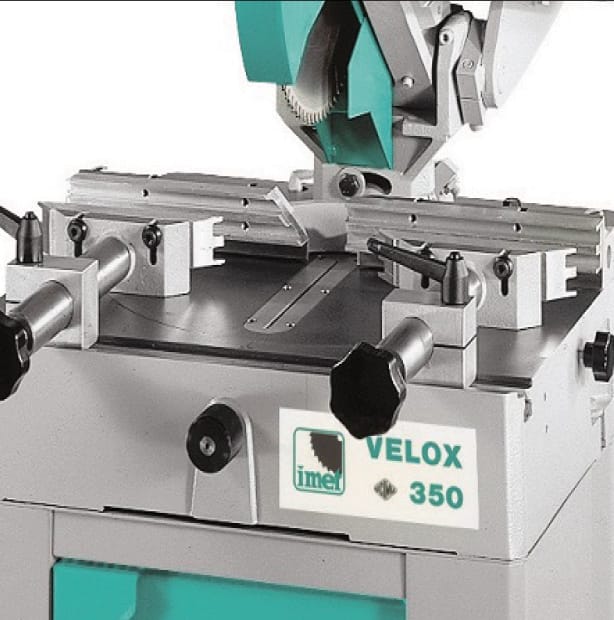

V Jaws

V jaws

Two pairs of cast iron V jaws to fittings bundles and round bars (max diameter 90 mm.) with tools to mount them

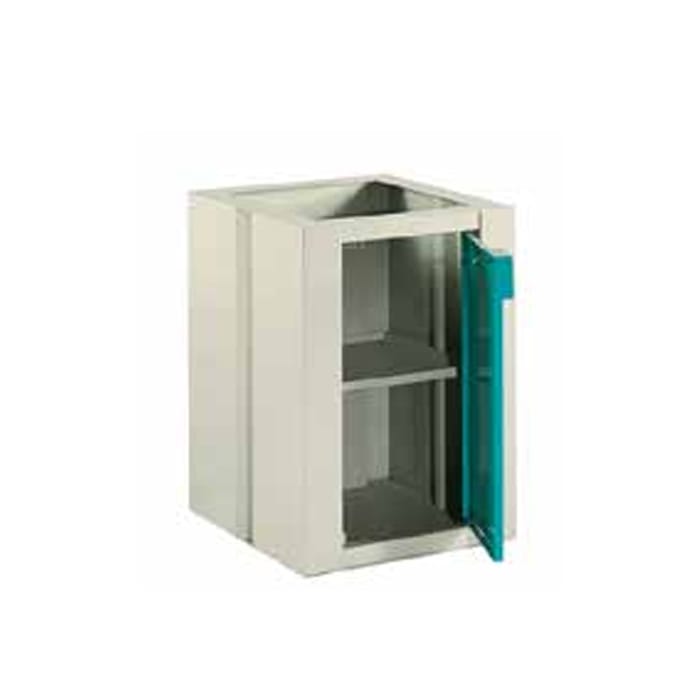

Floor Stand

IBS floor stand

IBS floor stand


Minimal lubrication system

Addimist Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply)

Swarf Extractor

Addison EW3 swarf extraction system, with steel container, and manual filter shaking system.
