Imet KS 450 Bandsaw

Semi-Automatic | Two Way Mitre | Rotating Cutting Table | Max Round Capacity 350mm
2 way swing head easy-mitre to 60° L&R
Free rotating cutting table on bearings
Multi position hydraulic main vice
Inverter variable speed 18-110 m/min
Vice pressure reducer for thin wall tube
Material height sensor & rapid approach
Precise hydraulic downfeed control
Blade breakage detection and shut off
Blade cleaning brush
2 year parts warranty + 12 months labour
6deg blade inclination at end of cut
Rapid low stress cutting of square sectional
Maximises blade life

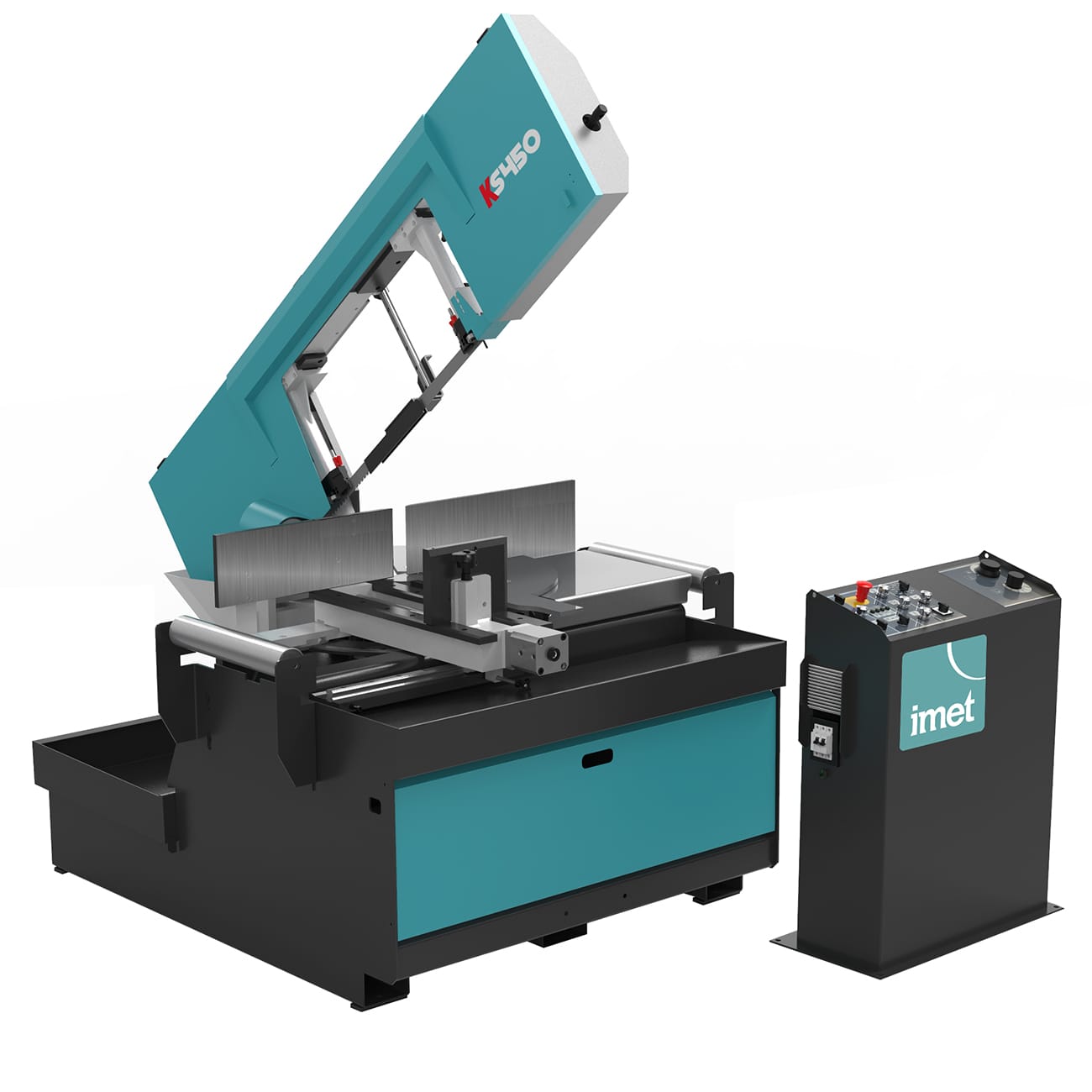

Imet KS 450 Bandsaw

A very high quality and precise machine ideally suited to sawing large sectional and tubular metal / steel profiles in a busy production environment. The unique design of the bow pivot which is situated below the centreline of the cutting table means that the saw blade is inclined at the end of the cut. This unique feature should not be underestimated as it makes cutting of square section and flat materials extremely efficient over standard design machines, greatly increasing cutting performance, extending blade life and reducing load on the machine components.

Cutting capacity at 0°Round: 350mm
Square: 330mm
Rectangular: 450x320mm
Cutting capacity at 45° right/leftRound: 330mm
Square: 320mm
Rectangular: 320x300mm
Cutting capacity at 60° leftRound: 210mm
Square: 200mm -Rectangular: 180x270mm
Cutting capacity at 60° rightRound: 160mm
Square: 150mm -Rectangular: 150x270mm
Cutting capacity at 0° for solids (C45)Round: 250mm
Cutting capacity (BUNDLES)Max. 400x250mm
Min. 160x40mm
Blade size4250x34x1,1mm
Blade motor2.2KW
Blade speed15-100 m/min
Working table (height)845mm
Powered Laser Line

Imet factory fit powered laser line.

Battery Laser Line

Quality German battery laser line. Addison fit item.

Bundle Cutting Device

Hydraulic device for bundle cutting (max. 400x250mmmin. 160x40mm).

Angle Digital Display

Digital display of the cutting angle

Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Roller Table Synchronisation

The synchronization system between the RTP line (unloading roller conveyors) and movement of the cutting angle.

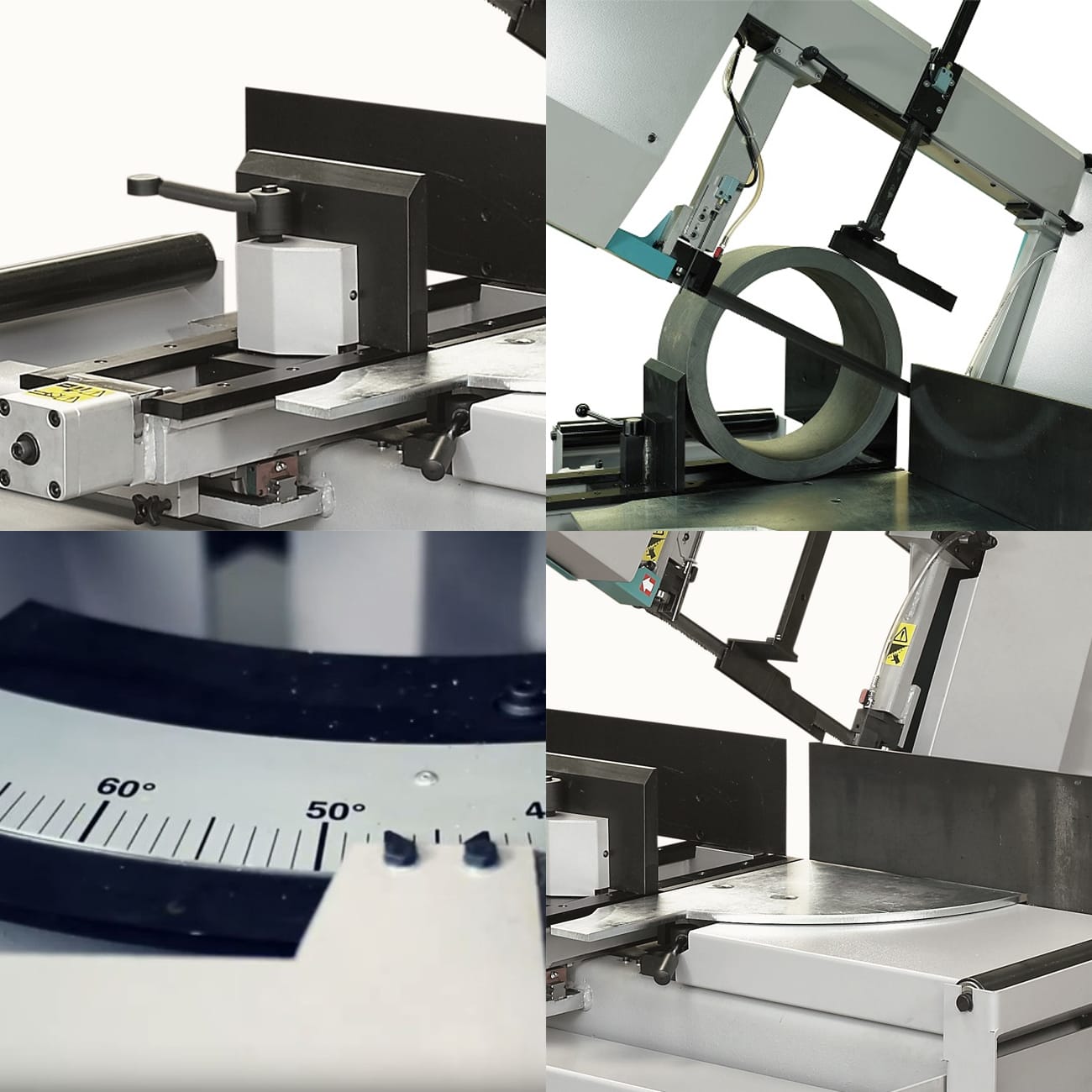

Quick set design with short acting cylinder and standard pressure reducer for thin wall material. The vice can be positioned either side of the saw blade depending on the mitre direction.

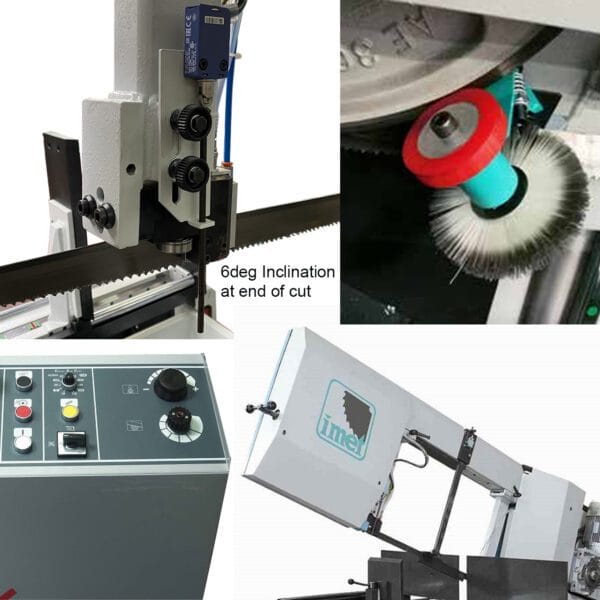

End of Cut Inclination

This is a massive benefit when cutting square section and flat plate and should not be under estimated. This design ensures the blade always has a line of least resistance through these materials, reducing cycle times – dramatically increasing blade life and reducing load on the machine components.

Cutting precision

The cutting precision is ensured by the over sized graduated scale. (optional digital display) There are automatic stops at 45°left, 0° and 45° right.

Material Detection Device

Device to automatically detect the material height, this unit allows fast approach to the material before switching to the selected speed for the cutting cycle. The blade is only raised 1mm above the cut piece to reduce cycle times.

Blade Cleaning Brush

Powered blade cleaning brush to enhance blade life and performance.

Cutting Control

KS 620 is equipped with a mobile control console with  LED confirmation for tensioning the blade, opening of the blade guard, motor thermal block and electrical tension. Through the control panel the operator can choose between 3 different ways of cutting end: return of the blade – not running – running or not returning after cut end.

Blade guide system

Very important to get this right in any bandsaw, heavy steel guide arms support a precision set of pre-twist roller bearings and solid carbide blade guides to give maximum precision and performance.

Loading/unloading roller table (Optional)

Roller conveyor suitable for the unloading and loading side. Length 1.5m, 1 pedestal, max loading 1500kg.

Unloading roller table (Optional)

Unloading roller table with digital display and manual movement : -RTL3KS600 Measuring length of 3m, 3 pedestals, max loading 3000kg; -RTL6KS600 Measuring length of 6m, 5 pedestals, max loading 6000kg.

Unloading roller table (Optional)

Unloading roller table with length stop and selection of the lengths by means of a keyboard Available: -RTP3KS600 Measuring length of 3m, 3 pedestals, max loading 3000kg; -RTP6KS600 Measuring length of 6m, 5 pedestals, max loading 6000kg.

Motorized loading roller table (Optional)

Loading motorised roller tables, with chain transmission and motor reducer managed by inverter, with mobile keyboard. Available : -3m, loading 3000kg; -6m, loading 6000kg; -9m, loading 9000kg; -12m, loading 12000kg.

Motorized unloading roller table (Optional)

Unloading motorized roller table (showing optional digital stop) with chain transmission and motor reducer managed by inverter, available only together with loading roller table. Available: -3m, loading 3000kg; -6m, loading 6000kg; -9m, loading 9000kg; -12m, loading 12000kg.

Digital reading length stop (Optional)

Digital reading length stop with manual positioning with automatic slowdown sensors, available only together with unloading motorized roller table
Measuring length 3m; Measuring length 6m; Measuring length 9m; Measuring length 12m

Motorized length stop (Optional)

Numerical control motorized measurement RR with fast approach and automatic slowdown of the piece (to be ordered coupled with automatic conveyors) -RR6S 6m measuring length -RR9S 9m measuring length -RR12S 12m measuring length

Vertical rollers (Optional)

Pair of containment vertical rollers, made in steel, max 2 pairs for each element 1,5 mt long.

Single vertical roller (Optional)

Single vertical roller, height of 250 mm. to prevent falls, max 2 each 1,5 m.
