Imet BS 350 SHI band saw

2 Way Mitre | Pneumatic Vice | 305mm Round Capacity | Rotating Table
Material height sensor & rapid approach
Carbide blade guides & blade cleaning brush
Positive mitre locations at 0°- 45°- 60°
Automatic saw head return after cut
Electric flood coolant system
Rotating cutting table
Variable downfeed control
Blade inclined at end of cut (see below)
AMP meter illustrating the blade condition
Machine status indicator monitoring
Blade tension
Full hydraulic control
Hydraulic vice

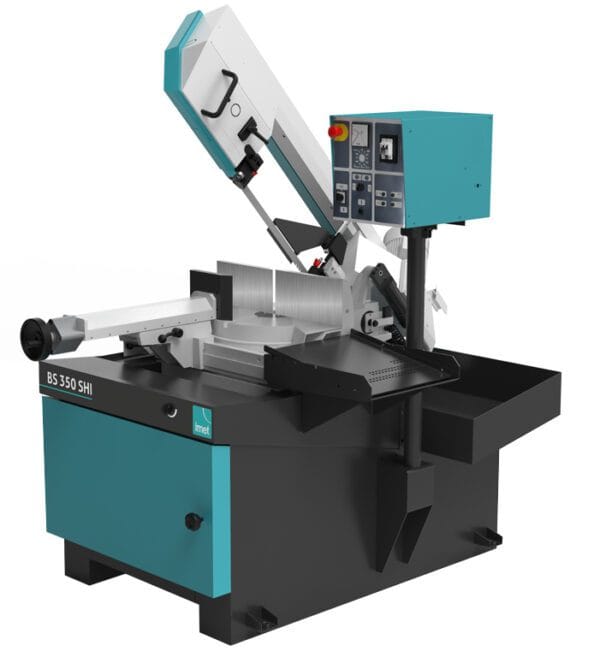

Imet BS 350 SHI Bandsaw

Heavy duty hydraulic, semi-automatic bandsaw with mitre cutting from 0° to 60° right and from 0° to 45° left.

Highly recommended for production situations, especially where square section or flat bar is being cut. The unique below-centre pivot point means the blade is inclined at the end of the cut offering the line of least resistance on these materials. The benefits are faster cut times, longer blade life, larger scope of what can be cut with each blade pitch, and less stress on the machine components. This feature should not be underestimated, and together with the robust construction and the quality components fitted all this makes the BS350 a class leading product.

Cutting capacity at 0°Round: 305mm
Square: 250mm
Rectangular: 350x200mm
Cutting capacity at 45° leftRound: 250mm
Square: 230mm
Rectangular: 230x200mm
Cutting capacity at 45° rightRound: 255mm
Square: 230mm
Rectangular: 230x200mm
Cutting capacity at 60° leftRound: 175mm
Square: 155mm
Rectangular: 170x100mm
Cutting capacity solid material (C45)Round 200mm
Cutting capacity bundle cuttingMax: 230x160mm
Min: 90x10mm
Blade motor1.5/2.2 KW
Blade motor with ESC speed variator2.2 KW
Blade speed37/74 m/min
Blade speed with ESC speed variator18/100 m/min
Blade size3370x27x0.9mm
Height of the work surface940mm
Imet Inverter

Electronic variable speed control (18-100 m/min)

Hydraulic Vertical Vice (bundle cutting)

Hydraulic device for bundle cutting. Max: 230x160mm
Min: 90x10mm

Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Vertical vice

Hydraulic vertical vice for unloading side only.

Powered Laser Line

Imet factory fit item.

Battery Laser Line

Quality German battery laser line. Addison fit item.

End of Cut Inclination

This is a massive benefit when cutting square section and flat plate and should not be under estimated. This design ensures the blade always has a line of least resistance through these materials, reducing cycle times – dramatically increasing blade life and reducing load on the machine components.

Automatic Material Detection

BS 350 SHI is equipped with an automatic device for detecting the cutting material height to optimize the cutting process: the device initiates a rapid approach until the material is detected, then switches to the selected cutting rate, at the end of cut the bow only raises 10mm above the workpiece.

Cutting Control

An amp meter is fitted to illustrate the cutting load. This can be used to determine the blade condition and machine stress. LED indicators show the machine status.

Cutting Table

BS 350 SHI is equipped with a wide rotating table of 460 mm diameter, mounted on a thrust ring with pre-loaded thrust bearing for easy rotation. The vice can be positioned either side of the sawblade depending on the mitre direction.

Saw Frame

The bow of BS 35SHI is manufactured in heavy cast iron with large band wheels 300mm diameter to reduce blade material stress. The tension of the band is 1700kg / cm2 for maximum precision and performance with front adjustment and control microswitch. The blade guard is hinged to facilitate the blade replacement .

Blade Cleaning Brush

Powered blade cleaning brush to enhance blade life and performance.

Blade guide system

Very important to get this right in any bandsaw, heavy steel guide arms support a precision set of pre-twist roller bearings and solid carbide blade guides to give maximum precision and performance.

Hydraulic vice

Hydraulic vice with adjustable guides free to move alongside the worktable, with quick motion and clamping.

RAB35S Bracket

Connecting element for roller table for the unloading side.

RTSPRW40 Roller Table

Loading / unloading roller table. 1st element length 2m, capacity 700kg.

RTSSEW40 2000mm extension table available

RTMPRW40 Manual Measuring Table

Unloading roller table with metric rod, measurement feedback. 1st element, length 2mt , capacity 700kg

RTMSEW40 2000mm extension table available

RTP3W40 NC Measuring Table

3000mm NC servo drive measuring table. 5.7″ Touch screen HMI for cutting data input. Up to 20 different cutting lengths. Automatic 50mm retreat function to allow easy unloading of the cut piece.

Optional lengths:-

RTP6W40 6000mm

RTD2LW40 Manual Digital Measuring Table

2000mm Manual positioning with handwheel and digital display of the cutting length. Pneumatic locking on position and 50mm retraction to allow easy unloading of the cut piece.

Optional lengths:-

RTD4LW40 4000mm
RTD6LW40 6000mm

R1-W30 Vertical Rollers

Pair of containment vertical rollers 300 mm, made in steel max 2 pairs for each element 2m long, to use without rollers cover (only for RTS )

Addison Roller Table

3000mm available as plain support table or with manual measuring stop and metric scale. Modules can be joined for longer lengths.
