Imet Velox 350-AF-NC - Addison Saws


Imet Velox 350-AF-NC

Pivot style automatic circular saw | 520mm NC feeder | 350mm blade
New Multi-function colour touch screen HMI
Program jobs remotely and transfer to machine (optional)
Remote access for reporting and machine operation (optional)
Individual job material optimisation
Rapid Programming at machine
Full high level on screen diagnostics
Manual set Left/right mitre cuts and one way tilt for compound cuts
Horizontal and vertical quick action pneumatic clamps
Mist spray blade lubrication (option for Addimist pure oil micro mist)
Optional V jaws for bundle cutting of small tubes

CNC automatic circular machine for aluminium

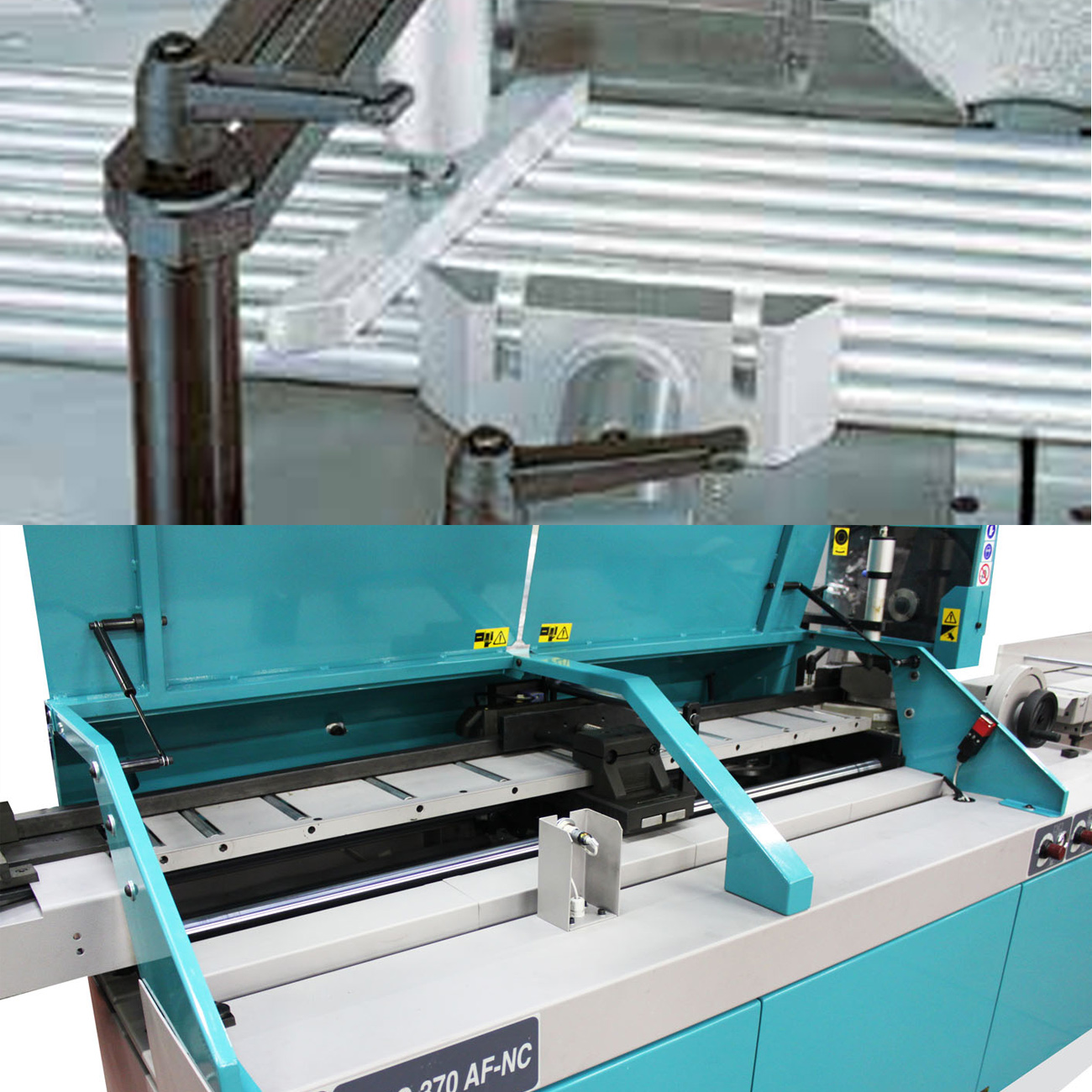

VELOX 350 AF-NC  automatic numerical control sawing machine, ideal for cutting aluminium, VELOX 350 AF-NC performs cuts from 45 ° left to 45 ° right and inclined up to 45 ° and is suitable for cutting of tubes and full sections. The head angle is manually set.

Cutting capacity at 0°Round: 120mm
Square: 105mm
Cutting capacity at 45° leftRound: 115mm
Square: 100mm
Rectangular: 150x80mm
Cutting capacity at 45° rightRound: 115mm
Square: 100mm
Rectangular: 150x80mm
Cutting capacity at 45° inclinatedRound: 65mm
Square: 60mm
Rectangular: 180x50mm
Blade speed3600rpm
Blade diam.350mm
Blade motor2.2KW
Feeder stroke520mm
Min. scrap end355mm
Min. lenght in automatic cycle15mm
Worktable height930mm
Coolant tank capacity40l
SLB Bar Loader

6000mm or 3000mm

Bar loader for SIRIO 370 AF-NC: suitable for tubes (20mm-90mm), square (80x80mm), for solids (max 50mm).The structure in metal profiles, the front protection in tubular and perforated sheet guarantee maximum protection for the operator. Fully automatic, the management system allows you to to optimize your job.

Bar Reduction Kit

Bar loader reduction kit(FROM 20 TO 10MM) for bar loader

Bundle Loader

The bundle loader allows you to load a bundle from 48mm to 90mm max. by chain transmission Managed by CNC numerical control, it is compatible with CNC automatic disc machines and allows to load up to 3 tons of bars with a length of 6m.

Industry 4.0


All IMET automatic sawing machines can be connected to the company network via modem and ethernet cable: SAWFACTORY software is also available for remote monitoring, assistance, programming and management from remote of the cutting process. The software allows to transfer data and programs from the PC (where it is created the program) to the machine via USB. Discover SAWFACTORY:


Minimal lubrication system

Addimist Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply)

Feeder Extension

Longer feeder of 1200mm for VELOX AF-NC for automatic production.

V Jaws

Two pairs of cast iron V jaws to fittings bundles and round bars (max diameter 90 mm.) with tools to mount them

Swarf Extractor

Addison EW3 swarf extraction system, with steel container, and manual filter shaking system.
