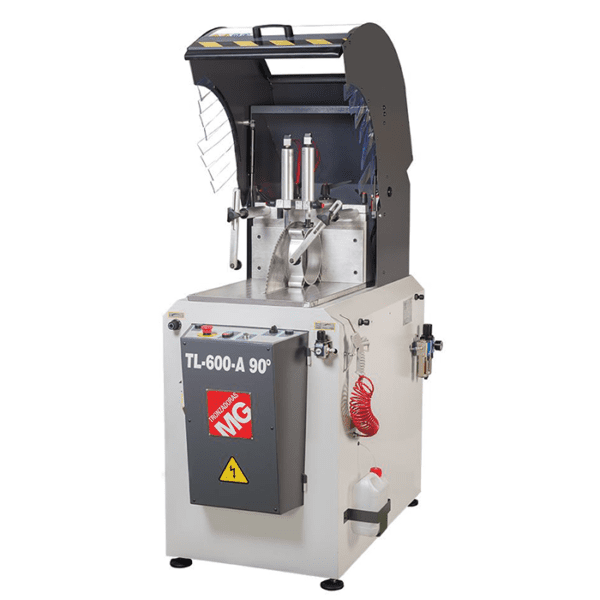

MG TL 600-90 aluminium saw image

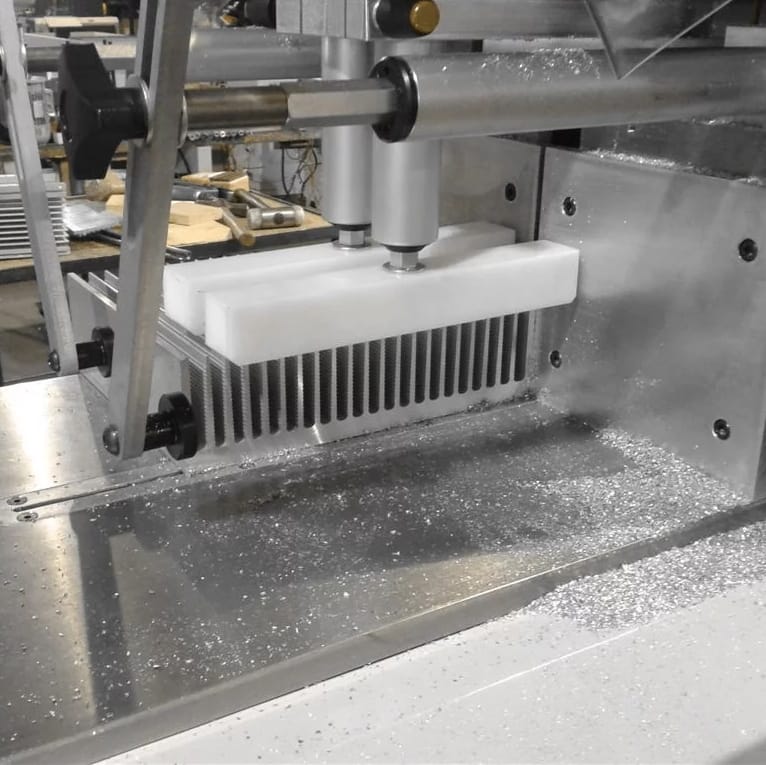

Tronzadoras 700-90 Cut Material image

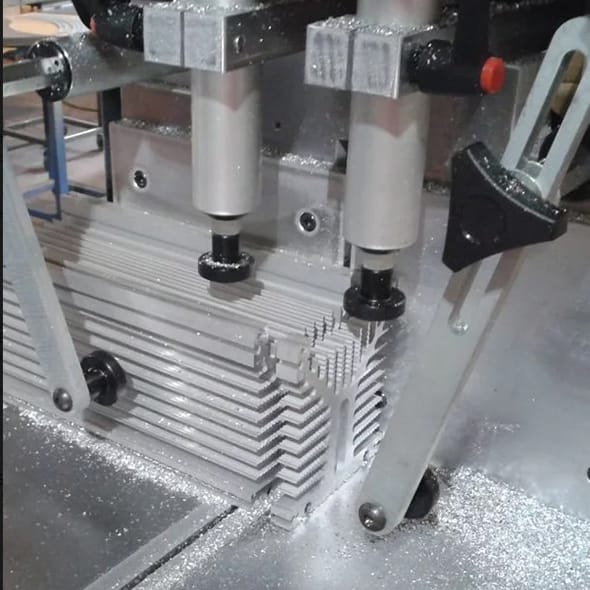

Tronzadoras MG TL 600-90 Aluminium Saw - Image 3

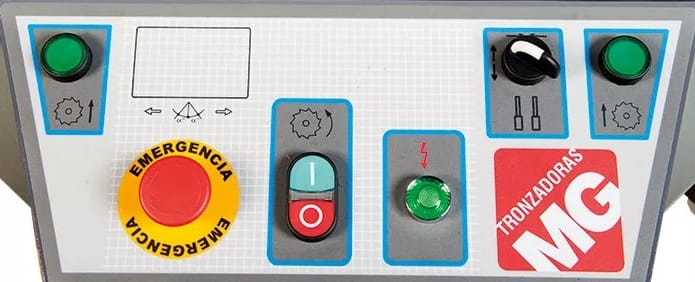

Image of TL control Panel

Tronzadoras MG TL 600-90 Aluminium Saw

Designed for large heavy extrusions
Massive 400mm width capacity
Safety Brake motor
Including saw blade
2 x vertical pneumatic vices
2 x horizontal pneumatic vices
Scroll down for specification, optional extras, videos & more ⬇️
Add to quote
Category:

Tronzadoras MG TL 600-90 large capacity cold saw

Automatic mitre cutting-off machine for 90 degree cutting of large aluminium profiles, with a Ø600 TCT rising saw blade controlled by a manual double button press to increase operator safety.

Technical TL-600-90
Capacity 90° Round 230 mm
Square 210 x 210 mm
Rectangle 350 x 110 mm
Motor 5,5 HP
Blade Diameter  Ø 600 mm
Blade Speed 3000 RPM
Blade Axis Diameter 50 mm
Maximum Cutting Height 230 mm
Weight 450 kg
Dimensions 820 x 1300 x 1660 mm
Working Height 970 mm
Cutting Chart:

MG TL 600 cutting capacity chart image



Tronzadoras MG saws square logo

Addimist system image
Addimist

Pure oil micro-mist blade lubrication system recommended over the standard soluble system, as it delivers a high performance neat oil in minute highly controlled doses. Giving a cleaner working environment with no odours or risk of skin irritation sometimes connected with soluble fluids. Each dose cane be scaled by adjusting the size of each pulse and the frequency of each pulse.

Mardon EW 3 Swarf Extractor iamge
EW-3 Extractor

Complete swarf extraction system taking from both above and below the cutting table, highly efficient and fully compliant to handle aluminium, pvc, brass, wood, copper and composite materials. The steel container is removable for easy emptying, and the filter bags are maintained with either the standard manual shake lever or the optional pneumatic shake.

Digital Angle Display

Via linear encoder

Automatic OPEN/CLOSE hood

Laser line

Connection For Vacuum Cleaner

ON/OFF

LED Lighting

Speed (RPM) Inverter

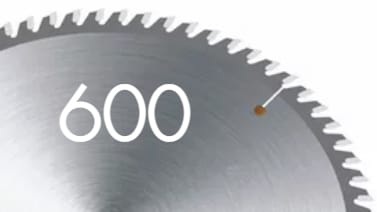

600mm sawblade image
Saw Blade

Ø600 mm TCT blade saw included

Standard feature icon
5HP (4,1kW) Brake-motor

Standard feature icon
Pneumatic Clamps

2x Pneumatic vertical clamps

2x pneumatic horizontal clamps

Standard feature icon
2x Vacuum Cleaner Outlets

Diameter of 120 mm

Standard feature icon
Bimanual control

Dual button push to activate blade raise for increased operator safety.

Standard feature icon
Twin Pressure (low-HI) System For Clamping Cylinders

Standard feature icon
Adjustable Back Fence

Increase cutting range by adjusting the back fence.

Standard feature icon
Adjustable cutting speed

Standard feature icon
Pneumatic lubrification system

Standard feature icon
Polycarbonate shield

MG Autopos-Measuring System
MG Autopos-Measuring System

Tronzadoras MG Autopos 3 – 4 – 6 roller table with NC positioned material stop, touch screen HMI and memories for storing multiple jobs. There is also a version with USB for easy office programming.

MG TM-Measuring System Image
MG TM-Measuring System

Tronzadoras MG TM 3 – 4 – 6 roller table with hand-wheel positioned material stop and battery LCD display of the selected cutting length. Fitted with soft coated rollers to protect the material surface finish.

Mg TMGD Measuring system
MG TMDG-Measuring System

Tronzadoras MG TMDG 3 – 4 – 6 roller table with hand-wheel positioned material stop, and powered digital display of the cutting length and higher accuracy than the TM version.

TL 600-90 Data Sheet
