Pressta Eisele Profilma 600R/XL

Automatic Radial design | NC incremental feed | for 90deg cuts | 600mm dia sawblade | Kerf seperation
Radial cutting action with large 350 x 210 capacity
Ball screw feed of the sawblade with DC motor

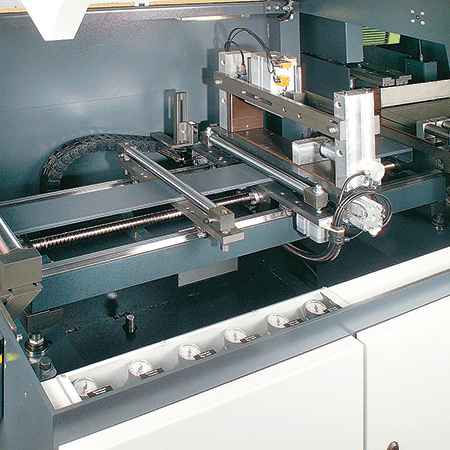

NC digital setting of the cut length with ball screw feed
R version with 1000mm and XL with 2000mm feeder stroke
Digital setting of the number of pieces to be cut & feed length

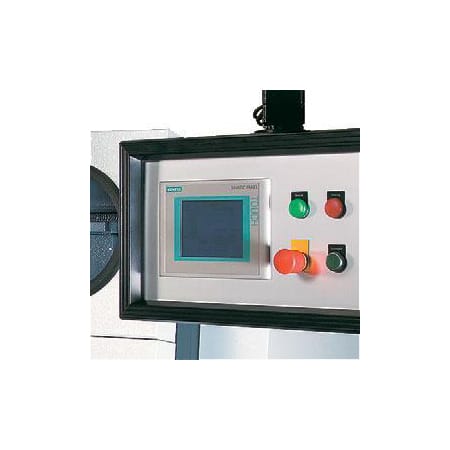

5.7"Touch screen control system
Piece seperation before blade retracts
Profile lifting to protect surface finish
Variable blade speed 2000-3500 rpm
Enclosed cutting zone with interlocked hood
Blade stroke limiter for fast repetition cutting

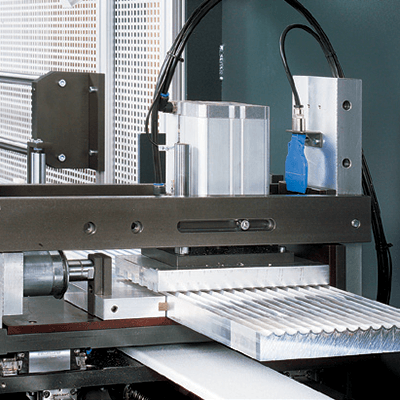

Secure horizontal & vertical pneumatic clamping
Mist spray blade lubrication
Preperation for swarf extraction
Option for magazine cross loader

Pressta Eisele Profilma 600 R/XL

The ultimate in high speed, high precision sawing of small non ferrous metal components using TCT sawblades for minimum material wastage and optimum surface finish. The Profilma machines are the popular choice of some of the worlds largest extruders and aluminium processors and are recognised for delivering extreme levels of precision and performance under demanding conditions.

Technical DataProfilma 600 R / XL
Max cutting capacity320mm wide x 210mm high
Feeder strokeR= 1000mm   XL= 2000mm
Sawblade diameter600mm
Remaining piece dimension90mm
Motor power9.2kw
Blade speedVariable 2000 to 3500 rpm
Blade lubricationPure oil micro-mist



EW-3 Extractor

Complete swarf extraction system taking from both sawblade chambers, fully compliant to handle aluminium, pvc, brass, wood, copper and composite materials. The steel container is removable for easy emptying, and the filter bags are maintained with either the standard manual shake lever or the optional pneumatic shake.
