Pressta Eisele Profilma 501E

Automatic NC incremental feed saw | for 90deg cuts | 500mm dia sawblade & Kerf separation
NC digital setting of the cut length with ball screw feed
Digital setting of the number of pieces to be cut
Stock/cutpiece seperation before blade return
Material out detection
Short 75mm last piece
Cutting length tollerance = +/- 0.1mm
Max feeder stroke 600mm with multi index to 9.9m
Hydropneumatic feeding of the sawblade
Precise control of the cutting feed rate
Enclosed cutting zone with interlocked hood
Blade stroke limiter for fast repetition cutting
Secure horizontal & vertical pneumatic clamping
Mist spray blade lubrication
Preperation for swarf extraction

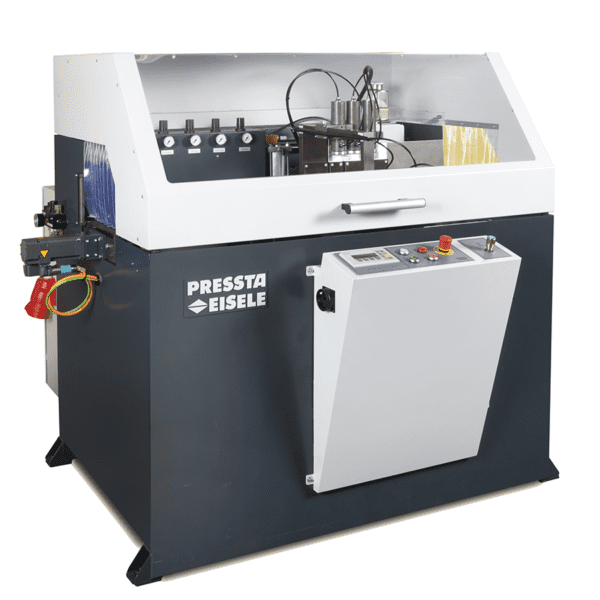

Pressta Eisele Profilma 501 E

High speed high precision sawing of small non ferrous metal components using TCT sawblades for minimum material wastage and optimum surface finish. The Profilma machines are the popular choice of some of the worlds largest extruders and aluminium processors and are recognised for delivering extreme levels of precision and performance under demanding conditions.

Technical DataProfilma 501 E
Motor power7.5kw
Blade dimension / rpm5400mm / 2850 rpm
Cutting speed75 m/sec
Kerf relief system / anti back cut systemNo
Feeder stroke2.5mm to 600mm
Working pressure6-8 bar
Weight480kg
Dimensions1750 x 1410 x 1510mm
EW-3 Extractor

Complete swarf extraction system taking from both sawblade chambers, fully compliant to handle aluminium, pvc, brass, wood, copper and composite materials. The steel container is removable for easy emptying, and the filter bags are maintained with either the standard manual shake lever or the optional pneumatic shake.
