Pressta Eisele Profilma 501 / 501-SE

Automatic feed saw for 90deg cuts | 600mm feed length | 500mm Blade
Manual setting of the cut length with micrometre
Digital setting of the number of pieces to be cut
SE model with stock/cutpiece seperation before blade return
Material out detection
Short 75mm last piece
Cutting length tollerance = +/- 0.1mm
Max feeder stroke 600mm with multi index to 9.9m
Hydropneumatic feeding of the sawblade
Precise control of the cutting feed rate
Enclosed cutting zone with interlocked hood
Blade stroke limiter for fast repetition cutting

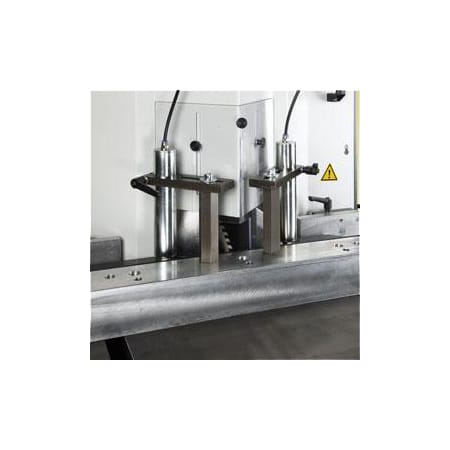

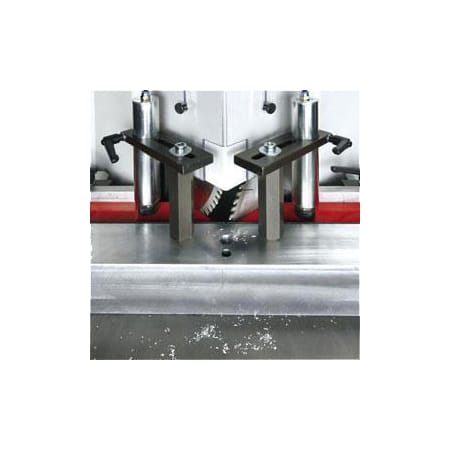

Secure horizontal & vertical pneumatic clamping
Mist spray blade lubrication
Preperation for swarf extraction
500mm dia sawblade

Pressta Eisele Profilma 501 / 501 SE

High speed high precision sawing of small non ferrous metal components using narrow kerf solid carbide sawblades and TCT sawblades for minimum material wastage and optimum surface finish. Ideal for high precision component production of short and long lengths

Technical DataProfilma 501Profilma 501-SE
Motor power7.5kw7.5kw
Blade dimension / rpm5400mm / 2850 rpm5400mm / 2850 rpm
Cutting speed75 m/sec75 m/sec
Kerf relief system / anti back cut systemNoStandard
Feeder stroke2.5mm to 600mm2.5mm to 600mm
Working pressure6-8 bar6-8 bar
Weight480kg480kg
Dimensions2700 x 1300 x 1600mm2700 x 1300 x 1600mm











EW-3 Extractor

Complete swarf extraction system taking from both sawblade chambers, fully compliant to handle aluminium, pvc, brass, wood, copper and composite materials. The steel container is removable for easy emptying, and the filter bags are maintained with either the standard manual shake lever or the optional pneumatic shake.
