Pressta Eisele Profilma 200 P + E - Addison Saws

Categories

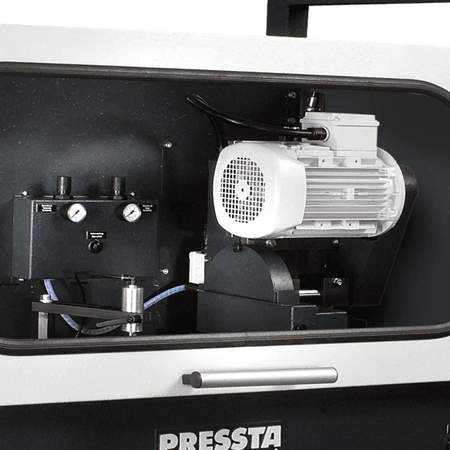

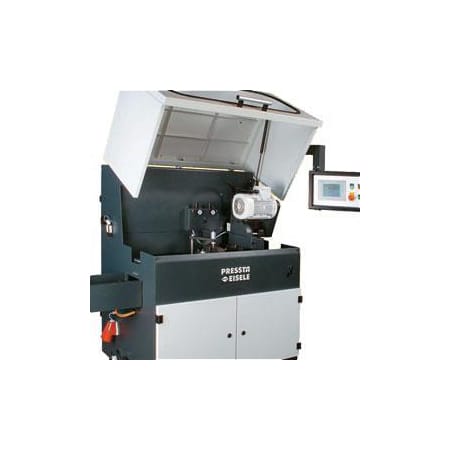

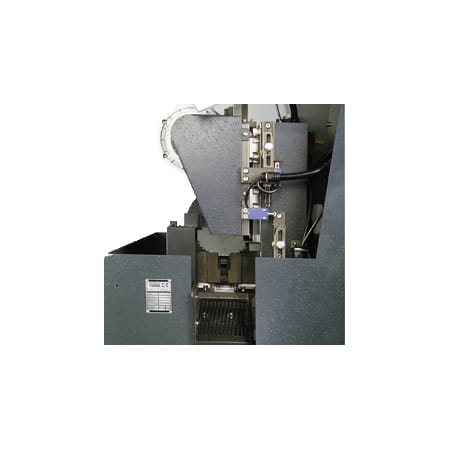

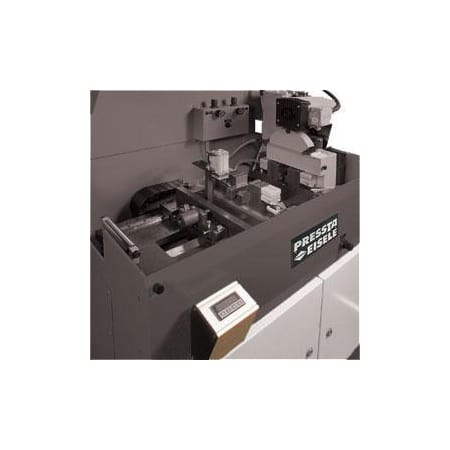

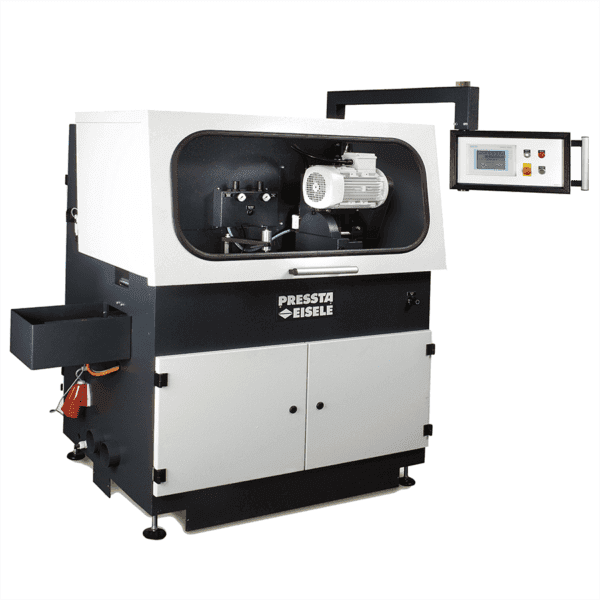

Pressta Eisele Profilma 200 P + E

Ultra high precision automatc saw | 80 to200mm Blade |
Radial cutting action
P version with pneumatic feeder
E version ball screw feed with DC motor
E version 5.7"Touch screen control system
E version Piece seperation before blade retracts
Variable blade speed 1500-3750 rpm
Enclosed cutting zone with interlocked hood
Blade stroke limiter for fast repetition cutting

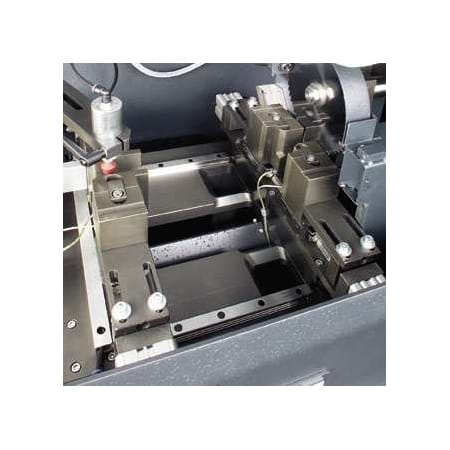

Secure horizontal & vertical pneumatic clamping
Mist spray blade lubrication
Preperation for swarf extraction

Pressta Eisele Profilma 200 P & E

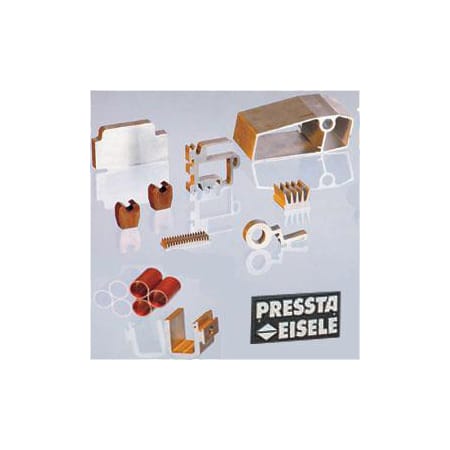

High speed, high precision sawing of small non ferrous metal components using narrow kerf solid carbide sawblades and TCT sawblades for minimum material wastage and optimum surface finish. Ideal for high precision small component production.

Technical DataProfilma 200 P & E
Max cutting capacity50 x 50mm to 110mm x 110mm
Feeder stroke500mm
Sawblade diameter80mm to 200mm
Remaining piece dimension55mm
Motor power4.2kw
Blade speedVariable1500 to 3750 rpm
Blade lubricationPure oil micro-mist



EW-3 Extractor

Complete swarf extraction system taking from both sawblade chambers, fully compliant to handle aluminium, pvc, brass, wood, copper and composite materials. The steel container is removable for easy emptying, and the filter bags are maintained with either the standard manual shake lever or the optional pneumatic shake.
