Pure oil micro-mist blade lubrication system recommended over the standard soluble system, as it delivers a high performance neat oil in minute highly controlled doses. Giving a cleaner working environment with no odours or risk of skin irritation sometimes connected with soluble fluids. Each dose cane be scaled by adjusting the size of each pulse and the frequency of each pulse.

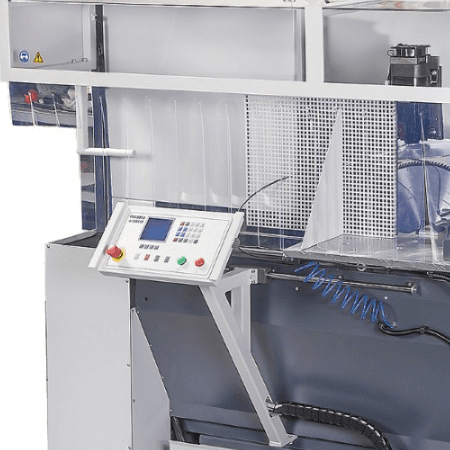

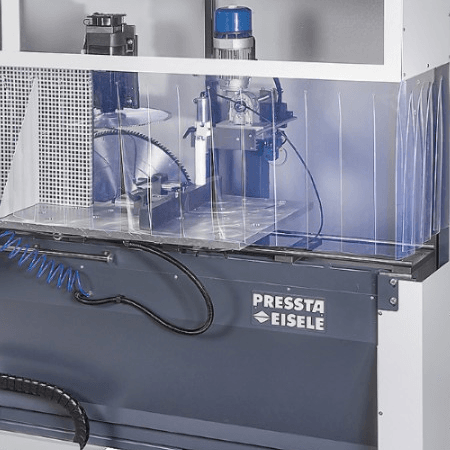

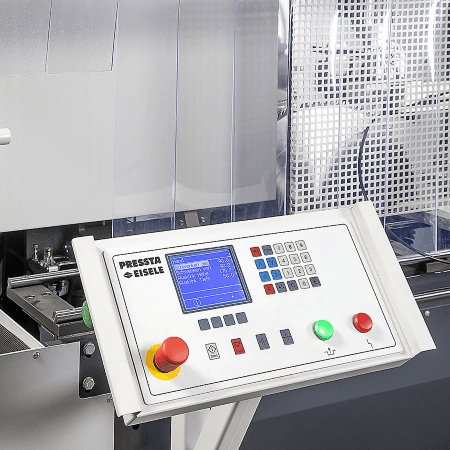

The daddy of all notching saws, fully NC controlled with all axis set by the control panel and positioned by powerful DC servo motors and reduction gearboxes. Most commonly used within the curtain walling industry for notching out the transom and mullion end notching. Although this machine was conceived for this particular job there are many other applications that it has been specified for.
| Technical Data | Prisma 650E |
| Horizontal notch depth | 210mm |
| Vertical notch depth | 262mm |
| Notch height setting | Powered |
| Vertical blade swivel | Powered 90° -60° +30° (front/to back) |
| Horizontal blade swivel | Powered 90° +45° -45° |
| Material depth stop | Powered |
| Material fence | Manual with scale 30° -90° -45° |

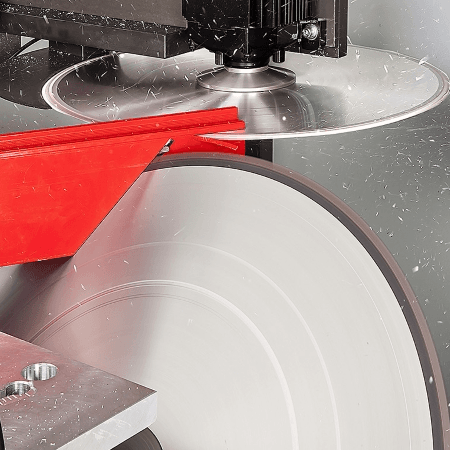

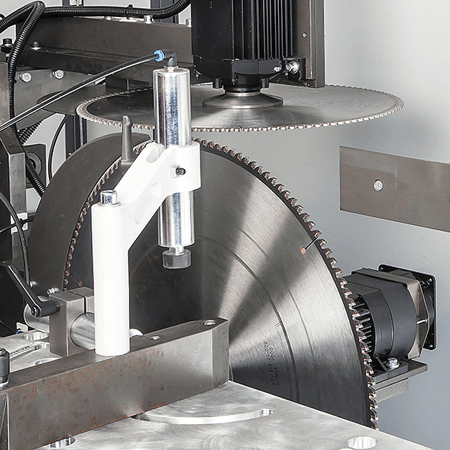

| Horizontal sawblade dia | 550mm |
| Vertical sawblade dia | 650mm |
| Motor power | 3kw each |
| Machine weight | 1400kg |
| Dimensions LxWxH | 2800mm x 1800mm x 1800mm |
Roller support table with manual set material stop and graduated scale. 3000mm long with 280mm wide rollers (100kg point loading) available with steel rollers and neoprene coated rollers for aluminium and materials with a sensitive surface finish. Adjustable support legs are available together with connection brackets. The modules can be joined for longer lengths.
