Pressta Eisele Prisma 500 Notching Saw

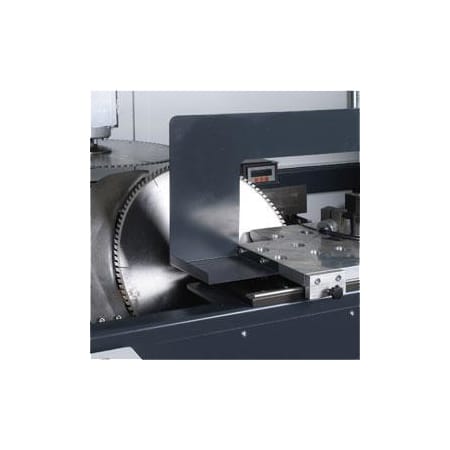

500/550mm diameter sawblades

Handwheel setting of the blade tilt angles

Vertical saw blades tilt +/- 30°

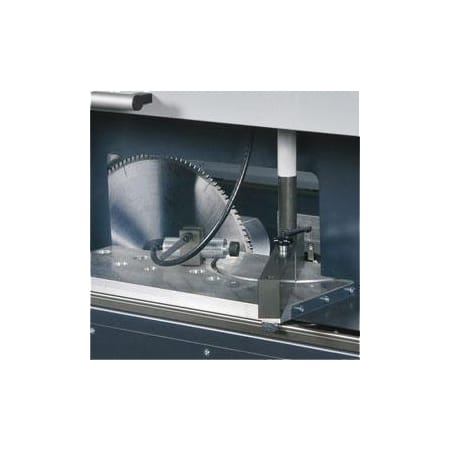

Swivel mitre fence +/- 30°

Handwheel setting of the cutting table height

Fully enclosed cutting zone

Variable blade feed rate

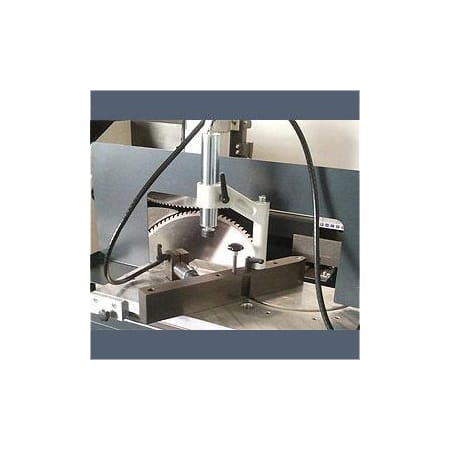

Pneumatic material clamping

Mist spray blade lubrication

Swivel mitre fence +/- 30°

Category: Notching Saws

ADDIMIST SPRAY MIST cutting fluid system

Addimist

Pure oil micro-mist blade lubrication system recommended over the standard soluble system, as it delivers a high performance neat oil in minute highly controlled doses. Giving a cleaner working environment with no odours or risk of skin irritation sometimes connected with soluble fluids. Each dose cane be scaled by adjusting the size of each pulse and the frequency of each pulse.

Pressta Eisele Prisma 500

Most commonly used within the curtain walling industry for notching out the transom and mullion end notching. Although this machine was conceived for this particular job there are many other applications that it has been specified for.

Variable notching possibilities for mullion and transom combinations, e.g. curtain walls, winter garden, sky lights and special designs
Manual adjustment of the horizontal blade max. 20mm to the front to cut slots
Notch variation: rectangle, one sided angular, two sided angular, three sided angular
Notch dimensions: 185mm horizontal, and 210mm vertical at (90°)
Profile dimensions: height maximum 280mm, width maximum 300mm

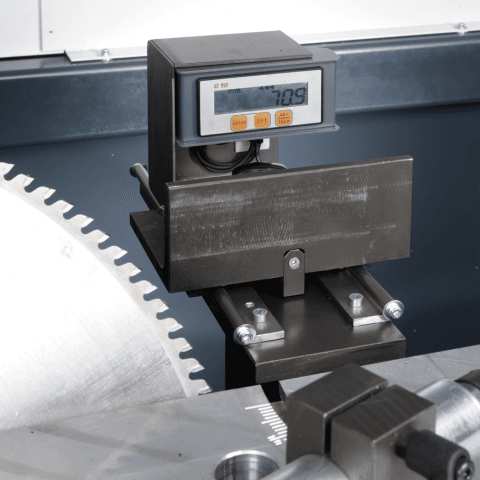

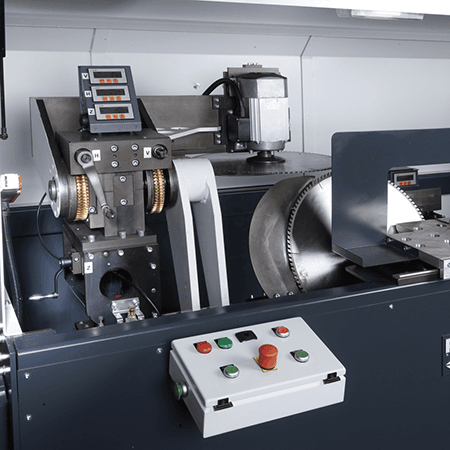

Manual adjustment of saw blade height, positioning via mechanical digital display; electronic display optional

Swivelling range vertical saw blade 30°-90°-30° (back/mid/front) positioning via mechanical digital display
Swivelling range of both, horizontal and vertical saw blade, 30°-90°-30°, positioning by mechanical digital display
Material fence on the table swivelled left / right 30°-90°-30°, positioning by scale
Depth stop adjustable via hand wheel and slide, read out by mechanical digital display, manual clamping
Semi-automatic precise and safe notching due to the work piece is fixed on the table during the cut

Technical Data	Prisma 500
Vertical sawblade dia	550mm
Horizonal sawblade dia	500mm
Max horizontal notching depth	185mm
Max vertical notching depth	210mm
Max profile height	280mm
Max profile width	300mm
Sawblade tilting range (vertical)	-30° 90° +30°
Fence swivel range	-30° 90° +30°
Motor power	3kw (2800rpm)
Machine weight	1150kg
Footprint	2400mm x 1750mm

Additrack 3MS roller tracking table

Additrack 3MS

Roller support table with manual set material stop and graduated scale. 3000mm long with 280mm wide rollers (100kg point loading) available with steel rollers and neoprene coated rollers for aluminium and materials with a sensitive surface finish. Adjustable support legs are available together with connection brackets. The modules can be joined for longer lengths.
