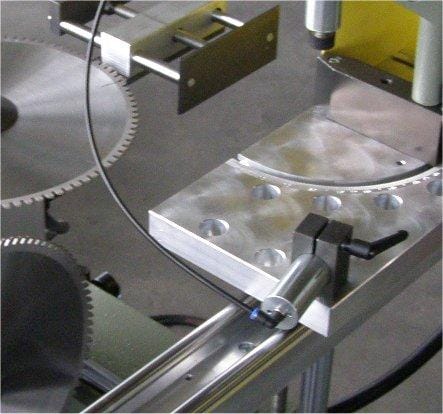

Pressta Eisele Prisma 400

400/450mm diameter sawblades
Handwheel setting of the blade tilt angles
Vertical saw blades tilt +/- 30°
Swivel mitre fence +/- 30°
Handwheel setting of the cutting table height
Fully enclosed cutting zone
Variable blade feed rate

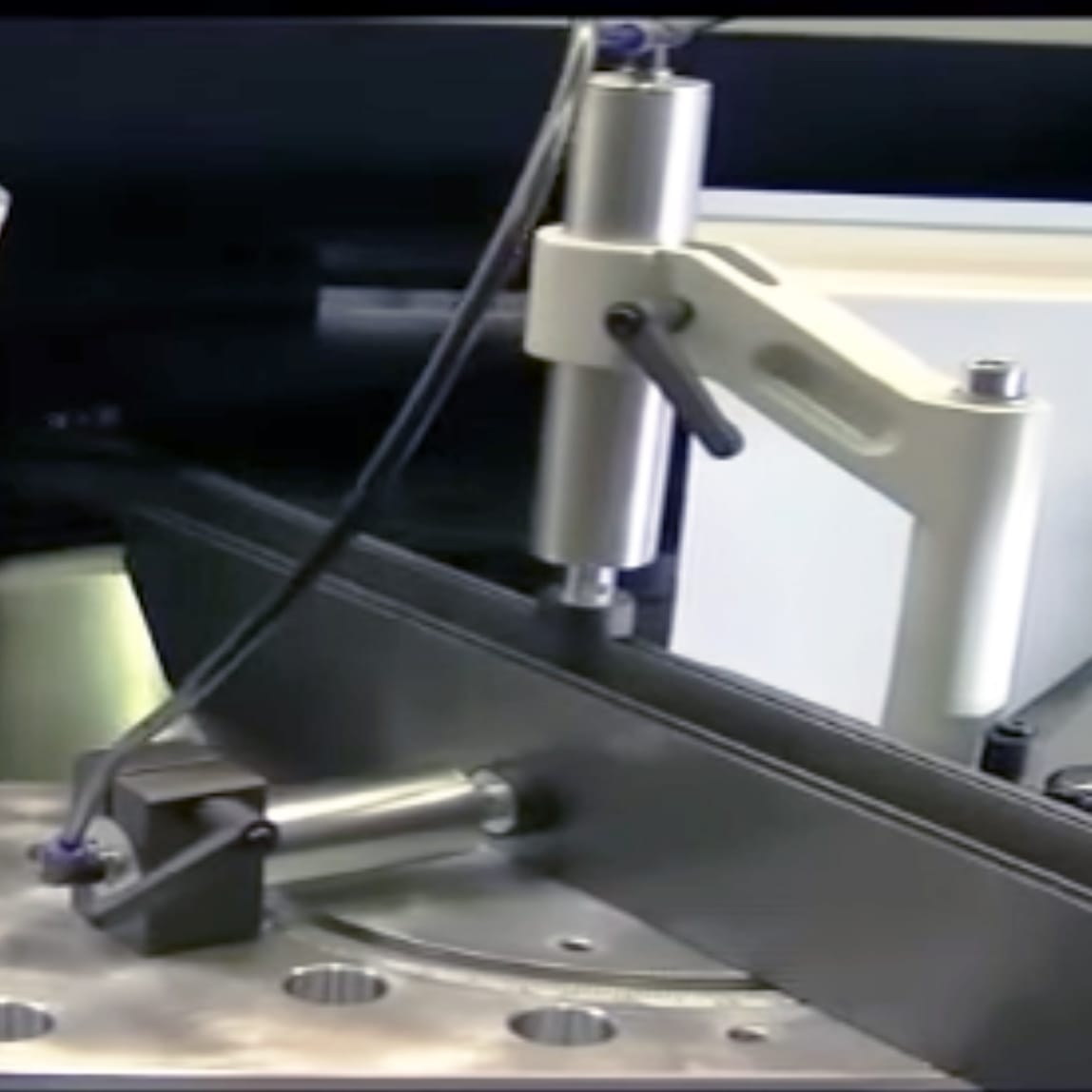

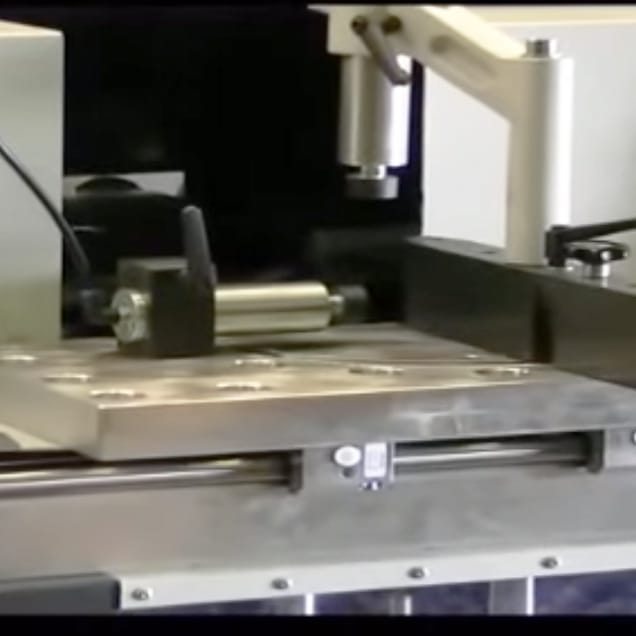

Pneumatic material clamping
Mist spray blade lubrication
Add to quote
Category:

Pressta Eisele Prisma 400

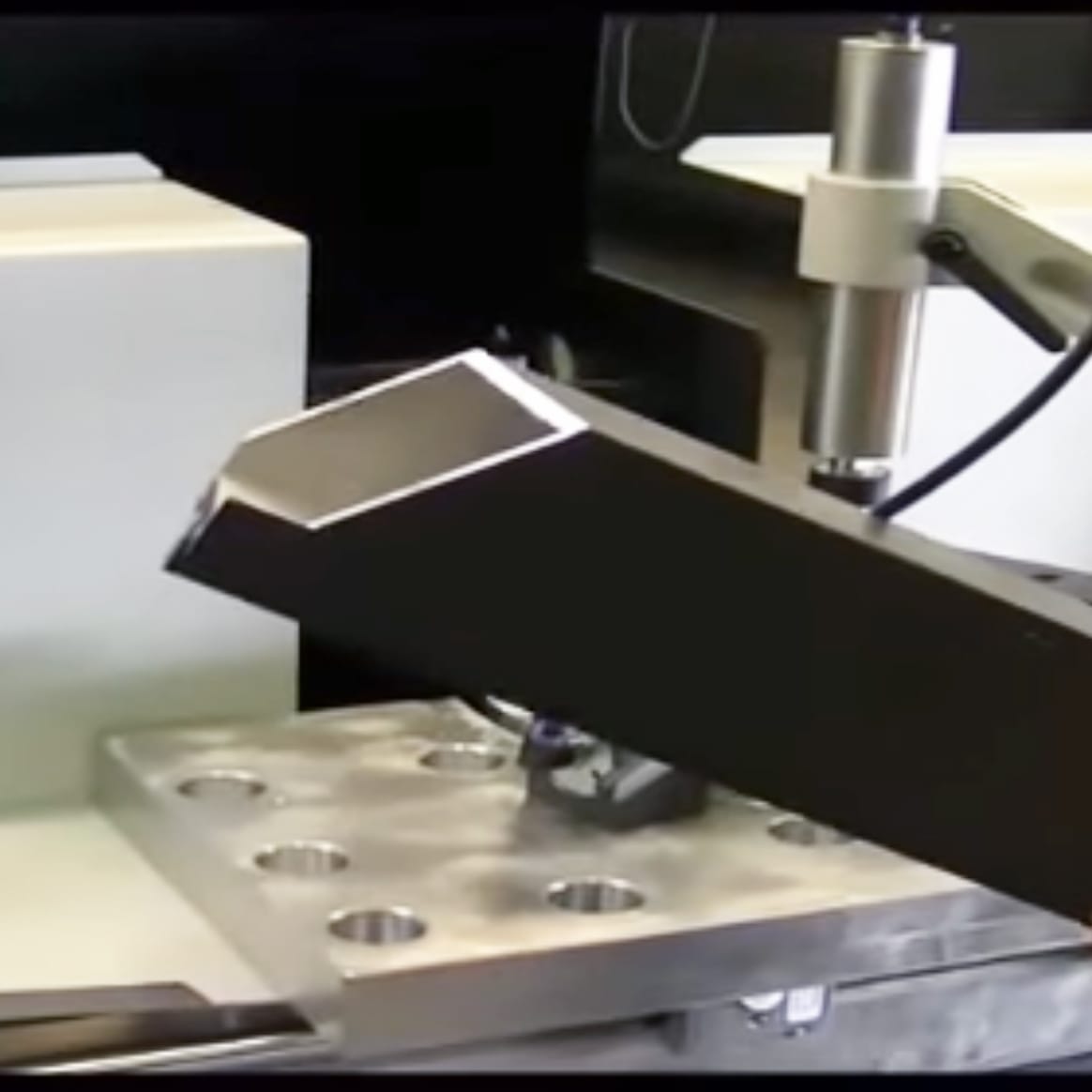

Most commonly used within the curtain walling industry for notching out the transom and mullion end notching. Although this machine was conceived for this particular job there are many other applications that it can be specified for.



Technical Data Prisma 400
Vertical sawblade dia 400mm
Horizontal sawblade dia 400mm
Max horizontal notching depth 135mm
Max vertical notching depth 135mm
Max profile height 250mm
Max profile width 250mm
Sawblade tilting range (vertical) -30° 90° +30°
Fence swivel range -30° 90° +30°
Motor power 3kw (2800 rpm)
Machine weight 355kg
Footprint 1550mm x 900mm
ADDIMIST SPRAY MIST cutting fluid system
Addimist

Pure oil micro-mist blade lubrication system recommended over the standard soluble system, as it delivers a high performance neat oil in minute highly controlled doses. Giving a cleaner working environment with no odours or risk of skin irritation sometimes connected with soluble fluids. Each dose cane be scaled by adjusting the size of each pulse and the frequency of each pulse.

Additrack 3MS roller tracking table
Additrack 3MS

Roller support table with manual set material stop and graduated scale. 3000mm long with 280mm wide rollers (100kg point loading) available with steel rollers and neoprene coated rollers for aluminium and materials with a sensitive surface finish. Adjustable support legs are available together with connection brackets. The modules can be joined for longer lengths.

Pressta Prisma 400 Data Sheet
