Pressta Eisele Dyno-9
Hydro pneumatic intensifier

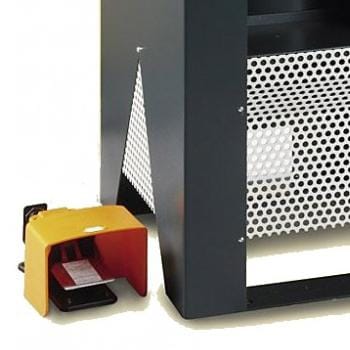

Foot pedal activation
Specifiable ram lengths

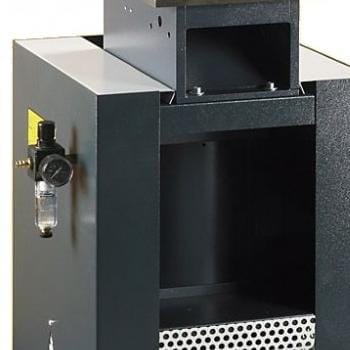

Optional machine base
Optional rotary table (5 tools)
Max. power at 10 bar = 90 KN
Stroke = 40 mm
Max. daylight = 250 mm
Working range: ram to back wall = 130 mm
Working range with turn table: ram to back wall = 90 mm
Scroll down for specification, optional extras, videos & more ⬇️
Pressta Eisele Dyno-9
Hydro-pneumatic punching machine widely used in the window, door and commercial aluminium fabrication market. Other markets include lighting, automotive, air diffusion, marine windows, partitioning, and many more.
| Maximum daylight with optional ram (no rotary table) | 250mm |
| Throat dimension to ram centreline | 130mm |
| Throat dimension with rotary table fitted | 90mm |
| Dimensions | 280x1480x425mm |
| Weight | 140kg |
| Optional rams for daylight – 140-160-200-250mm | |
