Pressta Eisele Dyno-6A
Quick change tool system
Hydro pneumatic intensifier
Foot pedal activation
Specifiable ram lengths
Optional machine base
Optional rotary table (5 tools)
Max. power at 10 bar = 50 KN
Max. daylight = 200 mm
Working range: ram to back wall = 110 mm
Scroll down for specification, optional extras, videos & more ⬇️
Pressta Eisele Dyno-6A
Hydropneumatic punching machine widely used in the window, door and commercial aluminium fabrication market. Other markets include lighting, automotive, air diffusion, marine windows, partitioning, and many more.

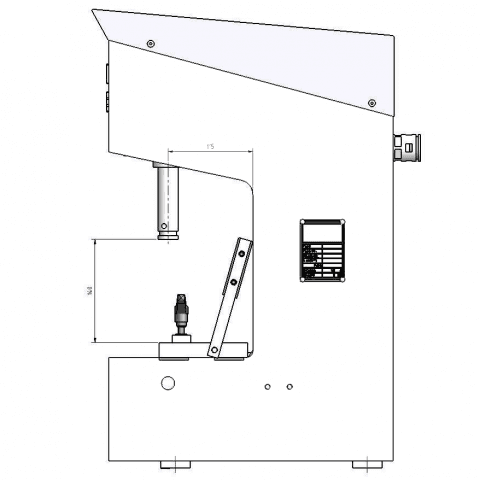

| Maximum daylight with optional ram (no rotary table) | 200mm |
| Throat dimension to ram centreline | 110mm |
| Throat dimension with rotary table fitted | 70mm |
| Dimensions | 280x780x425mm |
| Weight | 65kg |
| Optional rams for daylight – 140-160-180-200mm | |
