Pressta Eisele Dyno-20

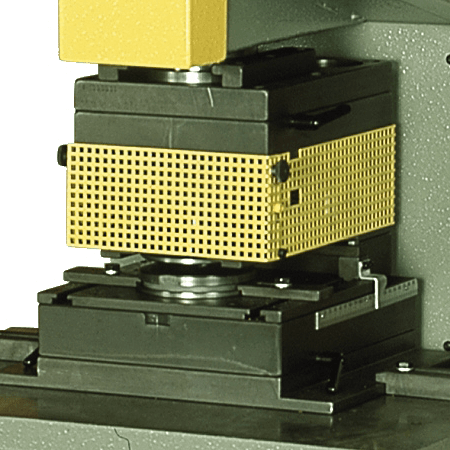

Quick change tool system
Hydraulic operation
Adjustable stroke 0-80mm
20 double strokes per min at 80mm

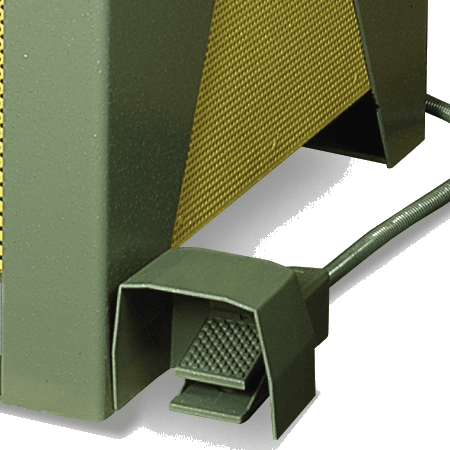

Foot pedal activation
Specifiable ram lengths
Floor stand
Scroll down for specification, optional extras, videos & more ⬇️
Category:

Pressta Eisele Dyno-20

Hydropneumatic punching machine widely used in the window, door and commercial aluminium fabrication market. Other markets include lighting, automotive, air diffusion, marine windows, partitioning, and many more.

Maximum stroke (variable) 0-80mm
Throat dimension to ram centreline 200mm
Maximum daylight 300mm
Minimum daylight 140mm
Optional rams for daylight – 140-200-250-300mm
Weight 660kg
Dimensions 600x1700x980mm
