OZ Machinery LEPUS – II Panel Processor

CNC Controlled Aluminum Composite Panel Processing Machine
Automatic
Remote access
Data transfer over remote network connection
Ethernet and USB
NC-300A - MI CNC Control unit
Tools replacement in 2.5 seconds
Automatic milling cutter length reset
Pneumatic system maintenance unit
pneumatic alignment system
2D CAD CAM graphics & optimization software
Steel frame with tension resistance
high accuracy processing

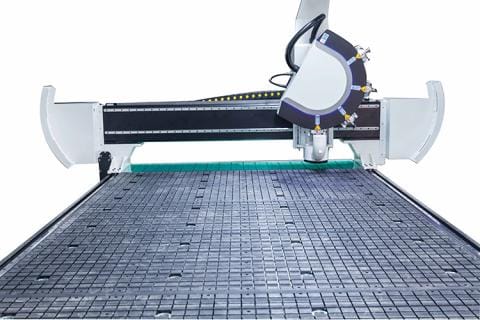

OZ Machinery LEPUS – II Panel Processor

CNC controlled aluminium composite panel processing machine – 3 axis automatic tool replacement, used for cutting and opening v-channels in composite panels and plates.

The Lepus II comes with a whole host of benefits designed to make your production process as smooth as possible, whether you are working on plastic, aluminium or wooden panels.

  • Data transfer can be achieved over a remote network connection, ethernet and USB, eliminating the need for manual operator input
  • Write and process manual code, as well as edit loaded code files
  • Vacuuming in independent sections
  • Special vacuum circuit, specifically designed for local vacuum delivery
  • Ideal vacuuming with air channels on polyethylene board
  • External dust vacuuming system
  • Tool replacement magazine: capacity for 4 independently operating fan cooled spindle motors
  • Composite plate fixing and superior processing quality with strong vacuum
  • Ability to process wooden and plastic plates by replacement of milling cutter
  • Ability to resume operation following problems e.g power outage.

STANDARD EQUIPMENTS

2D CAD CAM
Cutter (2 pcs 4 mm cutter, 2 pcs V channel cutter)
Vacuum pump (700 m³/h)
Dust vacuuming system

OPTIONAL EQUIPMENTS

Special cutter tools
Optional length
