OZ LEO – Plus Automated Mitre Saw

Process programming and large memory
Batch processing and precision measurement
Hydro-Pneumatic cutting action with variable feed rate
Secure cutting by the cover equipped with a safety sensor
Automatic positioning at all degrees between -22.5◦ and +45◦

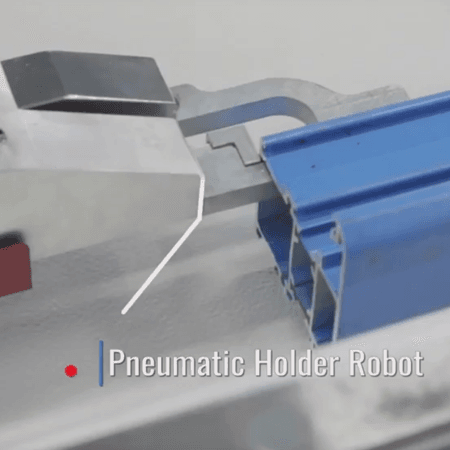

6000mm NC gripper feeder system with manual X-Y axis adjustment
Offloading table

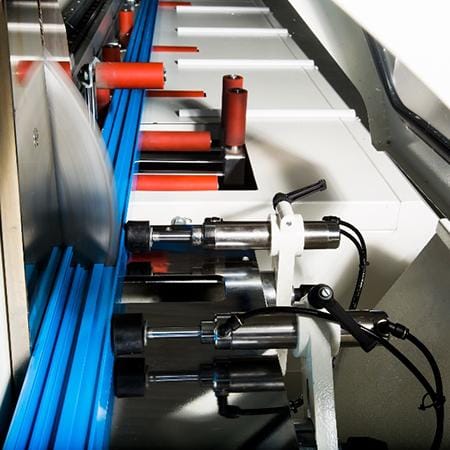

Horizontal clamping (option for vertical clamps)

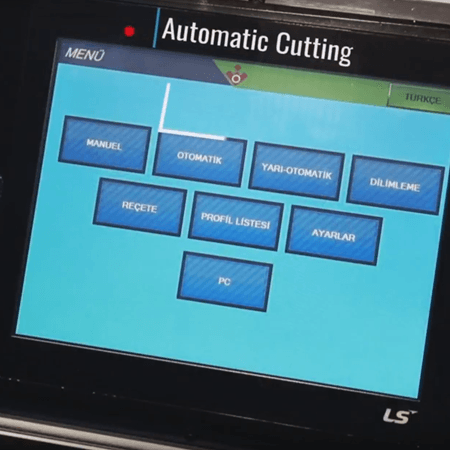

Industrial PC with Windows based 10" touchscreen
Ability to perform cutting automatically from a list
Resume cutting feature (emergency stop etc.)
Scroll down for specification, optional extras, videos & more ⬇️
Add to quote
Categories: ,

OZ Machinery LEO – Plus

Automatic cutting machine with 550 mm saw blade. The LEO plus is ideal for cutting aluminium and PVC profiles to various angles and thickness.
LEO plus provides rapid and precise processing with servo controlled positioning of the head and any angles between -22.5° and 45°and servo controlled robotized profile loading gripper.
Safety is a topmost priority for LEO plus together with the horizontal and vertical clamps which improve the cutting quality.

STANDARD EQUIPMENT

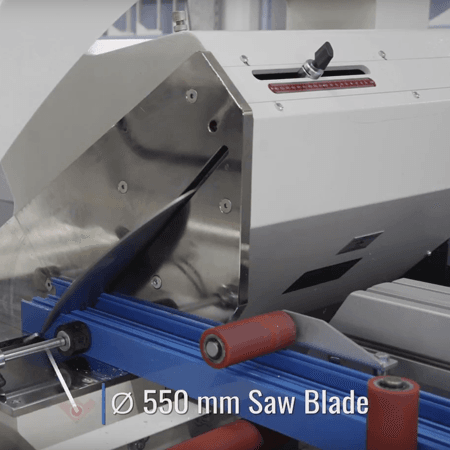

Ø 550 mm saw blade
Cooling system
6000mm high speed NC gripper feeder
Offloading table

OPTIONAL EQUIPMENT
Barcode printer
Vertical clamps

Oz LEO PLUS Product Sheet
