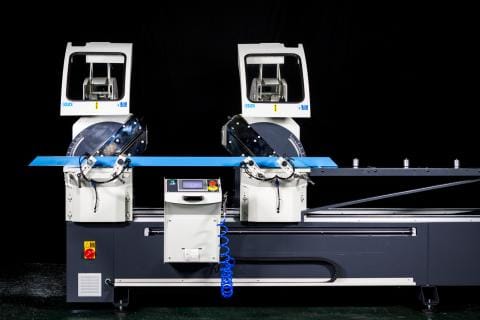

OZ Machinery Gemini – IV – SA

CN Double mitre saw | with pneumatic head tilt | 450mm blades
Choice of internal or external tilting heads
Available in 4m - 5m - 6m bed length

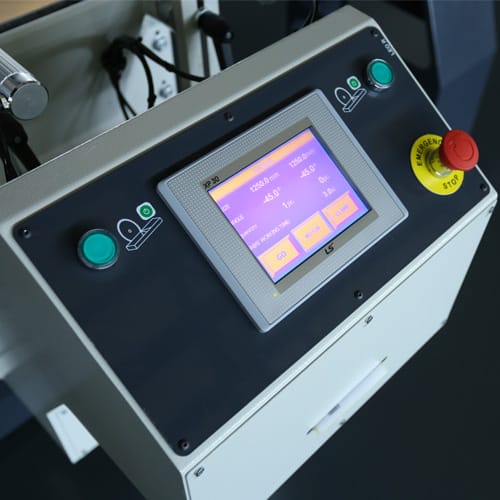

NC control system with touch screen HMI
Automatic horizontal clamps (option for vertical)
Manual profile support (option for pneumatic system)
Manual setting of intermediate angles between 90-45 deg
Mist spray blade lubrication
Add to quote

OZ Machinery Gemini – IV – SA

450mm CN double mitre saw with servo positioning of the moving head for precise results. Touch screen HMI for inputting of the cutting data. The Gemini IV SA has the ability to automatically cut longer profiles (eg 4m machine can cut 7m) and features pneumatic tilting of the cutting heads for mitre cuts.

TECHNICALUnitData
Motor powerhp3
Sawblade speedrpm3000
Sawblade diametermm450
Sawblade boremm30/32
Servo motor powerkw1.1
Mobile head transmissionRack & pinion
Minimum cut 90deg / mm400
Max cut length  90 mm / mm4040
Air consumptionL / min110
Machine lengthmm7700
Machine depthmm1890
Machine heightmm1725
Machine weightkg1125

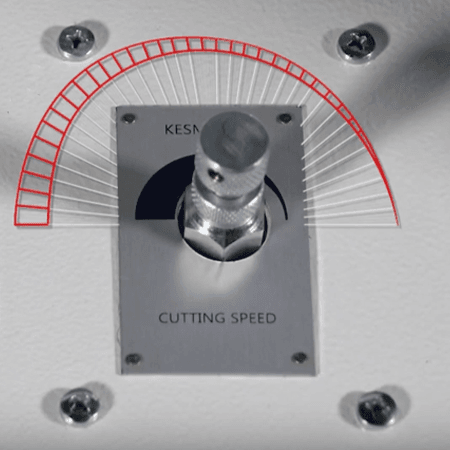

Sawblade Stroke

Digital adjustment for the sawblade stroke to quickly reduce cutting cycle times

EW-3 Extractor

Complete swarf extraction system taking from both sawblade chambers, fully compliant to handle aluminium, pvc, brass, wood, copper and composite materials. The steel container is removable for easy emptying, and the filter bags are maintained with either the standard manual shake lever or the optional pneumatic shake.

Addimist

Pure oil micro-mist blade lubrication system recommended over the standard soluble system, as it delivers a high performance neat oil in minute highly controlled doses. Giving a cleaner working environment with no odours or risk of skin irritation sometimes connected with soluble fluids. Each dose cane be scaled by adjusting the size of each pulse and the frequency of each pulse.

Angle Setting

2 x Digital display of the cutting angle for increased accuracy over the manual graduation scale

Profile Measurement

Digital profile height measuring device

Sawblade

2 x 450mm TCT sawblades

Profile Support

Roller table fixed to the mobile head

Gemini-1V-SA-PDF.pdf
