OZ Machinery Gemini – IV M

Choice of internal or external tilting heads
Available in 4m - 5m - 6m bed length
Manual length movement with DRO
Automatic horizontal clamps (option for vertical)
Manual profile support (option for pneumatic system)

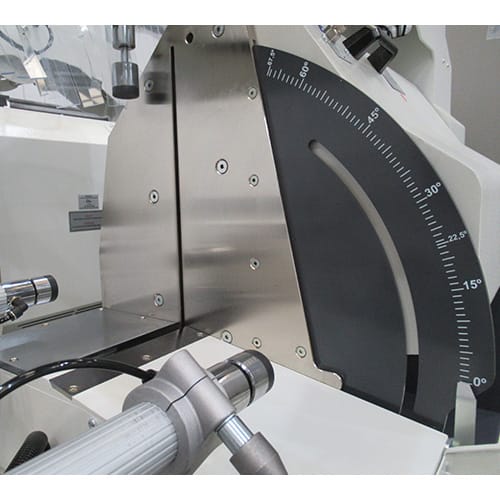

Manual setting of intermediate angles between 90-45 deg
Pneumatic head rotation
Mist spray blade lubrication
Scroll for more information ⬇️
Add to quote
Category:
Clamping

Vertical clamps for additional work holding

EW-3 Extractor

Complete swarf extraction system taking from both sawblade chambers, fully compliant to handle aluminium, pvc, brass, wood, copper and composite materials. The steel container is removable for easy emptying, and the filter bags are maintained with either the standard manual shake lever or the optional pneumatic shake.

Addimist

Pure oil micro-mist blade lubrication system recommended over the standard soluble system, as it delivers a high performance neat oil in minute highly controlled doses. Giving a cleaner working environment with no odours or risk of skin irritation sometimes connected with soluble fluids. Each dose cane be scaled by adjusting the size of each pulse and the frequency of each pulse.

Angle Setting

2 x Digital display of the cutting angle for increased accuracy over the manual graduation scale

OZ Machinery Gemini – IV – SA

450mm CN double mitre saw with servo positioning of the moving head for precise results. Touch screen HMI for inputting of the cutting data. The Gemini IV SA has the ability to automatically cut longer profiles (eg 4m machine can cut 7m) and features pneumatic tilting of the cutting heads for mitre cuts.

TECHNICALUnitData
Motor powerhp3
Sawblade speedrpm3000
Sawblade diametermm450
Sawblade boremm30/32
Servo motor powerkwN/A
Mobile head transmissionManual
Minimum cut 90deg / mm400
Max cut length  90 mm / mm4040
Air consumptionL / min110
Machine lengthmm7700
Machine depthmm1890
Machine heightmm1725
Machine weightkg1125

Profile Suport

Roller table on the moving head

Aluminium TCT Circular Saw Blades
Sawblades

2 x 450mm TCT sawblades

Gemini-1V-SA-PDF.pdf
