NEW Everising H 460 HB-NC Bandsaw

NEW larger slave column for increased rigidity
NEW rollers mounted in cutting table
NEW self adjusting bed insert
Bundle cutting capabilities
2 Year parts warranty (1 year on site labour)
NC control for cut length & number of pieces
Scroll down for specification, optional extras, videos & more ⬇️
Add to quote
Category:

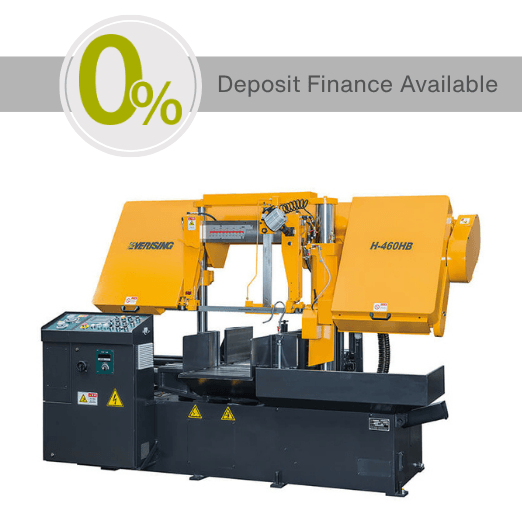

Everising H 460 HB-NC Bandsaw

Production cutting bandsaw from world leading producer Everising, highly recommended for cutting solid and sectional materials including tough alloys. The Everising H series are globally recognized and proven for delivering consistent performance and reliability with exceptionally low running costs, all backed up by an industry leading 24 months manufacturers parts warranty.

H-460 HB
Capacity – Round 460 mm
Capacity – Square 500 x 460 mm
Bundle Cutting – Width 195 to 310 mm
Bundle Cutting – Height 120 to 230 mm
Blade speed 20 to 100 m/min (65 to 330 fpm) (INVERTER)
Blade Drive Motor 5.5 kW (7.5 HP)
Hyd. Pump Motor 1.5 kW (2HP)
Coolant Pump Motor  0.2 kW (1/4 HP)
Blade Size 5450 x 41 x 1.3 mm
Blade Tension Hydraulic
Index Length 500 mm
Index Length 500 mm x 9 times
Machine Weight 3030 kg
Floor Space (L x W) 2820 x 2190 mm
Cut Monitoring

Device with user set parameters for monitoring blade deviation. If the parameter is exceeded the machine will shut down.

Addimist system image
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Everising vice pressure reducer

Vice pressure reduction covering all vices, for clamping of lightweight and delicate sections and tubes.

Cutting Control

7″ colour touch screen HMI for entering up to 20 jobs containing multiple cutting lengths and piece qty

Swarf Conveyor

A screw type conveyor with ultra reliable hydraulic motor concealed to for maximum protection.

kms 80 band saw close up
Bundle vices

Detachable hydraulic vertical bundle vices (145 x 190mm capacity)

Blade Control

Variable blade speed with inverter and digital display
20 to 100m/min (65 to 330 fpm)

Vice Details

Full stroke hydraulic vices. The feeder vice is Y axis floating to help with bent material stock. The front vice is split to clamp both sides of the sawblade eliminating any offcut nib. All vices have replaceable hardened jaw plates.

Blade Tensioning

Hydraulic blade tensioning system

Rapid Cycle Times

Fitted with a mechanical material height detection device which allows automatic fast approach before switching to the selected cutting rate. After the cut the saw head returns only to a few mm above the stock to reduce cycle times.

Feeder Vice

Fitted with a Y axis floating feed vice that can cope with bent and out of tolerance material stock.

Additrack 2M

Roller support table 2000mm long with 350mm or 500mm wide rollers.

EVERISING-H460-Data-Sheet.pdf
