NEW Everising H 360 HB-NC Band Saw - Addison Saws

NEW Everising H 360 HB-NC Band Saw

Shuttle vice automatic bandsaw with NC control
NEW larger slave column for increased rigidity
NEW rollers mounted in cutting table
NEW self adjusting bed insert
NC control for cut length & number of pieces
Colour touch screen control panel -20 programs
Kerf separation for use with TCT sawblades
Hydraulic centerless swarf conveyor
Detachable hydraulic bundle vices (2 x pieces)
Variable blade speed inverter & digital display
Split front vice for nib free cutting
Hydraulic blade tensioning
Floating shuttle vice system
Material height detector with rapid approach
2000mm roller table with adjustable rollers
2 Year parts warranty (1 year on site labour)

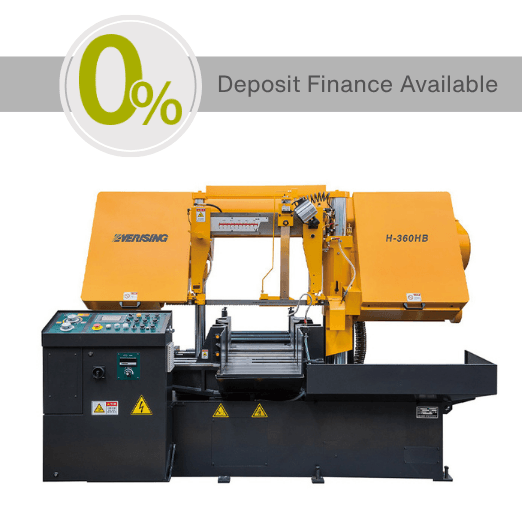

Everising H 360 HB-NC Bandsaw

Production cutting band saw from world-leading producer Everising, highly recommended for accurate cutting of solid and sectional materials including tough alloys. The Everising H series is globally recognized and proven for delivering consistent performance and reliability with exceptionally low running costs, all backed up by an industry-leading 24 months manufacturers parts warranty.

H-360 HB-NC
Capacity – Round 360 mm
Capacity – Square 360 x 360 mm
Bundle Cutting – Width 180 to 280 mm
Bundle Cutting – Height 50 to 100 mm
Blade speed 20 to 100 m/min (65 to 330 fpm) (INVERTER)
Blade Drive Motor 3.7 kW (5 HP)
Hyd. Pump Motor 1.5 kW (2HP)
Coolant Pump Motor 0.1 kW (1/8 HP)
Blade Size 4420 x 34 x 1.1 mm
Blade Tension Hydraulic
Index Length 500 mm
Index Length 500 mm x 9 times
Machine Weight 2000 kg
Floor Space (L x W) 2500 x 2200 mm

Already have an Everising H360?

Addison are the only authorised supplier of Everising products in the UK, and have been for the last 20 years – including spare parts, meaning we know these machines better than anyone. if you’re looking to replace your H360 or have a problem with your current machine, give our Everising trained engineers a call on 01384 264 950.

Battery Laser Line

Premium quality battery powered laser line. Can be fitted to most bandsaws and some circular saws. Excellent battery life and adjustable projection line. This is a useful device when this machine is being used in semi automatic mode for general fabrication activities.

Everising vice pressure reducer

Vice pressure reduction covering all vices, for clamping of lightweight and delicate sections and tubes.

Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Cut Monitoring

Device with user set parameters for monitoring blade deviation. If the parameter is exceeded the machine will shut down.

Cutting Control

7″ colour touch screen HMI for entering up to 20 jobs containing multiple cutting lengths and piece qty

Swarf Conveyor

A screw type conveyor with ultra reliable hydraulic motor concealed to for maximum protection.

Bundle vices

Detachable hydraulic vertical bundle vices (145 x 190mm capacity)

Blade Control

Variable blade speed with inverter and digital display
20 to 100m/min (65 to 330 fpm)

Vice Details

Full stroke hydraulic vices. The feeder vice is Y axis floating to help with bent material stock. The front vice is split to clamp both sides of the sawblade eliminating any offcut nib. All vices have replaceable hardened jaw plates.

Blade Tensioning

Hydraulic blade tensioning system

Rapid Cycle Times

Fitted with a mechanical material height detection device which allows automatic fast approach before switching to the selected cutting rate. After the cut the saw head returns only to a few mm above the stock to reduce cycle times.

Feeder Vice

Fitted with a Y axis floating feed vice that can cope with bent and out of tolerance material stock.

Additrack 2M

Roller support table 2000mm long with 350mm or 500mm wide rollers.
