FALCON CNC Machining Center

8.5kw HSD spindle HSK-F-63
5 x Automatic individually motorised vices
X axis traverse speed 150 mpm (fastest machine in the world)
Clamps moving in cycle for extended machining area
A axis Profile rotation +135° to -135° to work 3 sides
Encoded rotation to work intermediate angles
Main spindle does all work with full use of the magazine
Full CAM-3d software
Integration with external software
4275mm working length
Open ends to allow machining up to 8000mm
Centralised 10 tool automatic magazine
Zero stops at each end to work multiple profiles
Automatic centralised lubrication system
Option for spindle with rigid tapping function
Option for mist extraction
Add to quote
Category: Tags: ,

Mecal Falcon 4 Axis Machining Centre

For ultra high speed machining of aluminium – Steel – Brass – Copper and PVC materials. The Falcon cannot be beaten on productivity, it is on average 30% faster than its nearest rivals and can be used in numerous applications including, windows, doors and curtain walling, automotive, aerospace, engineering, internal partitions, sign manufacturing, air conditioning and refrigeration. We have installed these machines for a very diverse range of applications including; machining slots, pockets, holes, custom shapes, end slotting, tapping, rigid tapping applications, drilling and flow drilling.

X-axis strokemm4275
Positioning speed X-axism/1′150
Y-axis strokemm530
Positioning speed Y-axism/1’40
Z-axis strokemm410
Positioning speed Z-axism/1’40
A axis strokedeg± 125°
Electrospindle rated powerkW8,5
Max rotation speedrpm24000
Tool holder coneHSK F63
Diameter of disc cutter (max.)mm200
WeightKg± 3500

Subject to technical changes

Mist Extraction System

Virtually Mandatory now mist extraction is an important option to consider either supplied with a new machine or easy retro-fit. Our Italy Vacuum is the most efficient and cost effective solution. Lower purchase cost than leading brand, no scheduled servicing costs as all filters with the exception of the HEPA filter can be user cleaned with an air gun or just warm water, and finally the extraction performance is industry leading by comparison.

Mecal swarf drawers image
Swarf Drawers

Set mobile of steel swarf collection drawers

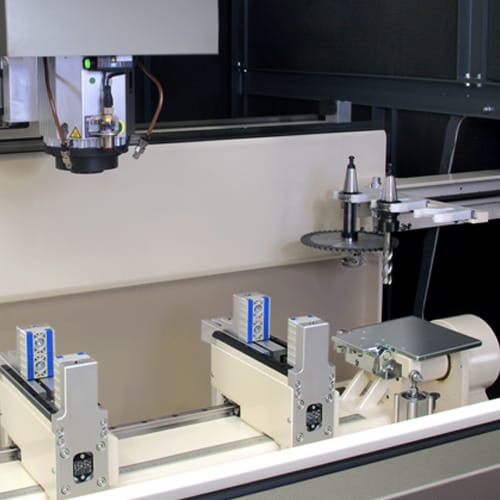

MEcal Falcon machining centre aux tool magazine
Additional Magazine

Commonly used to mount the angle drive heads.

Machining Centre spindle upgrade
Spindle Upgrades

8.5kw air cooled with axial encoder to facilitate rigid tapping functions.

Mecal job simulator software
Simulator

Job simulator software which shows an accurate simulation of the actual job in real time very graphically. Indicating timings and potential process errors.

Mecal angle drives for machining centres
Angle Drives

Angle drive with 2 tools can be orientated in either Y axis or Z axis direction, the required direction must be specified on ordering.

Angle drive with sawblade can be orientated in either Y axis or Z axis direction, the required direction must be specified on ordering.

Optional additional magazine may be required for auto change of the unit. The tools within the angle drive have to be manually changed.

Mecal belt conveyor image
Belt Conveyor

A rubberised belt conveyor to transport captured swarf and off cut pieces to the end of the machine where a collection container can be placed.

Probe options image
Other Options

Automatic length measuring device

Multi directional probe with detection based on Z axis orientation

mecal barcode reader for machining centres
Bar Code Reader

For receiving job data when integrated with a double miter saw that has the thermal label printer. The job data is usually provided by external software.

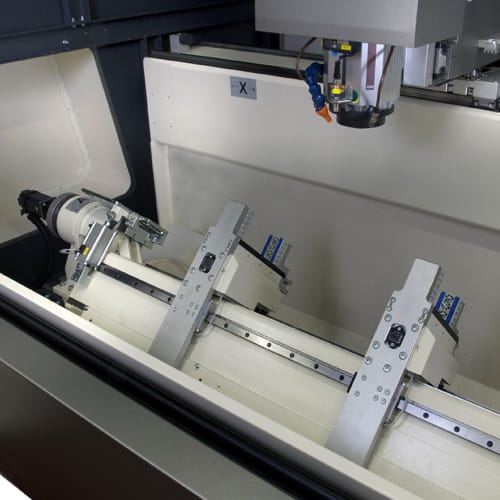

Mecal Falcon Machining Centre table rotation
4 Axis Machining

4 Axis machining capability with A axis rotation performed by a rotating table with a range of -125° to +125°

Mecal cnc machining centre material loading zones
Loading Zones

Single loading zone with 2 zero reference stops allowing 2 different jobs of appropriate length to be worked. Alternatively, on full length job, the machine ends can be opened to allow machining of profiles longer than the Z axis.

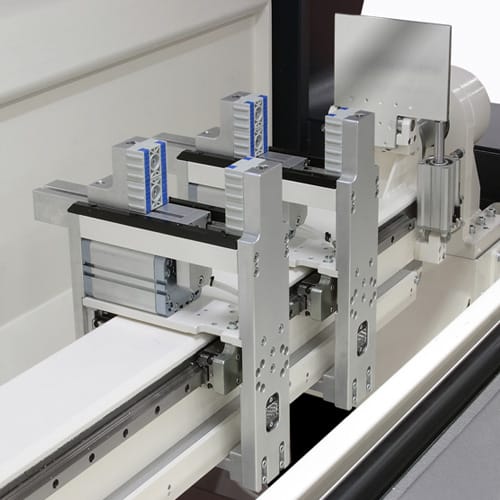

Mecal Falcon machining centre clamps for securing profile in place.
Clamping Positioning

MMI-system where each clamp is individually motorised for the most rapid set up times possible. They can also move during the working cycle to allow machining in zones where a standard clamp would occupy.

Mecal cad cam 3D image
Mecal CAD CAM 3D

Designed to be the most advanced and easy to use system currently available. All of the basic programming is available with pre-loaded macros which are applied by a simple drag and drop process. The graphical 3D presentation is a clear and accurate representation that can be viewed from any angle to check for errors, and it demonstrates the orientation for the workpiece to be correctly loaded.

Mecal external connection image
External Connections

We have the ability to connect to many external window packages (including Schucal-Logikal) sometimes a linking program is required at additional cost.

The converter imports IGES files in completed SW CAD 3D and creates the program to process the job. This function is in high demand from industrial clients using Inventor-Solid Works and Solid Edge type programs.

Mecal CNC machining centre tooling magazine.
Tool Magazine

10 position automatic tool magazine is mounted centrally  to reduce tool change times to an absolute minimum.

Falcon-data-sheet.pdf

Reviews

There are no reviews yet.

Be the first to review “FALCON CNC Machining Center”

Your email address will not be published. Required fields are marked *

Related Products

  • Mecal MC309 Nike 4 axis cnc machining centre

    Mecal MC309 Nike Machining Center
    Add to quote

  • Mecal MC 305 Kosmos
    Add to quote

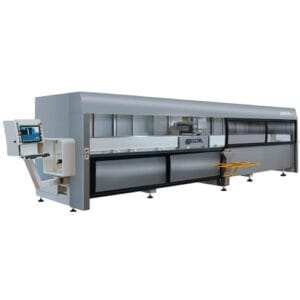

  • Mecal MC 305 Gianos 4 axis CNC machining centre
