MG TM 3 Measuring System

3M / 3000 mm Roller table | battery LCD display | hand-wheel positioning
Manual positioning-measurement system with handwheel
Analog positioning display and manual fixing
3000 mm length
4000 & 6000 mm versions available as standard
Special lengths available on request
Add to quote

Tronzadoras MG TM 3 Roller Table

Roller table with hand-wheel positioned material stop and battery LCD display of the selected cutting length. Fitted with soft coated rollers to protect the material surface finish.



Tronzadoras MG TM 3 Roller Table
External measurements3500×600 mm
Height800-1050 mm
Rollers11
Roller dimension40×300 mm
Admissible Load70 Kg/meter
Range3000 mm
Accuracy0,1 mm
Air Supply6-8 bar
Weight70 Kg

Other standard sizes:

Tronzadoras MG TM 4 Roller Table

Tronzadoras MG TM 6 Roller Table

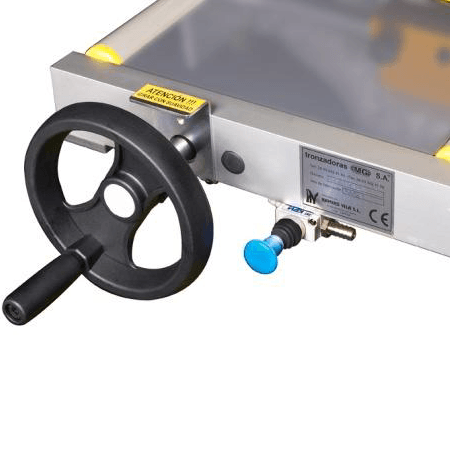

TN version with pneumatic stop

TN version with pneumatic push button locking of the material stop.
