MAXI VORTEX 58 Dust & Chip Extractor

Very competitive purchase cost
2 x inlets
Lowest running costs
Tangential inlets for superior performance
Low noise technology
IFA certified filter – antistatic – oil repellent – water repellent
Add to quote
Category: Tags: , ,
DCD system

  • DCD system
  •  We will check the contamination level of the filters. We will also assess their efficiency in real time using touch screen technology. Additionally, we will track the hours worked

Filter cleaning

Antistatic

Ariel Support

  • Aerial support for hose
  • This tool is made for machines with a flat work surface. It lets the suction hose drop right to the center of the work area.

Remote switch

  • Remote start on/off
  • Allows the aspirator and the machinery to be switched on and off simultaneously and automatically.

Separator

Containers

Container 600 Lt ( 160 gal ) / 1100 Lt ( 290 gal ) / 2200 ( 580 gal )

Additional containers of various capacities with automatic.

MAXI VORTEX 58 dust & chip extractor

The MAXI VORTEX 58 (extra-large size) with double inlet sits at the very top of the highly developed Vortex 58 line.  The Maxi effectively removes chips and dust from day one. Its performance is unmatched and only increases due to a larger cyclone chamber. This allows an even more powerful cyclonic effect by virtue of its remarkable increase in internal volume.

This height difference lets the filter sit above the suctioned material. This helps avoid blockage and allows the material to flow more freely inside.

This design aims for high performance from the start. It measures 200mm taller than the standard model so there is no need to add extensions later.

AdvantagesExtra large chip container of 175 liters against most other units at 160 liters
2 x tangential inlets as opposed  to front central design. This feature is important. The design creates a strong vortex when entering the chamber, which greatly improves performance. These 2 inlets are strategically positioned below the internal filter which serves as the heart of the vacuum cleaner. This means that when dust and chips enter the vacuum cleaner, they do not touch the filter. This helps the filter last longer and reduces maintenance costs for customers.We have a great filter shaking system that really works. Many of our customers appreciate it highly. To connect to the company’s air supply, just open the dedicated tab. The system will shake the filter.
Thanks to gravity, all the dust and chips collected during cutting or sawing will fall into the bin. This makes it easy to contain and capture the debris.
STOP MIST OPTION – one of our dark horse accessories. We are the only ones at the moment in the market to offer this type of accessory. By using this, you are actually able to stop oil residues that come from chip extraction. The stop mist can also be sold after sales giving the customers maximum flexibility.Excellent anti-static system without the need to attach cables and screws that take a lot of time when
you need to open the container. Ours simply does its own automatically.
GENERAL INFORMATION
Motors available:  from 2,2 kW ( 3hp ) to 25 kW ( 33.5hp ) – Fan  /  from 2,2 kW ( 3hp ) to 25 kW ( 33.5hp ) – Turbine
N° inlet [ Ø ]:  N° 1  [ 100mm – 4” / 120mm – 4.7”  / 160mm – 6.3” ]
Container capacity:  175 Lt ( 46 gal )		Available in ATEX version



Noise reduction

  • All models come with oversized “low sound” silencers. These silencers are designed by Italyvacuum to reduce noise. They are among the quietest options available from any manufacturer.

Filters

  • Class M air filter with special high density anti-grip polyester fabric – IFA certified – antistatic – oil repellent – water repellent

Container

  • Large porthole for visual control of container filling level

Reviews

There are no reviews yet.

Be the first to review “MAXI VORTEX 58 Dust & Chip Extractor”

Your email address will not be published. Required fields are marked *

Related Products

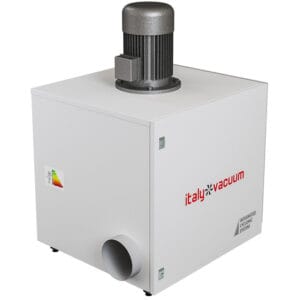

  • Technomist oil mist extraction unit for metal cutting saws
