Semi Automatic | Straight Cut Only | Max Capacity 850 mm (Round)

Key Features

Strong stable twin column design
Large width cutting capacity
Full stroke hydraulic vice
Split vice for holding stock and cut piece
Hydraulic blade tensioning
Blade breakage detection & auto shutdown
Inclined cutting head to extend blade life
Blade cleaning brush
Roller table
Scroll for more details ⬇️
Add to quote
Category:

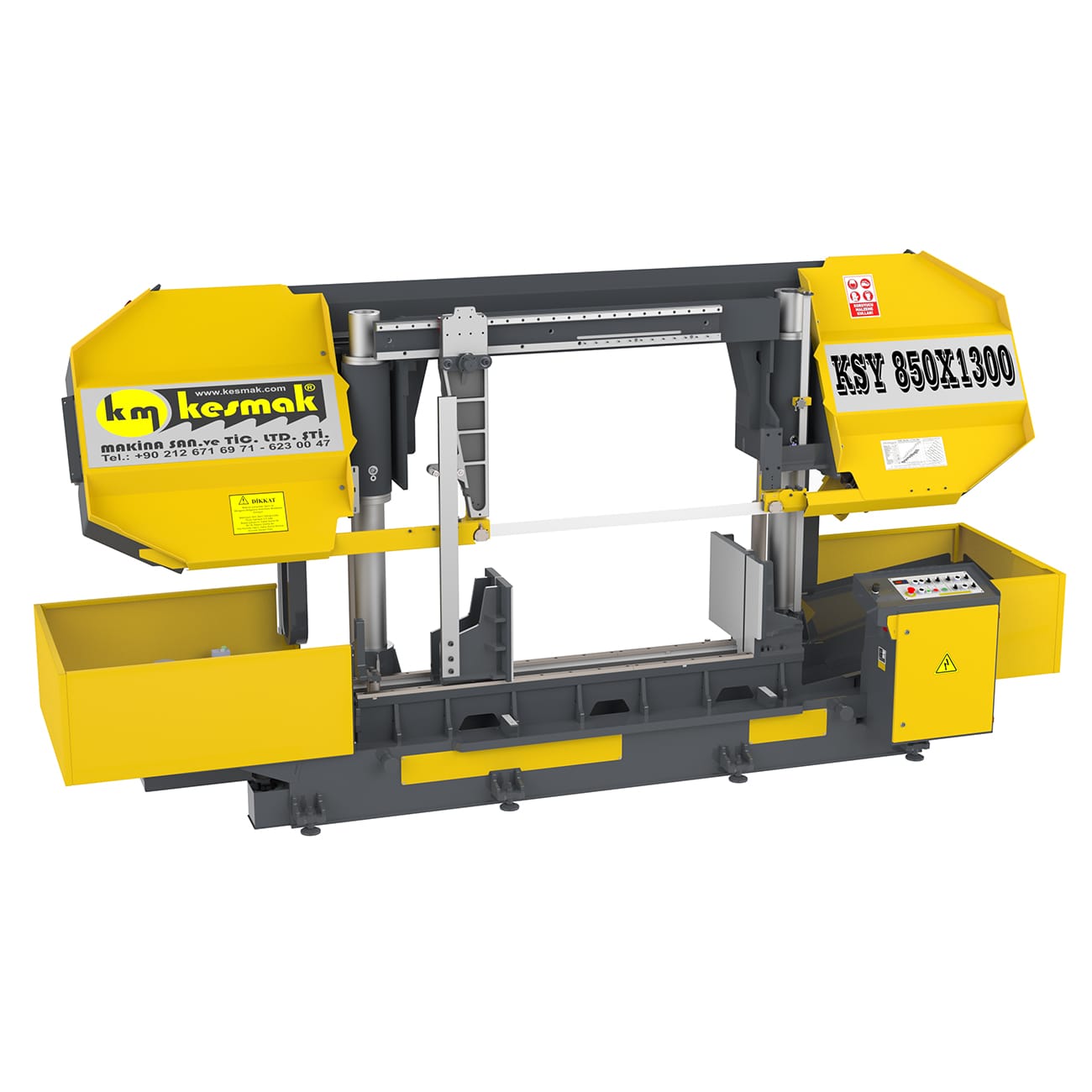

Kesmak KSY 850-1300 Bandsaw

Semi automatic twin column horizontal bandsaw for general workshop and production cutting of all types of steel and non ferrous metals.

Technical Specifications KSY 850 x 1300
Capacity 90° – Round Ø 850 mm
Capacity 90° – Square 850 x 850 mm
Capacity 90° – Rectangle 850 x 1300 mm
Blade Drive 7,5 kW
Hydraulic Pump 1,5 kW
Coolant Pump 0,12 kW
Swarf Conveyor 0, 18 kW
Blade Size 10100 x 67 x 1,6 mm
Feeding Height 500 mm
Vice Maximum Opening 1300 mm
Vice Minimum Closing 300 mm
Vice Height 500 mm
Height – Width – Length 2500 x 1700 x 4900 mm
Band saw battery Laser Line Option Image
Laser Line

Either a quality Addison fit German battery unit or factory fit powered item.

Addimist system image
Addimist Lubrication System

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Upper Clamp System

Vertical hydraulic vice used for cutting bundles and rafts of material

Curve Cutting Sensor

A device for measuring the vertical tolerance, if the user defined parameter is exceeded the machine with end the cutting cycle

Swarf Brush

Fully adjustable swarf brush, essential for maximising blade life and improving cut finish.

Hydraulic Blade Guide

Solid carbide precision blade guides that are automatically tensioned hydraulically and relaxed when not in use.

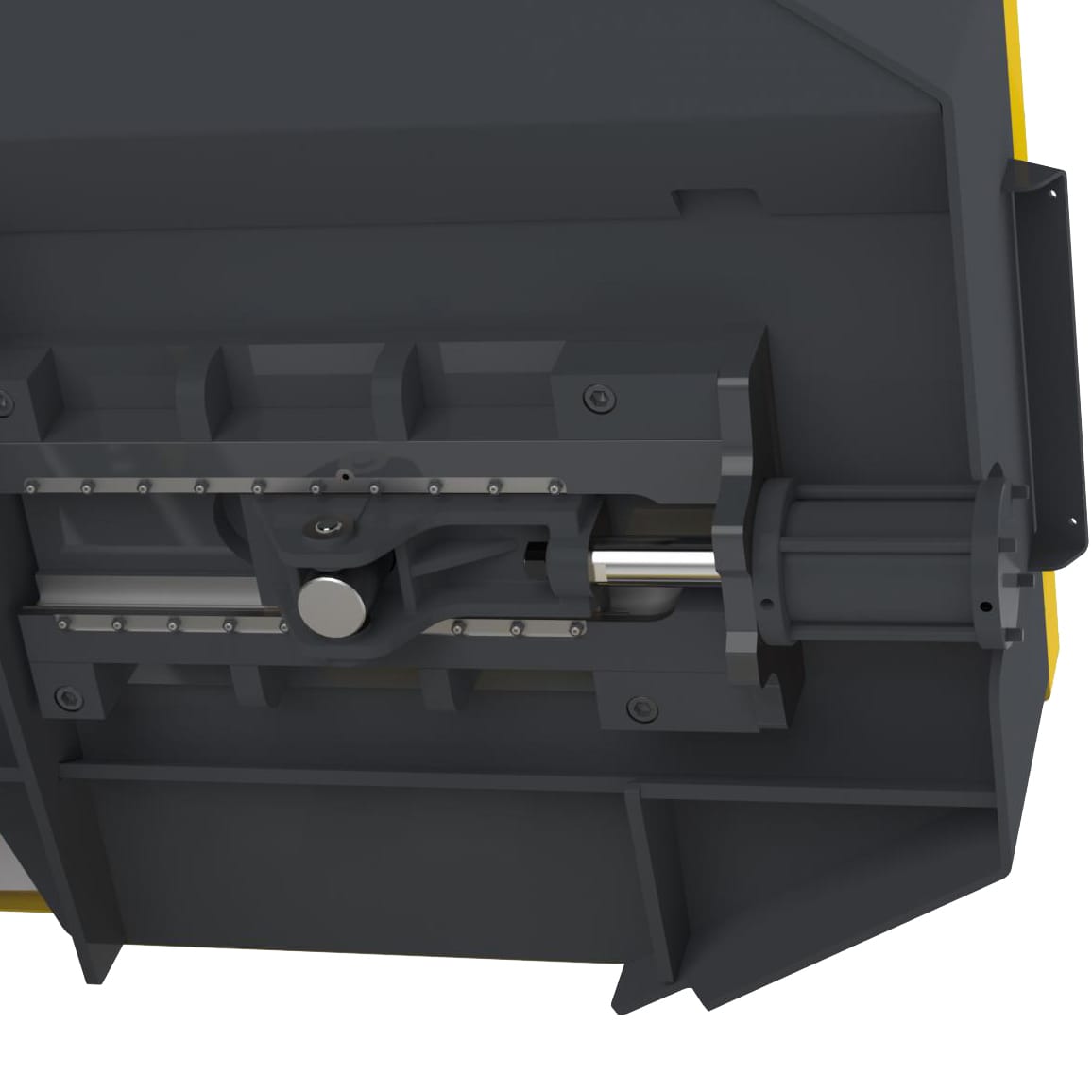

Hydraulic Vice

Full stroke hydraulic vice

Hydraulic Blade Tensioning Image
Hydraulic Blade Tension

Exact blade tension is applied using a hydraulic system

Synchronised Guide Arm

A very useful device that automatically synchronised the moving guide arm with the vice position. This guarantees optimum blade support at all times preserving blade life and optimising cutting performance.

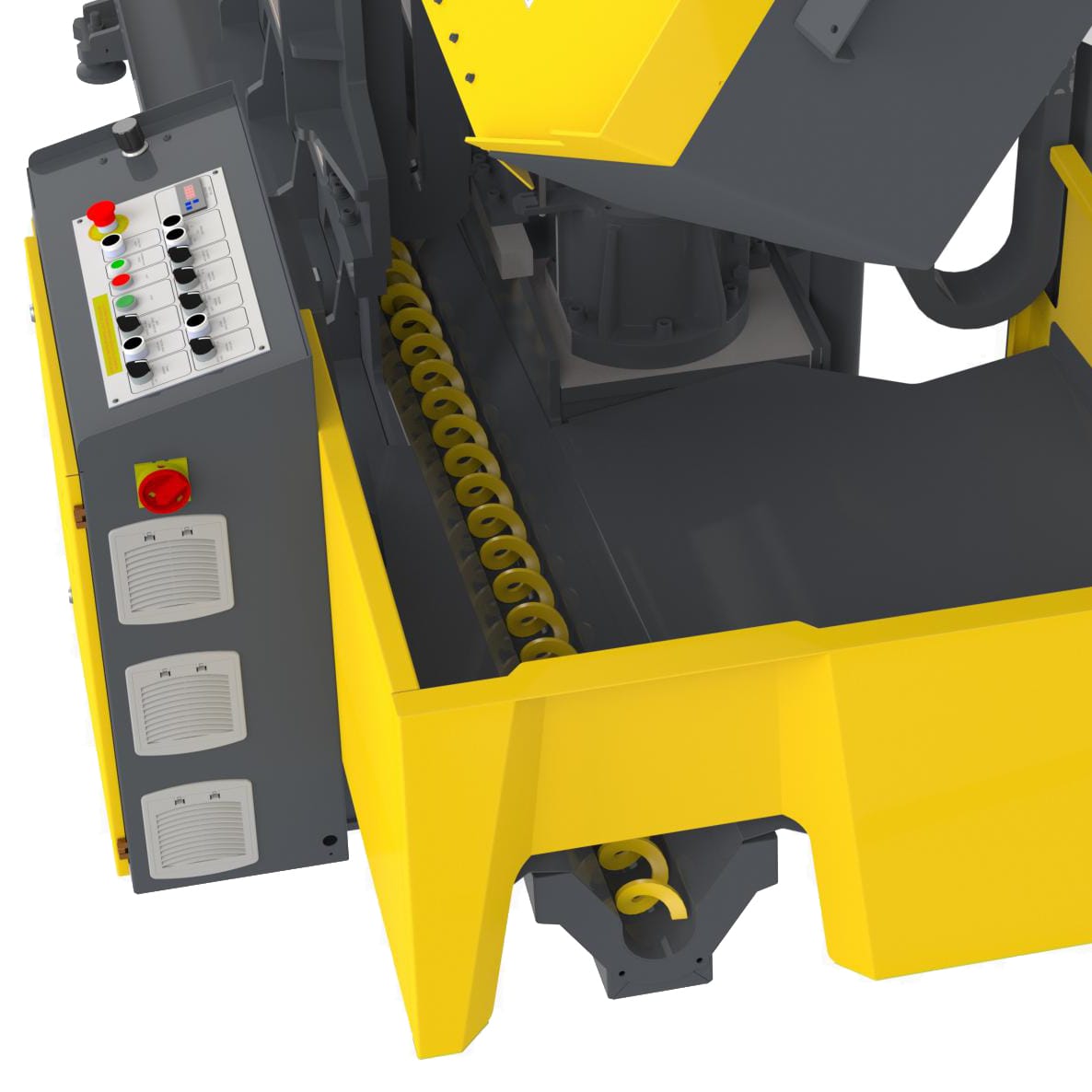

Swarf Conveyor

Helical type powered swarf removal system.

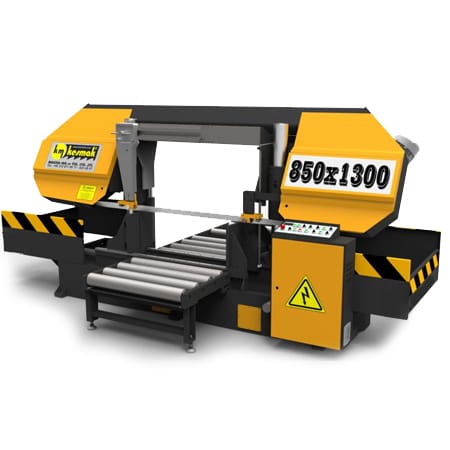

Roller table

2000mm roller support table with 7 rollers (image illustrates the optional powered unit)

Cutting Control

Control panel with inverter setting of the blade speed and precise control of the hydraulic down feed.

Cutting Stroke

Adjustable upper and lower limits for blade stroke to reduce cutting cycle times. Easily accessed from the front of the machine.

Roller System

Standard and custom length modules of free roller, or powered roller tables with chain and reduction gearbox transmission.

KSY 850X1300 Data Sheet
