Kesmak KSY 400-600 Band Saw - Addison Saws


Kesmak KSY 400-600 Band Saw

Semi-automatic Band saw 400mm capacity (round bar)
Strong stable twin column design
Large width cutting capacity
Full stroke hydraulic vice
Split vice for holding stock and cut piece
Vice stroke synchronized with guide arm
Blade breakage detection & auto shutdown
Bow return height selector with metric scale
Powered swarf remover

Kesmak KSY 400-600 Band Saw

Semi automatic twin column horizontal band saw for general production cutting of all types of steel and non ferrous metals. The heavy construction makes this saw ideal for tough solid materials and demanding production situations where proven performance and reliability are a major consideration.

Technical SpecificationsKSY 400-600 band saw
Capacity 90° – RoundØ 400 mm
Capacity 90° – Square400 x 400 mm
Capacity 90° – Rectangle400 x 600 mm
Blade Drive3 kW
Hydraulic Pump0,37 kW
Coolant Pump0,12 kW
Swarf Conveyor0, 18 kW
Blade Size4860 x 41 x 1.3 mm
Feeding Height745 mm
Vice Maximum Opening600 mm
Vice Minimum Opening90 mm
Vice Height265 mm
Height – Width – Length2100 x 1400 x 2600 mm
Weight1460 kg

kemak logo

Upper Clamp System

Vertical hydraulic vice used for cutting bundles and rafts of material.

Laser Line

Either a quality Addison fit German battery unit or factory fit powered item.

Curve Cutting Sensor

A device for measuring the vertical tolerance, if the user defined parameter is exceeded the machine with end the cutting cycle

Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Swarf Brush

Fully adjustable swarf brush, essential for maximising blade life and improving cut finish.

Hydraulic Vice

Full stroke hydraulic vice

Hydra-Mechanic Blade Tension

Manual blade tensioning with hydraulic gauge for precise setting of the blade strain.

Swarf Conveyor

Helical type powered swarf removal system.

1.2 Meter Roller Table

1200mm heavy duty roller support table

Cutting Control

Control panel with inverter setting of the blade speed and precise control of the hydraulic down feed.

Cutting Stroke

Adjustable upper and lower limits for blade stroke to reduce cutting cycle times. Easily accessed from the front of the machine.

Blade Guides

Very important to get this right in any bandsaw, heavy steel guide arms support a precision set of pre-twist roller bearings and solid carbide blade guides to give maximum precision and performance. Also features a saw frame made of heavier steel then normal on a machine of this capacity and price point.

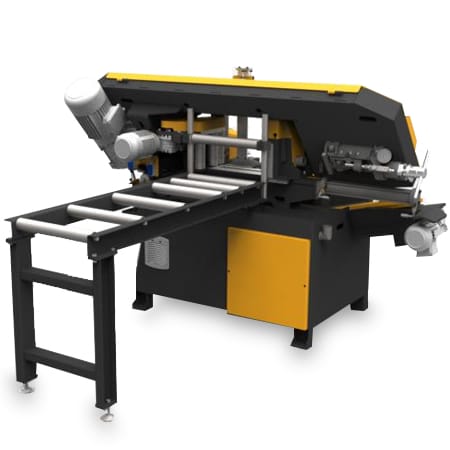

Heavy duty roller table with adjustable height. 1800mm length and either 350mm or 500mm width.

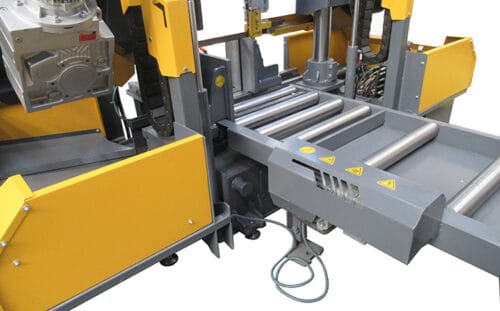

Powered Roller System

Standard and custom length modules of powered roller tables with chain and reduction gearbox transmission.
