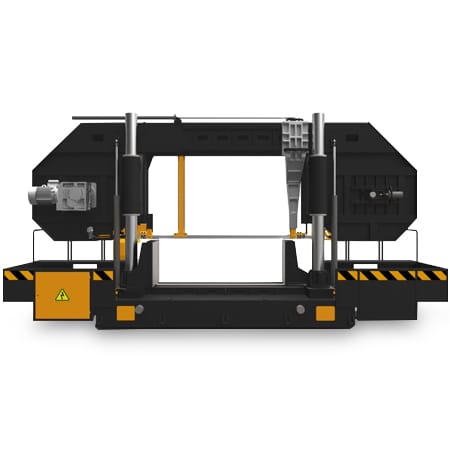

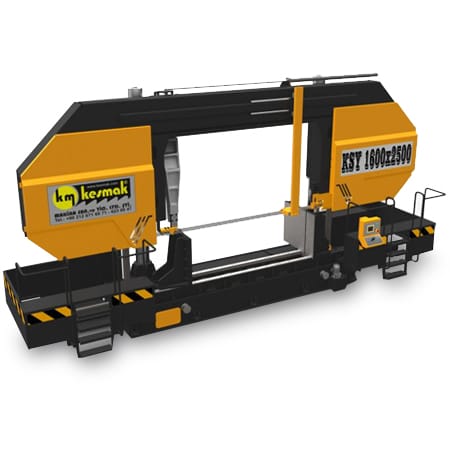

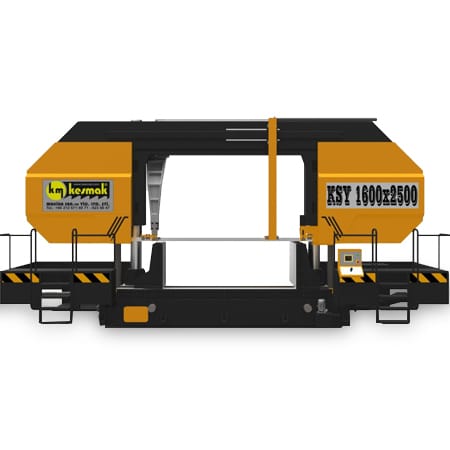

Kesmak KSY 1600-2500 Band Saw
Kesmak KSY 1600-2500 Band Saw - Image 2
Kesmak KSY 1600-2500 Band Saw - Image 3
Kesmak KSY 1600-2500 Band Saw - Image 4

Kesmak KSY 1600-2500 Band Saw

Strong stable twin column design
Large width cutting capacity
Full stroke hydraulic vice
Split vice for holding stock and cut piece
Hydraulic blade tensioning
Blade breakage detection & auto shutdown
Inclined cutting head to extend blade life
Blade cleaning brush
Roller table
Guide arm synchronized with the vice position
Add to quote
Category:

Kesmak KSY 1600-2500 Band Saw

Semi-automatic twin column industrial horizontal bandsaw for general production cutting of all types of steel and non-ferrous metals. Suitable for cutting round, square and rectangular materials.

Cutting capacities and machine specification:

TECHNICAL SPECIFICATIONSKSY 1600 x 2500
 Capacity 90° (mm) – RoundØ 1600
 Capacity 90° (mm) – Square1600 x 1600
 Capacity 90° (mm) – Rectangle1600 x 2500
Main Motor11 kW
Coolant Motor0,55 kW
Hydraulic Motor4 kW
Conveyor Motor0,18 kW
Blade Size16550 x 80 x 1,6
Coolant Tank Capacity230 ltr
Hydraulic Tank Capacity60 ltr
Feeding Height675 mm
Height-Width-Length4000x2000x8400 mm
Weight19000 kg
Band saw battery Laser Line Option Image
Laser Line

Either a quality Addison fit German battery unit or factory fit powered item.

Bundle Vice

Hydraulic vertical vice for bundle cutting, essential when bundle or raft cutting round tube or bar.

Addimist system image
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Curve Cutting Sensor

A device for measuring the vertical tolerance, if the user defined parameter is exceeded the machine with end the cutting cycle

Swarf Brush

Fully adjustable swarf brush, essential for maximising blade life and improving cut finish.

Hydraulic Vice

Full stroke hydraulic vice

Hydraulic Blade Tensioning Image
Hydraulic Blade Tension

Exact blade tension is applied using a hydraulic system

Synchronised Guide Arm

A very useful device that automatically synchronised the moving guide arm with the vice position. This guarantees optimum blade support at all times preserving blade life and optimising cutting performance.

Hydraulic Blade Guide

Solid carbide precision blade guides that are automatically tensioned hydraulically and relaxed when not in use.

Swarf Conveyor

Helical type powered swarf removal system.

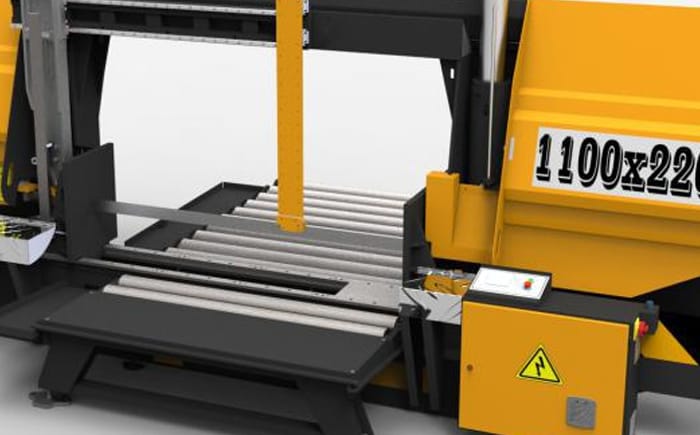

Roller table

Integral roller table on infeed and outfeed locations

Standard feature icon
Cutting Control

Via PLC system f

Roller System

Standard and custom length modules of free roller, or powered roller tables with chain and reduction gearbox transmission.

KSY1100x2200-to-1600x2500-Data-Sheet.pdf
