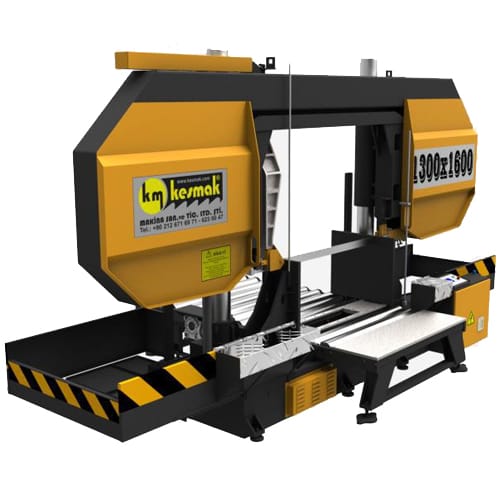

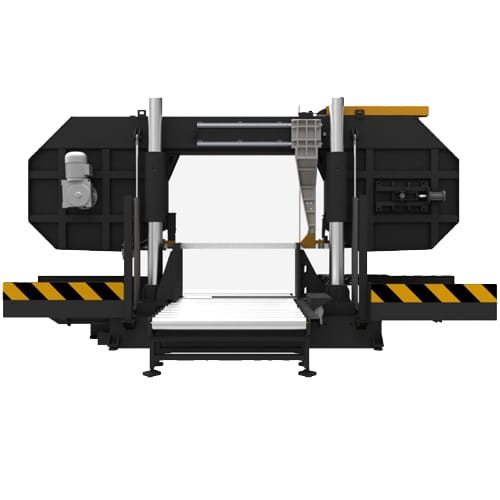

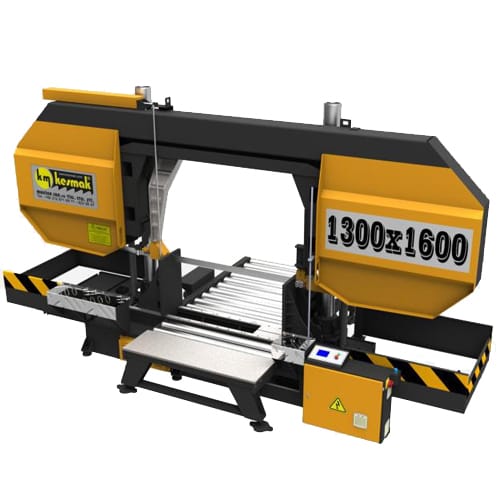

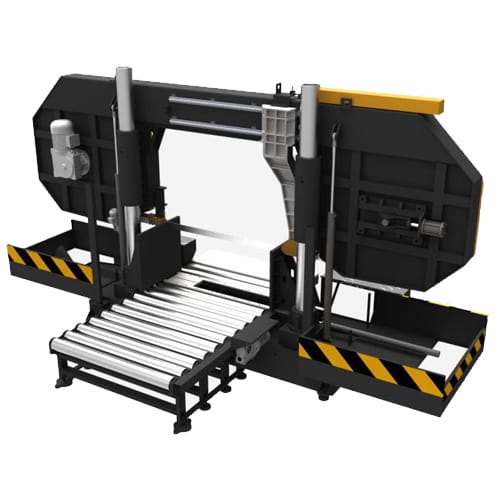

Kesmak KSY 1300-1600 Band Saw
Kesmak KSY 1300-1600 Band Saw - Image 2
Kesmak KSY 1300-1600 Band Saw - Image 3
Kesmak KSY 1300-1600 Band Saw - Image 4
Kesmak KSY 1300-1600 Band Saw - Image 5

Kesmak KSY 1300-1600 Band Saw

Strong stable twin column design
Large width cutting capacity
Full stroke hydraulic vice
Split vice for holding stock and cut piece
Hydraulic blade tensioning
Blade breakage detection & auto shutdown
Inclined cutting head to extend blade life
Blade cleaning brush
Roller table
Optional vertical bundle vice
Guide arm synchronized with the vice position
Scroll for more information ⬇️
Add to quote
Category:

Kesmak KSY 1300-1600

Semi-automatic twin column horizontal bandsaw for general production cutting of all types of steel and non-ferrous metals.

Technical Specifications KSY 1300 x 1600
Capacity 90° – Round Ø 1300 mm
Capacity 90° – Square 1300 x 1300 mm
Capacity 90° – Rectangle 1300 x 1600 mm
Blade Drive 11 kW
Hydraulic Pump 2,2 kW
Coolant Pump 0,55 kW
Swarf Conveyor 0, 18 kW
Blade Size 12950 x 80 x 1,6 mm
Feeding Height 600 mm
Vice Maximum Opening 1600 mm
Vice Minimum Closing 600 mm
Vice Height 800 mm
Height – Width – Length 3400 x 1800 x 6500
Weight 11600 kg
Band saw battery Laser Line Option Image
Laser Line

Either a quality Addison fit German battery unit or factory fit powered item.

Addimist system image
Addimist Lubrication System

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Upper Clamp System

Vertical hydraulic vice used for cutting bundles and rafts of material

Swarf Brush

Fully adjustable swarf brush, essential for maximising blade life and improving cut finish.

Hydraulic Blade Guide

Solid carbide precision blade guides that are automatically tensioned hydraulically and relaxed when not in use.

Hydraulic Vice

Full stroke hydraulic vice

Hydraulic Blade Tensioning Image
Hydraulic Blade Tension

Exact blade tension is applied using a hydraulic system

Curve Cutting Sensor

A device for measuring the vertical tolerance, if the user defined parameter is exceeded the machine with end the cutting cycle

Synchronised Guide Arm

A very useful device that automatically synchronised the moving guide arm with the vice position. This guarantees optimum blade support at all times preserving blade life and optimising cutting performance.

Swarf Conveyor

Helical type powered swarf removal system.

Roller table

Integral roller table on infeed and outfeed locations

Cutting Control

Control panel with inverter setting of the blade speed and precise control of the hydraulic down feed.

Cutting Stroke

Adjustable upper and lower limits for blade stroke to reduce cutting cycle times. Easily accessed from the front of the machine.

Roller System

Standard and custom length modules of free roller, or powered roller tables with chain and reduction gearbox transmission.

KSY 1300x1600 Data Sheet
