Semi Automatic | Straight Cut | Max Capacity 1100 mm (round)

Key Features

Strong stable twin column design
Large width cutting capacity
Full stroke hydraulic vice
Split vice for holding stock and cut piece
Hydraulic blade tensioning
Blade breakage detection & auto shutdown
Inclined cutting head to extend blade life
Blade cleaning brush
Roller table
Optional vertical bundle vice
Guide arm synchronized with the vice position
Scroll for more info ⬇️
Add to quote
Category:

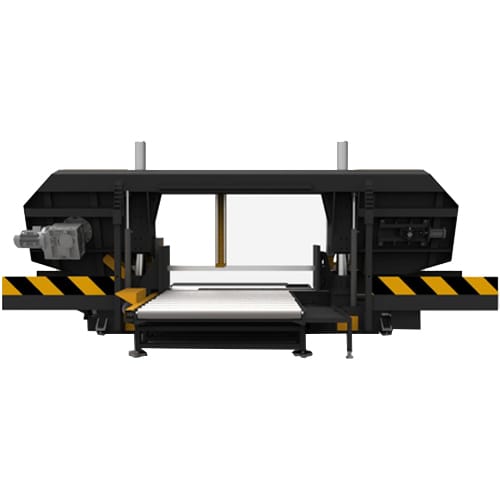

Kesmak KSY 1100-2200

Semi automatic twin column horizontal bandsaw for general and production cutting of all types of steel and non ferrous metals.

Technical Specifications KSY 1100×2200
Capacity 90° – Round Ø 1100
Capacity 90° – Square 1100×1100
Capacity 90° – Rectangle 1100×2200
Blade Drive 11 kW
Hydraulic Pump 2,2 kW
Coolant Pump 0,55 kW
Swarf Conveyor 0, 18 kW
Blade Size 11000 x 67 x 1,6 mm
Feeding Height 550 mm
Vice Maximum Opening 2200 mm
Vice Minimum Closing 600 mm
Vice Height 650 mm
Height – Width – Length 2750 x 1480 x 6660 mm
Weight 11000 kg
Band saw battery Laser Line Option Image
Laser Line

Either a quality Addison fit German battery unit or factory fit powered item.

Bundle Vice

Hydraulic vertical vice for bundle cutting, essential when bundle or raft cutting round tube or bar.

Addimist system image
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Curve Cutting Sensor

A device for measuring the vertical tolerance, if the user defined parameter is exceeded the machine with end the cutting cycle

Swarf Brush

Fully adjustable swarf brush, essential for maximising blade life and improving cut finish.

Hydraulic Vice

Full stroke hydraulic vice

Hydraulic Blade Tensioning Image
Hydraulic Blade Tension

Exact blade tension is applied using a hydraulic system

Synchronised Guide Arm

A very useful device that automatically synchronised the moving guide arm with the vice position. This guarantees optimum blade support at all times preserving blade life and optimising cutting performance.

Hydraulic Blade Guide

Solid carbide precision blade guides that are automatically tensioned hydraulically and relaxed when not in use.

Swarf Conveyor

Helical type powered swarf removal system.

Roller table

Integral roller table on infeed and outfeed locations

Cutting Control

Control panel with inverter setting of the blade speed and precise control of the hydraulic down feed.

Cutting Stroke

Adjustable upper and lower limits for blade stroke to reduce cutting cycle times. Easily accessed from the front of the machine.

Roller System

Standard and custom length modules of free roller, or powered roller tables with chain and reduction gearbox transmission.

KSY-1100x2200-Data-Sheet.pdf
