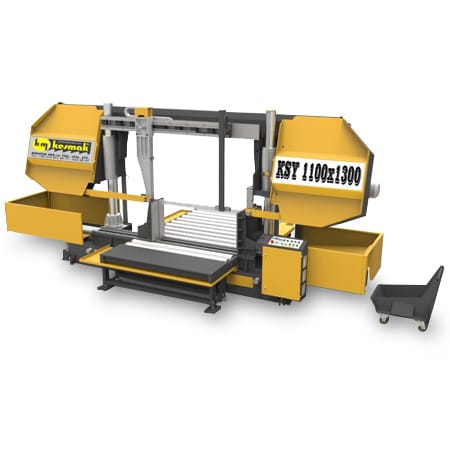

Kesmak KSY 1100-1300 band saw

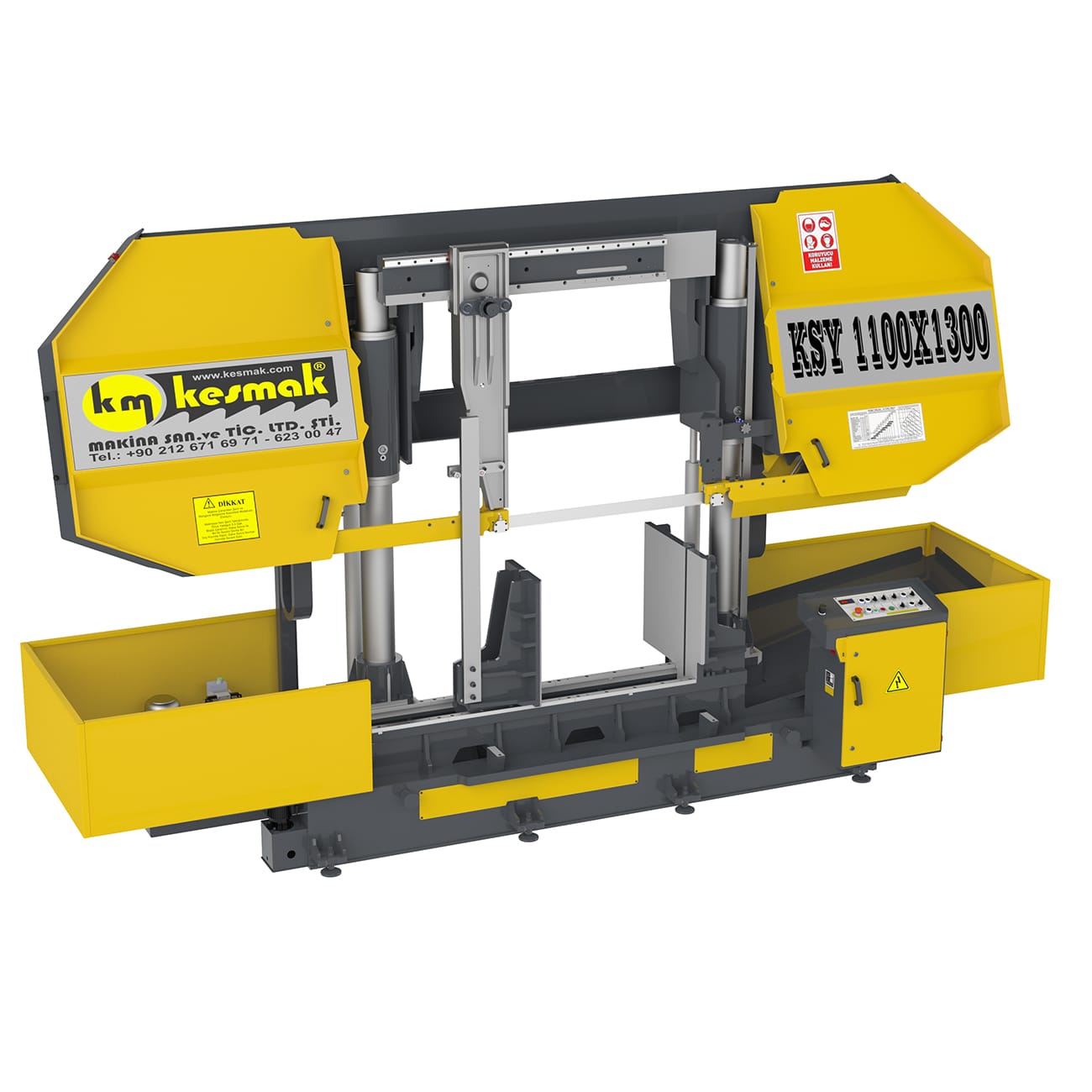

Kesmak KSY 1100-1300 band saw - Image 2

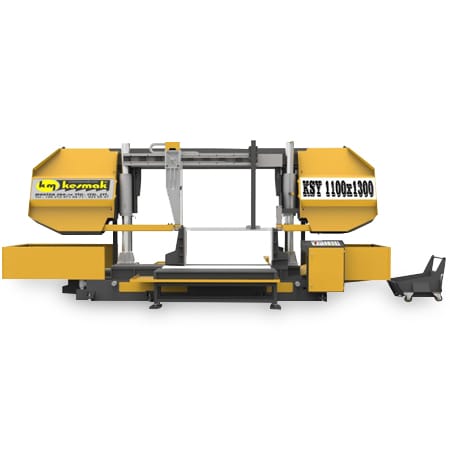

Kesmak KSY 1100-1300 band saw - Image 3
Kesmak KSY 1100-1300 band saw - Image 4

Kesmak KSY 1100-1300 band saw

Strong stable twin column design
Large width cutting capacity
Full stroke hydraulic vice
Split vice for holding stock and cut piece
Hydraulic blade tensioning
Inclined cutting head to extend blade life
Blade cleaning brush
Roller table
Add to quote
Category:

Kesmak KSY 1100-1300 Bandsaw

Semi automatic twin column horizontal bandsaw for general production cutting of all types of steel and non ferrous metals.

Technical Specifications KSY 1100×1300
Capacity 90° – Round Ø1100 mm
Capacity 90° – Square 1100 x 1100 mm
Capacity 90° – Rectangle 1100 x 1300 mm
Blade Drive Motor 7,5 kW
Hydraulic Pump 1,5 kW
Coolant Pump 0,12 kW
Swarf Conveyor 0, 18 kW
Blade Size 11000 x 67 x 1,6 mm
Feeding Height 500 mm
Vice Maximum Opening 1300 mm
Vice Minimum Closing 400 mm
Vice Height 650 mm
Height – Width – Length 2800 x 1700 x 5200 mm
Weight 7250 kg
Band saw battery Laser Line Option Image
Laser Line

Either a quality Addison fit German battery unit or factory fit powered item.

Addimist saw lubrication system
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Bundle Vice

Hydraulic vertical vice for bundle cutting, essential when bundle or raft cutting round tube or bar.

Swarf Brush

Fully adjustable swarf brush, essential for maximising blade life and improving cut finish.

Hydraulic Blade Guide

Hydraulic system to activate the solid carbide precision pressure guides, applying exactly the right force to ensure cutting accuracy and maximum performance without damaging the sawblade.

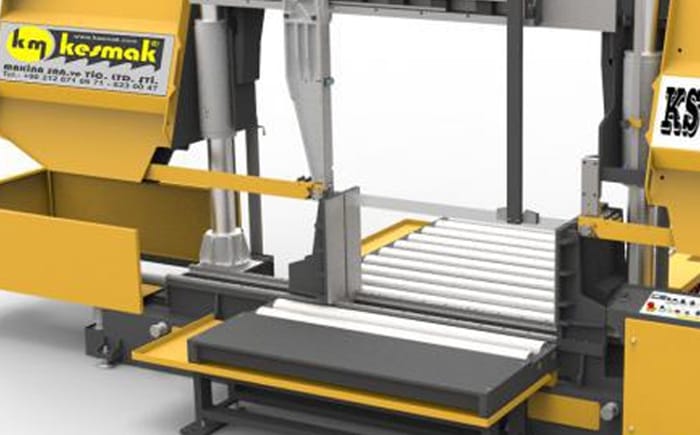

Vice

A full stroke quick acting hydraulic vice with split design to clamp both sides of the sawblade

Hydraulic Blade Tensioning Image
Blade Tension

Hydraulic blade tensioning system applies a measured and precise force to ensure maximum performance and blade life.

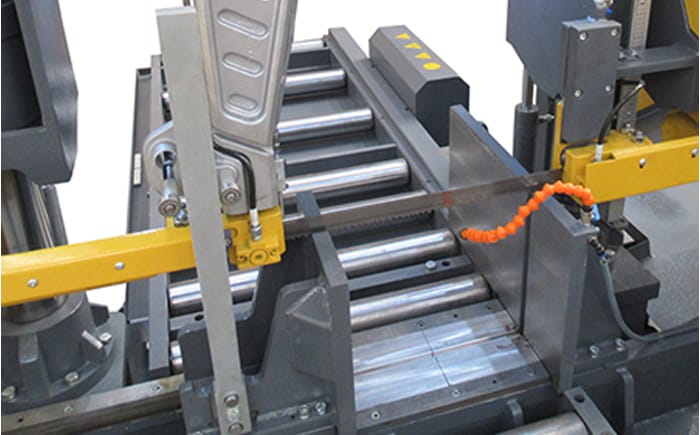

Arm Moving System With Vice

The mobile guide arm is automatically synchronised with the vice position ensuring maximum blade life and performance without operator intervention.

Swarf Conveyor

Mechanical screw type swarf conveyor

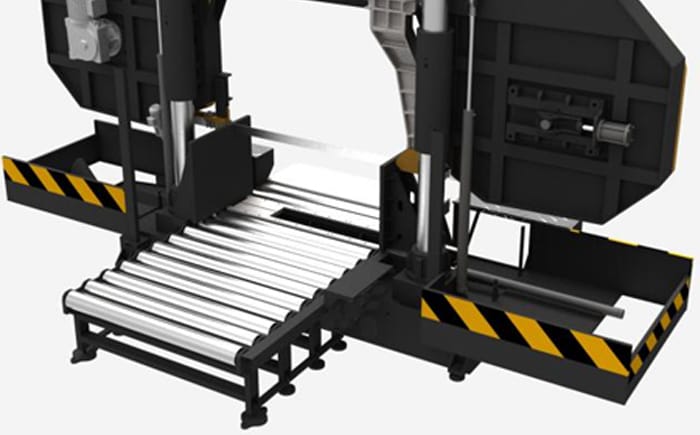

Roller Table

2 Meter Table With 7 Rollers

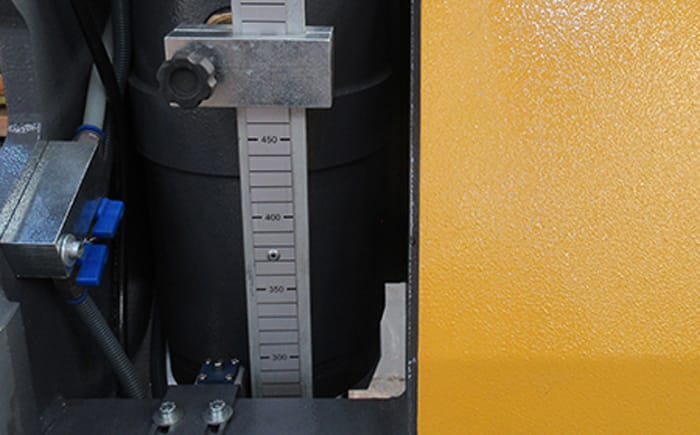

Manual Height Adjustment

Setting of the stroke upper ad lower limits to reduce cycle times.

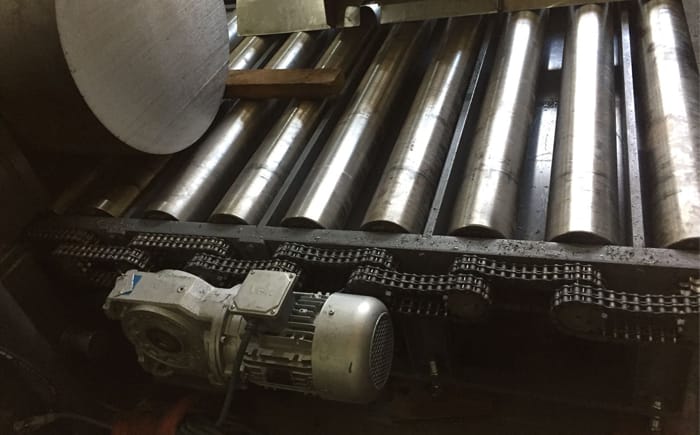

Powered Roller Table

Powered roller table modules with electric motor, gearbox and chain transmission for incrementing heavy material to the cut position.

KSY 1100X1300 Data Sheet
