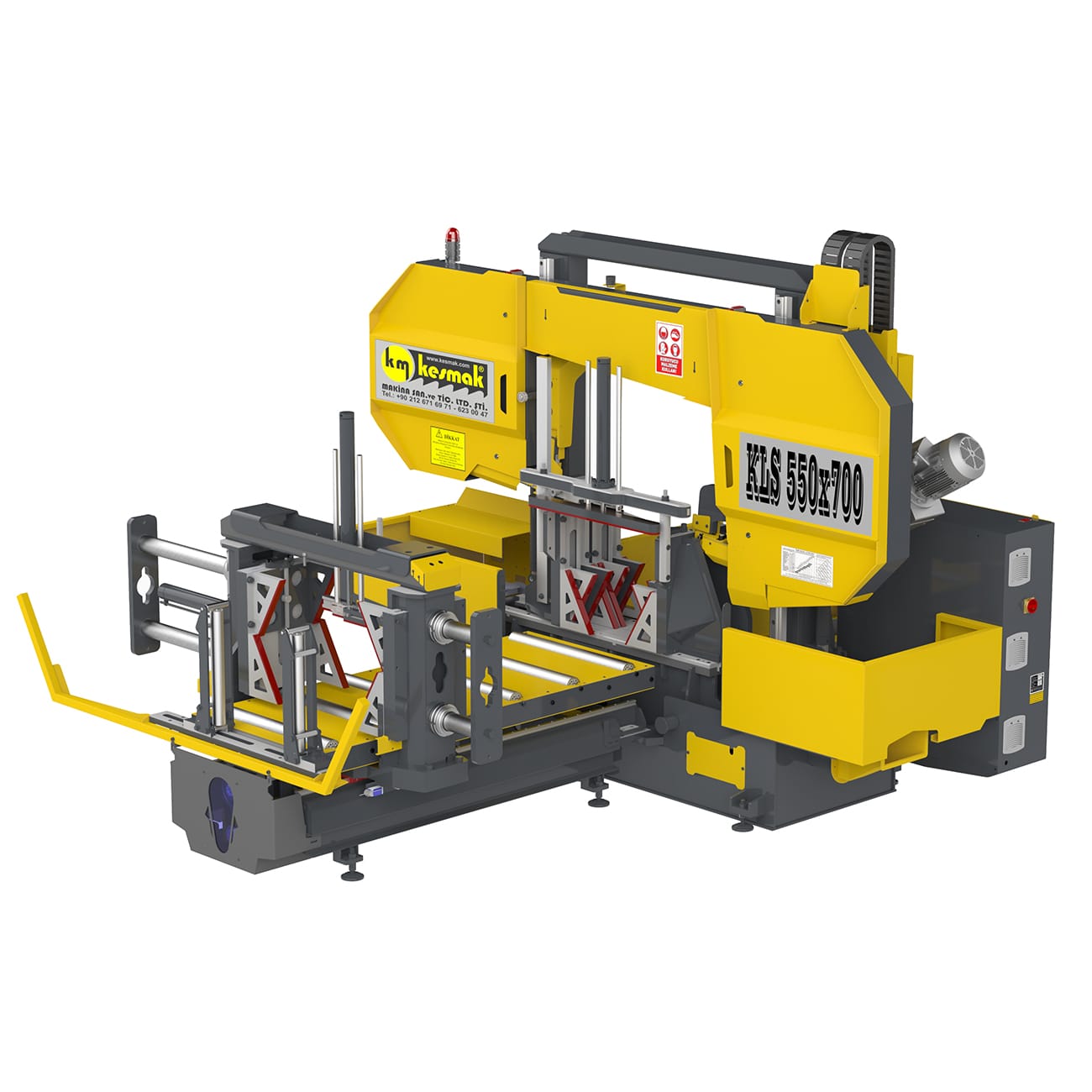

Kesmak KLS 550-700 CN Bandsaw

Heavy duty NC band saw with design features that give it a class leading performance and price. Highly recommended for production cutting of solids and sectional steels and alloys. This machine uses a precision 800mm servo drive ball screw feeder for accurate and consistent results.

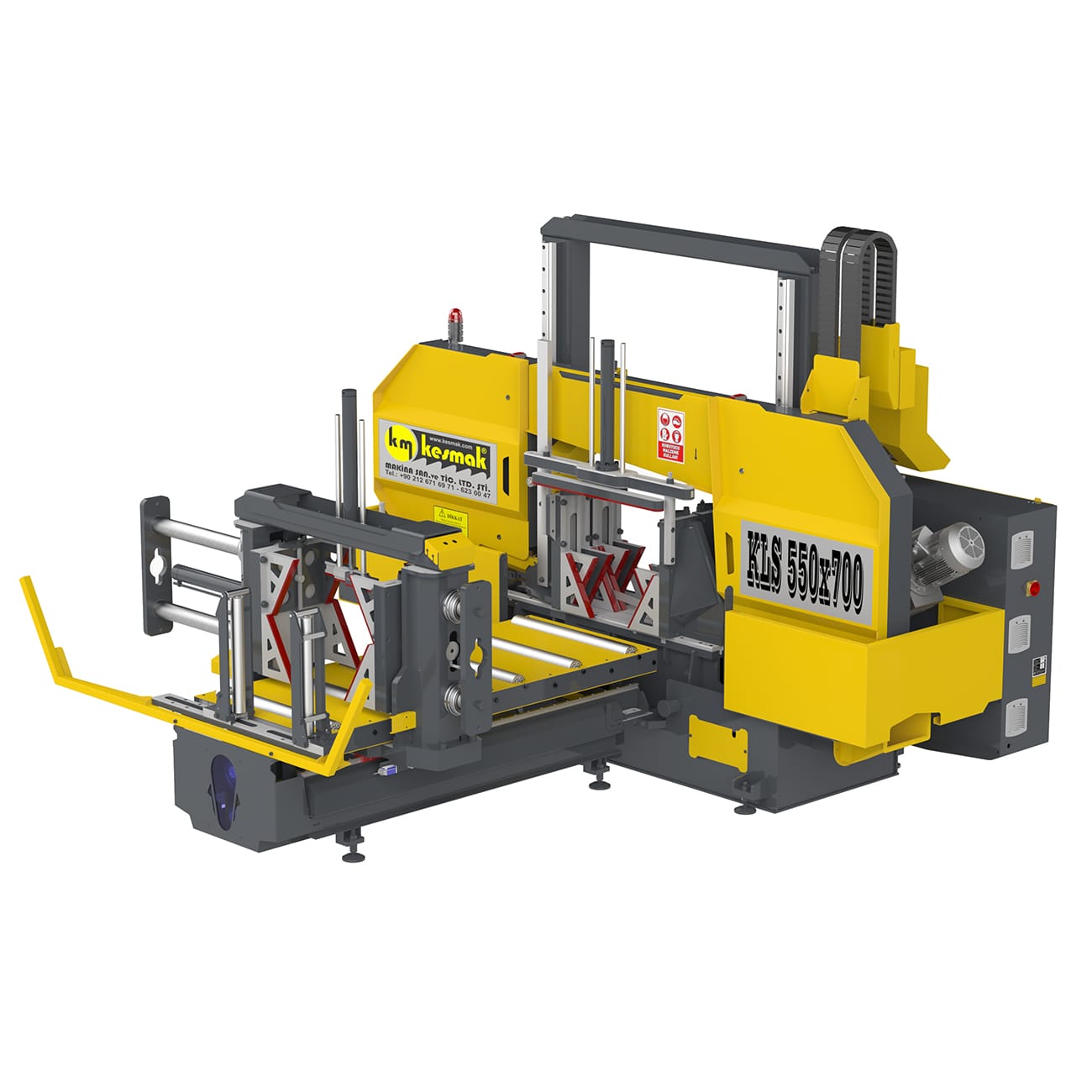

Please note, main images show optional hexagonal clamps.

Technical Specifications	KLS 550 x 700
Capacity 90° – Round	Ø 570 mm
Capacity 90° – Square	550 x 550 mm
Capacity 90° – Rectangle	550 x 700 mm
Bundle Cutting Maximum (mm)	Ø 550
Bundle Cutting Minimum (mm)	Ø 275
Blade Drive	4 kW
Hydraulic Pump	1,1 kW
Coolant Pump	0,12 kW
Feeding Motor	1,5 kW
Swarf Conveyor	0, 18 kW
Blade Size	7250 x 41 x 1,3 mm
Band Speed (m/min)	18 – 90 m/min
Feeding Height	530 mm
Vice Maximum Opening	700 mm
Vice Minimum Closing	220 mm
Vice Height	550 mm
Feed vice physical max stroke	1400mm
Weight	6100 kg
Height – Width – Length	2600 x 1300 x 3700 mm

Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Laser Line

Either a quality Addison fit German battery unit or factory fit powered item.

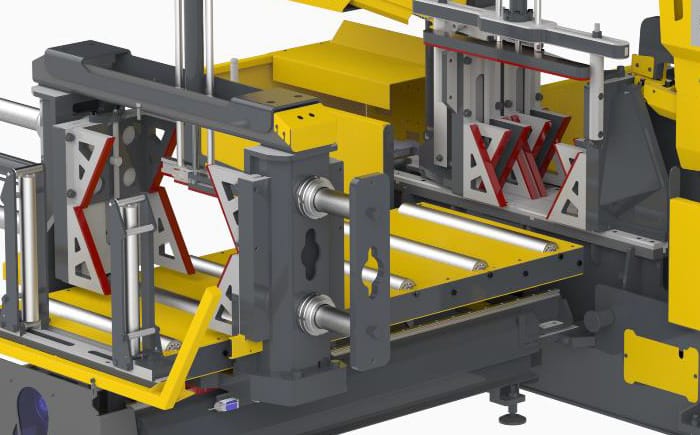

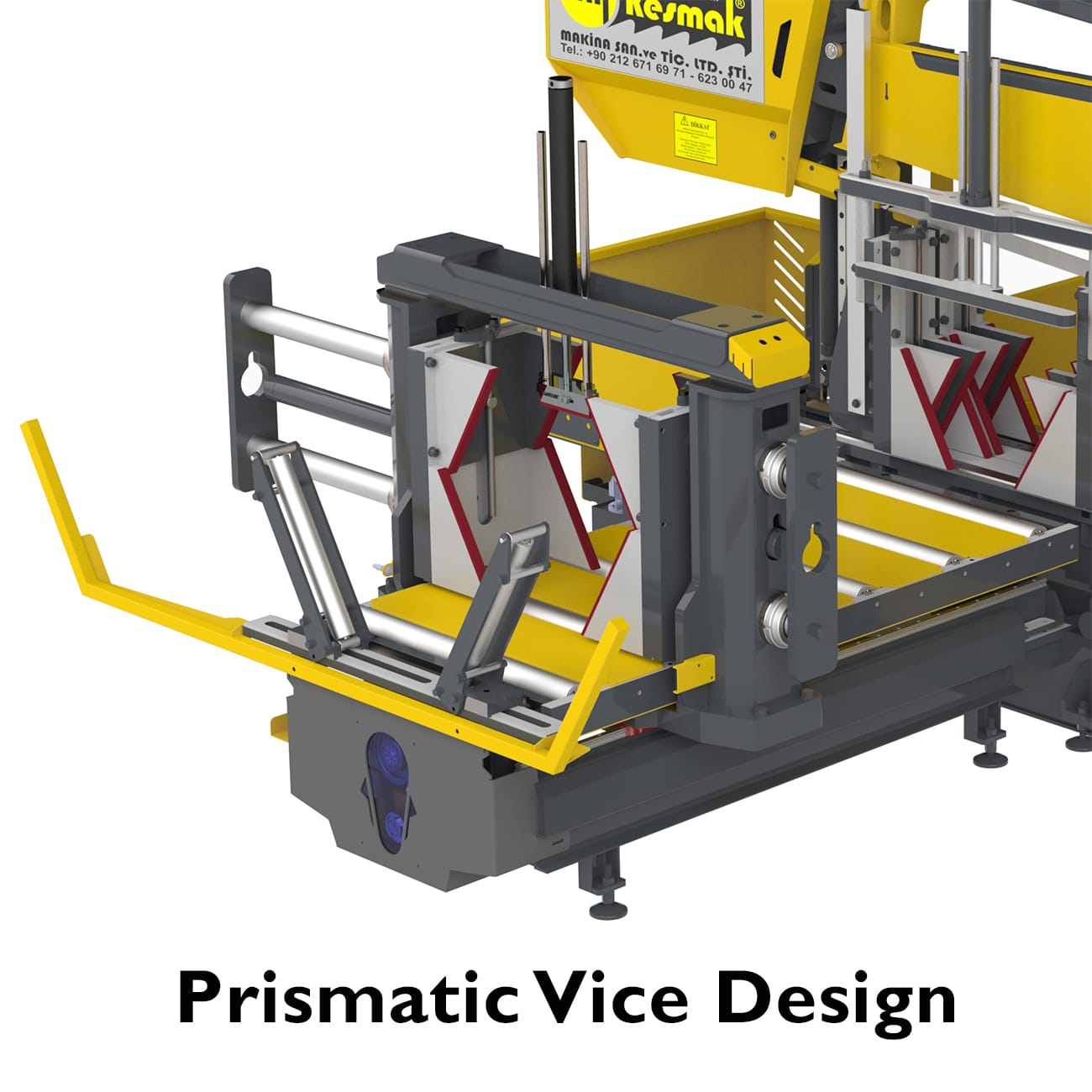

Hexagonal Vice

For bundle cutting of round tubes or some solids formed in a hexagonal bundle. The jaws interlock to create a flexible clamping area. Roller support tables with adjustable containment rollers are recommended

Vertical Vice

Hydraulic vertical vice for bundles and rafts of round and square material

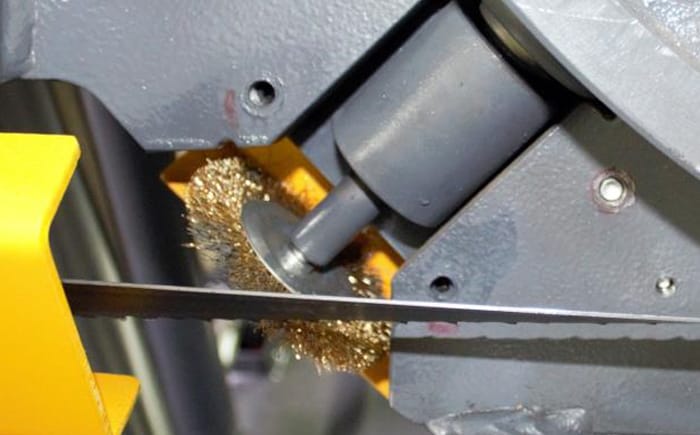

Swarf Brush

Fully adjustable swarf brush, powered directly from the bandwheel essential for maximising blade life and improving cut finish.

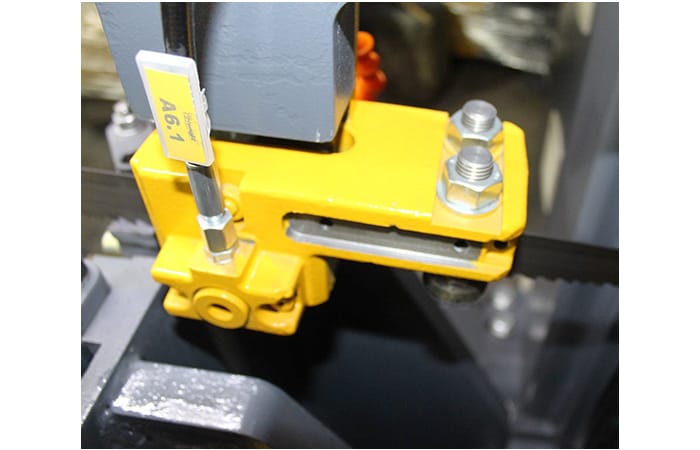

Hydraulic Blade Guide

Solid carbide precision blade guides that are automatically tensioned hydraulically and relaxed when not in use.

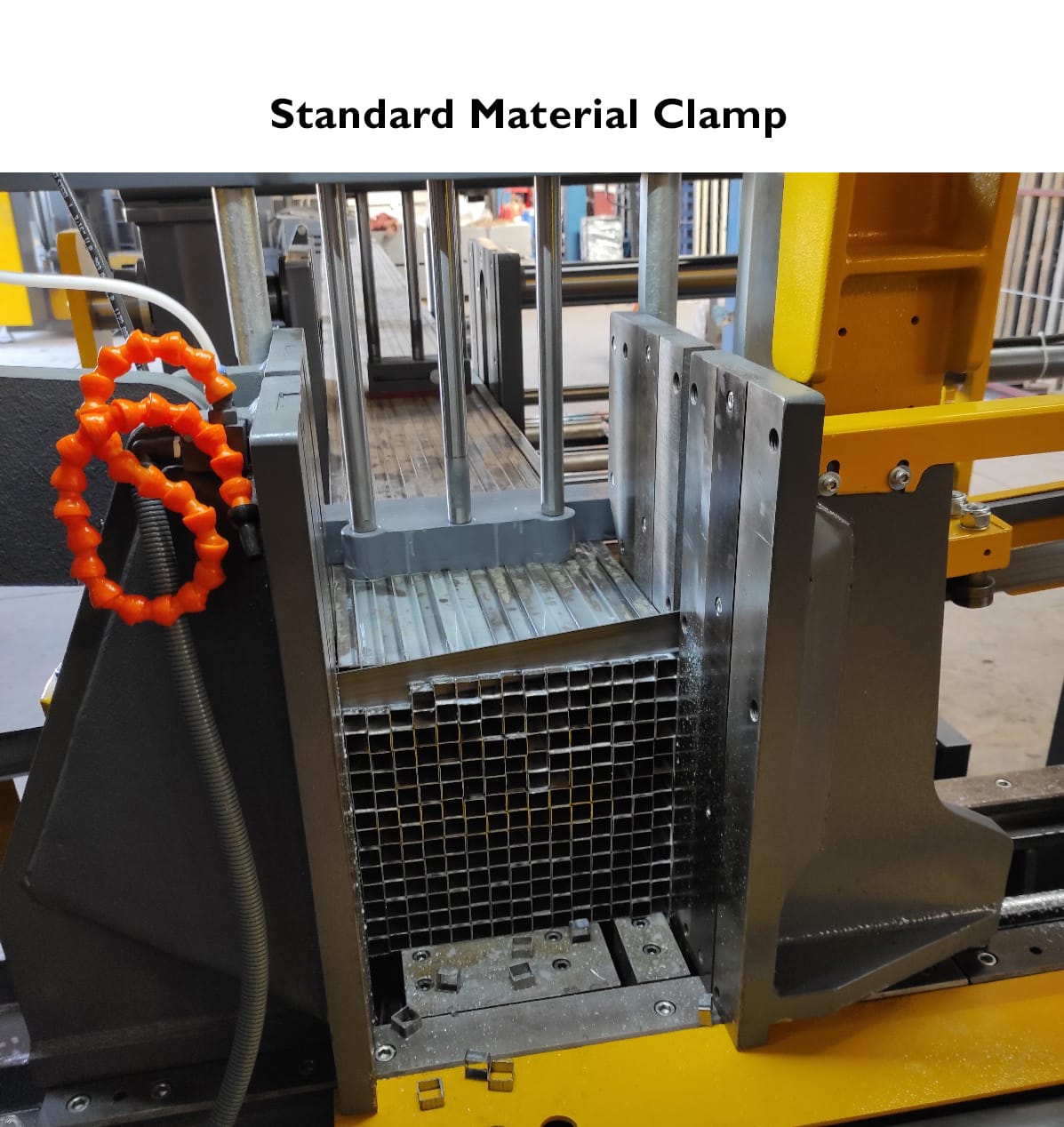

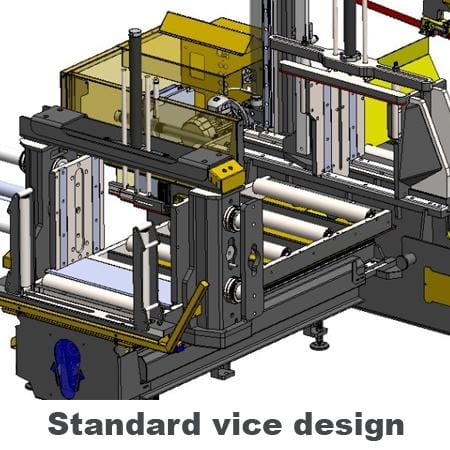

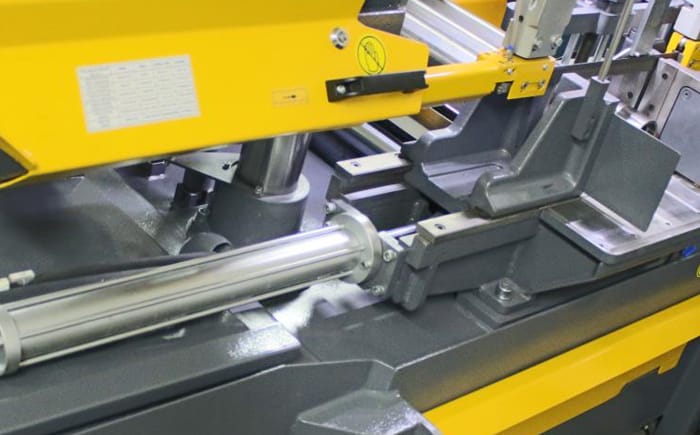

Hydraulic Vice

Full stroke hydraulic vice for main vice and feeder. The main vice is split to clamp both sides of the sawblade for more stability and no offcut break away nib.

Hydraulic Blade Tension

Exact blade tension is applied using a hydraulic system

Arm Moving System With Vice

A very useful device that automatically synchronised the moving guide arm with the vice position. This guarantees optimum blade support at all times preserving blade life and optimising cutting performance.

Swarf Conveyor

Helical type powered swarf removal system.

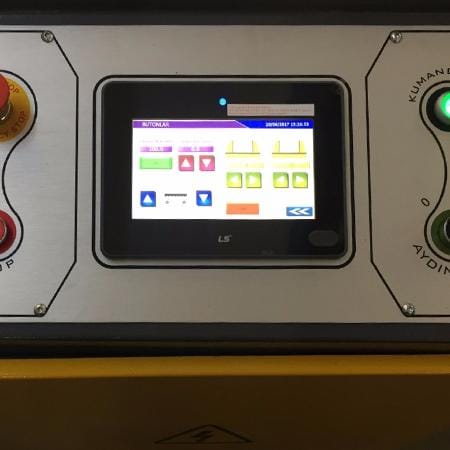

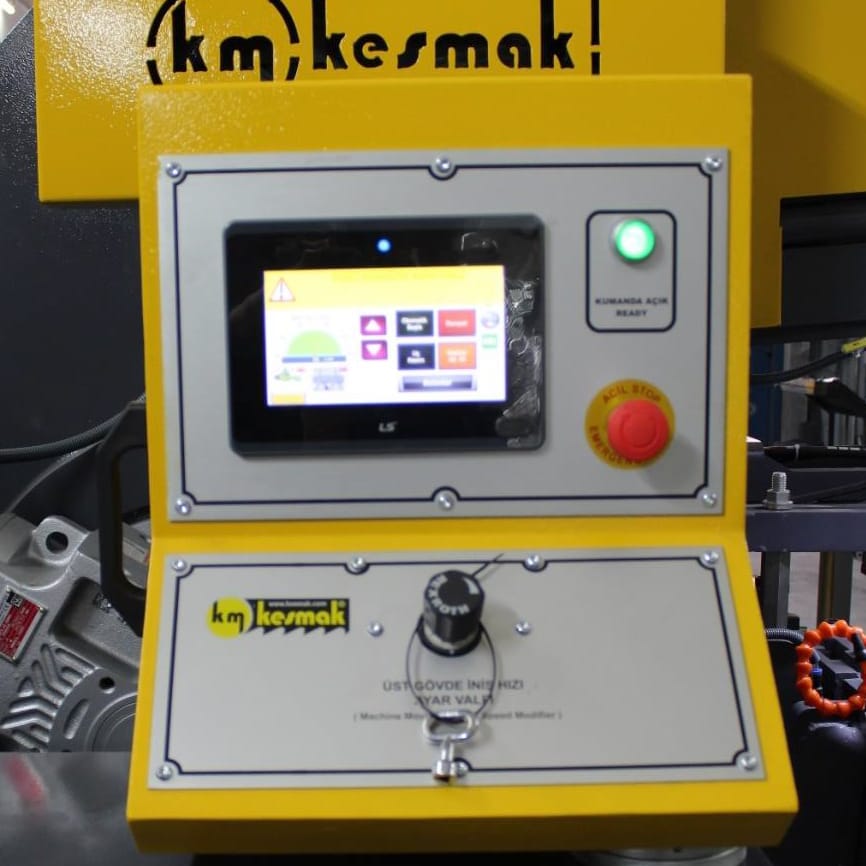

7" PLC touchscreen

Straight forward easy operation touch screen HMI for cutting data input. Cut length and number of pieces.

Additrak

1800mm roller support table either 350 or 500 mm wide with 2 x adjustable support legs.

Roller Tables

Custom built in definable lengths and widths
