Kesmak KSS 350 Bandsaw

Twin pillar automatic with incremental feed & NC control
NC control for cut length & number of pieces
Touch screen HMI
Programs for different cut lengths & piece qty
Swarf conveyor
Variable blade speed with inverter
Hydraulic blade tensioning
Material height detector with rapid approach
Aux roller tables
Full stroke hydraulic vice
Removable swarf collection tray
Split front vice for clamping stock & cut piece
Incremental ball screw feeder & DC motor drive

Kesmak KSS 350

Heavy-duty NC band saw with design features that give it a class-leading performance and price. Highly recommended for production cutting of solids and sectional steels and alloys. This machine uses a precision servo drive ball screw feeder for accurate and consistent results.

KSS 350
Capacity 90° – RoundØ 350 mm
Capacity 90° – Square350 x 350 mm
Capacity 90° – Rectangle350 x 400 mm
Bundle Cutting Max. Capacity –   RoundØ 190
Bundle Cutting Max. Capacity – Square190 x 190
Bundle Cutting Max. Capacity – Rectangle190 x 390
Bundle Cutting Min. Capacity – RoundØ 150
Bundle Cutting Min. Capacity – Square150 x 150
Bundle Cutting Min. Capacity – Rectangle150 x 90
Blade Drive Motor3 kW
Hydraulic Pump Motor1,1 kW
Coolant Pump Motor0,12 kW
Swarf Conveyor Motor0,18 kW
Servo Drive1,1 kW
Blade Size5350 x 34 x 1,1 mm
Coolant Tank Capacity60 ltr
Hydraulic Tank Capacity38 ltr
Feeding Height750 mm
Vice Maximum Opening400 mm
Vice Minimum ClosingZero
Vice Height180 mm
Sliding Length400 mm
H x W x L1750 x 2200 x 2600 mm
Weight2000 kg
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

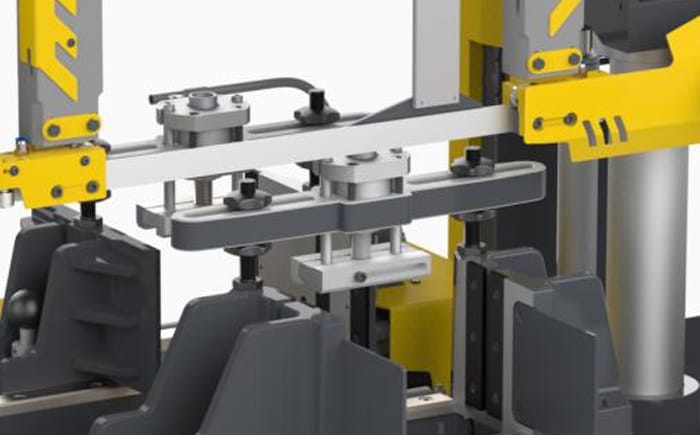

Bundle Vices

A pair of detachable vertical hydraulic bundle vices. For cutting nests and rafts of round stock material.

Laser Line

Either a quality Addison fit German battery unit or factory fit powered item.

Swarf Brush

Fully adjustable swarf brush, essential for maximising blade life and improving cut finish.

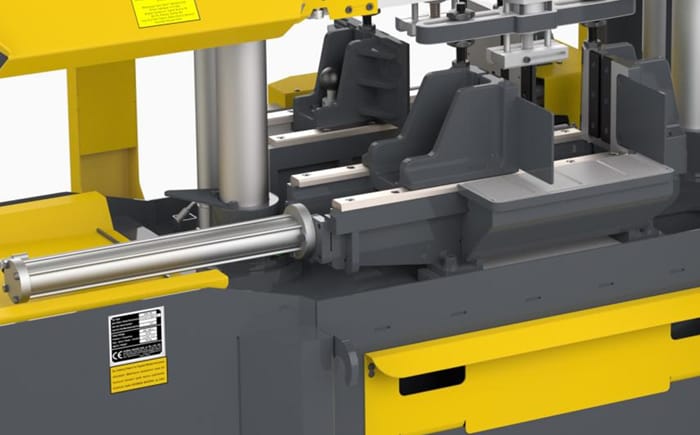

Hydraulic Vice

Full stroke hydraulic vice for main vice and feeder. The main vice is split to clamp both sides of the sawblade for more stability and no offcut break away nib.

Hydraulic Blade Tension

Exact blade tension is applied using a hydraulic system

Swarf Conveyor

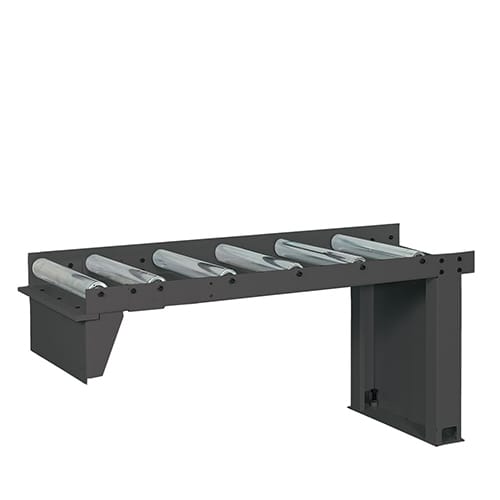

Roller Table

1200mm roller support table

Additrak

1800mm roller support table either 350 or 500 mm wide with 2 x adjustable support legs.
