Kesmak KSS 1100-1300 CN Bandsaw

NC control for cut length & number of pieces
Programs for different cut lengths & piece qty
Variable blade speed with inverter
Material height detector with rapid approach
Aux roller tables
Full stroke hydraulic vice
Removable swarf collection tray
Split front vice for clamping stock & cut piece
Incremental ball screw feeder + DC motor drive
Large capacity bandsaw - Max material diameter of 1100 mm
Scroll down for specification, optional extras, videos & more ⬇️

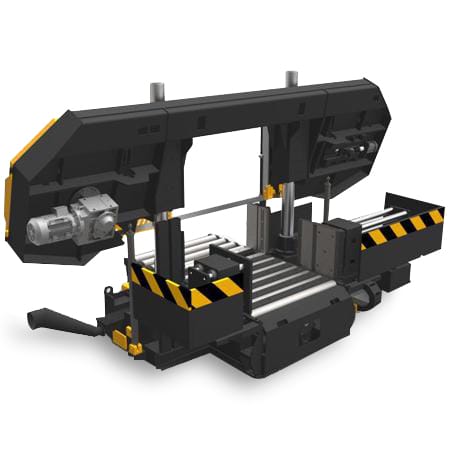

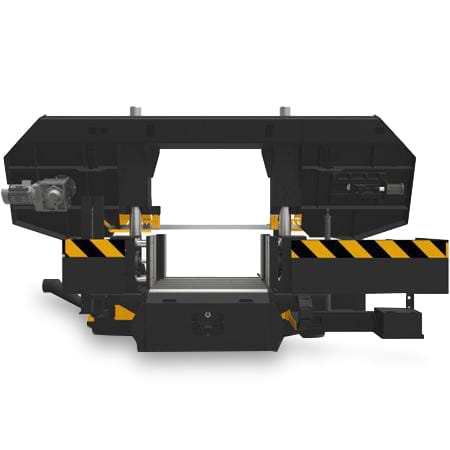

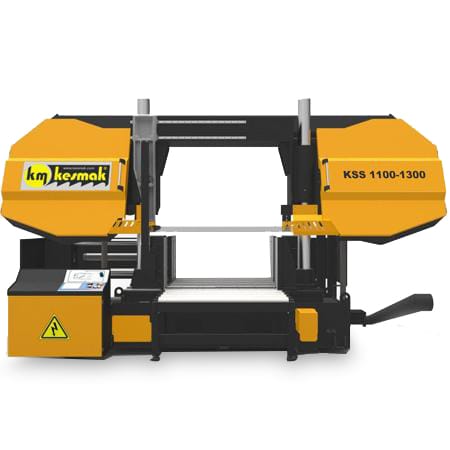

Kesmak KSS 1100-1300 CN Bandsaw

Heavy duty NC band saw with design features that give it a class leading performance and price. Highly recommended for production cutting of large solids and sectional steels and alloys. This machine uses a precision servo drive ball screw feeder for accurate and consistent results.

Technical Specifications KLS 1100 x 1300
Capacity 90° – Round Ø 1100 mm
Capacity 90° – Square 1100 x 1100 mm
Capacity 90° – Rectangle 1100 x 1300 mm
Blade Drive 7,5 kW
Hydraulic Pump 2,2 kW
Coolant Pump 1,1 kW
Servo Motor 3,5 kW
Swarf Conveyor 0, 18 kW
Blade Size 11590 x 80 x 1,6 mm
Feeding Height 653 mm
Feeding Length 400 mm
Vice Maximum Opening 1300 mm
Vice Maximum Closing 350 mm
Vice Height 600 mm
Height – Width – Length 3300 x 2400 x 5300 mm
Weight 12000 kg
Addimist system image
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Band saw battery Laser Line Option Image
Laser Line

Either a quality Addison fit German battery unit or factory fit powered item.

Vertical Vice

Hydraulic vertical vice for bundles and rafts of round and square material

Swarf Brush

Fully adjustable swarf brush, powered directly from the bandwheel essential for maximising blade life and improving cut finish.

Hydraulic Blade Guide

Solid carbide precision blade guides that are automatically tensioned hydraulically and relaxed when not in use

Hydraulic Vice

Full stroke hydraulic vice for main vice and feeder. The main vice is split to clamp both sides of the sawblade for more stability and no offcut break away nib.

Hydraulic Blade Tension

Exact blade tension is applied using a hydraulic system

Arm Moving System With Vice

A very useful device that automatically synchronised the moving guide arm with the vice position. This guarantees optimum blade support at all times preserving blade life and optimising cutting performance.

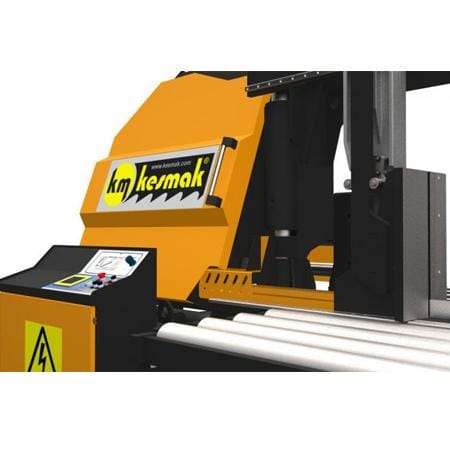

7" PLC touchscreen

Straight forward easy operation touch screen HMI for cutting data input. Cut length and number of pieces. Up to 120 Cutting Programs

Swarf Conveyor

Roller Tables

Custom built in definable lengths and widths
