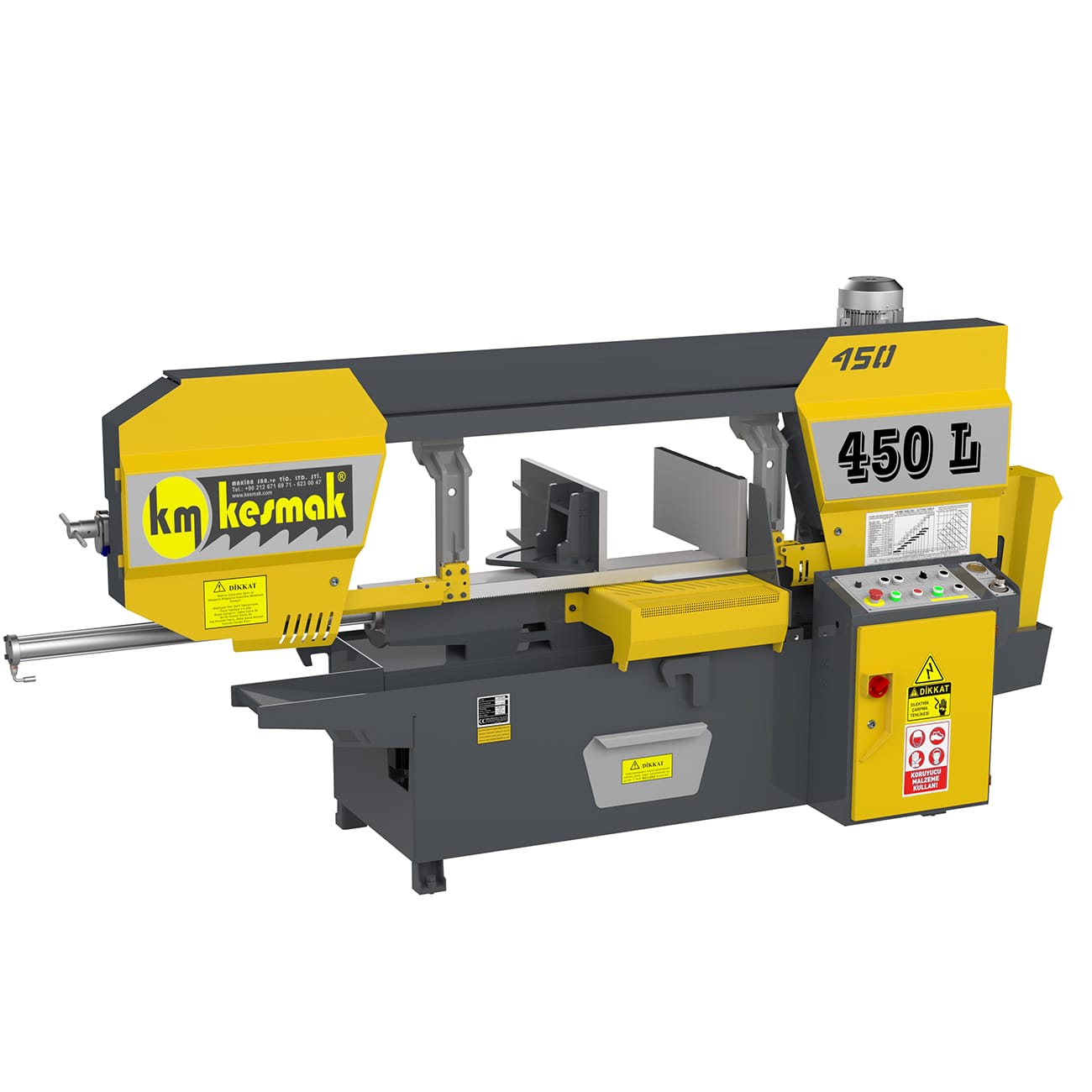

Kesmak KMY 450L Band saw

Semi automatic vice mitre Bandsaw
Full stroke hydraulic vice
Inverter variable blade speed control
Electric flood coolant (option for micro-mist)
Blade breakage detection & auto-shutdown
Removable swarf collection tray
Blade cleaning brush
Roller table
Adjustable saw bow return height selector
Massive cutting capacity

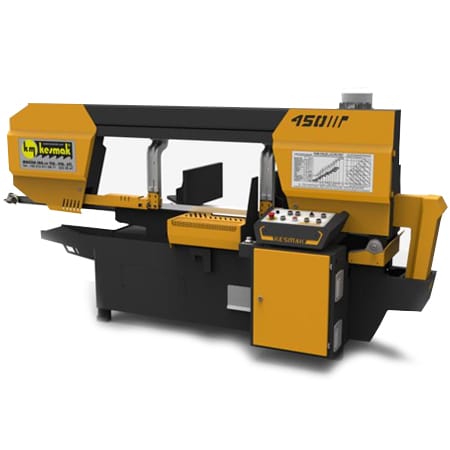

Kesmak KMY 450 Band saw

Semi automatic horizontal fixed head bandsaw for general production cutting of all types of steel and non ferrous metals.

KMY 450L
Capacity 90° Round Ø450mm
Capacity 90° Square 450 x 450mm
Capacity 90° Rectangle 450 x 850mm
Blade Dimensions 5780 x 41mm
Cutting Table Height 780mm
Vice Max opening 900mm
Vice Min opening Zero
Vice Jaw height 260mm
 Vice Type Full stroke hydraulic
 Blade Speed range 20-100 m/min variable
 Blade Tensioning Manual with hydraulic gauge
 Machine Dimensions H-W-L 1680 x 1950 x 3200mm
 Machine Weight 1410kg
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Laser Line

Either a quality Addison fit German battery unit or factory fit powered item.

Swarf Brush

Fully adjustable swarf brush, essential for maximising blade life and improving cut finish.

Hydraulic Vice

Full stroke hydraulic vice

Blade Tension

Manual blade tensioning with hydraulic gauge for precise setting of the blade strain

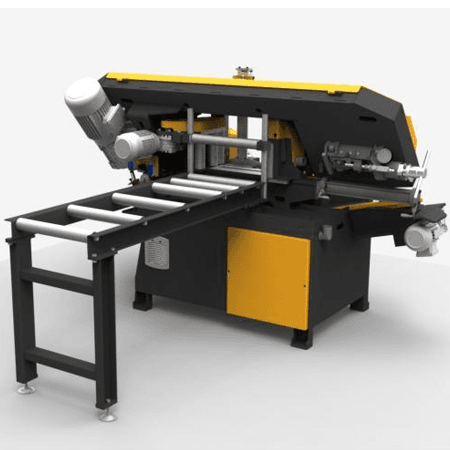

Roller Table

1200mm mobile roller support table

Cutting Stroke

Adjustable upper and lower limits for blade stroke to reduce cutting cycle times.

Blade Guides

Very important to get this right in any bandsaw, heavy steel guide arms support a precision set of pre-twist roller bearings and solid carbide blade guides to give maximum precision and performance. Also features a saw frame made of heavier steel then normal on a machine of this capacity and price point

Additrack

Heavy duty roller table with adjustable height. 1800mm length and either 350mm or 500mm width.
