Kesmak KMY 350 Band saw

Semi automatic vice mitre Bandsaw
Precision scale for accurate angle setting
Swivel vice for one way mitre cuts to 40deg
Full stroke hydraulic vice
Inverter variable blade speed control
Electric flood coolant (option for micro-mist)
Blade breakage detection with auto shutdown
Removable swarf collection tray
Blade cleaning brush
Roller table
Adjustable saw bow return height selector
Add to quote

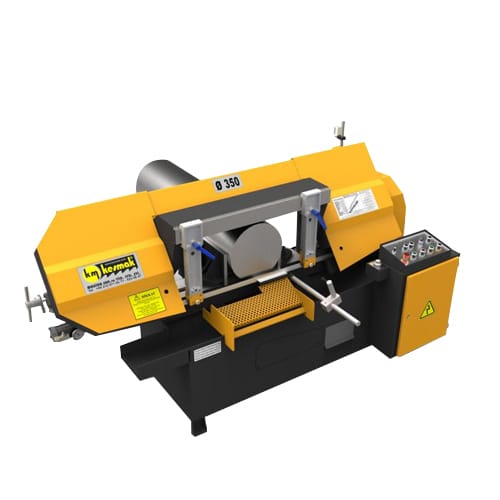

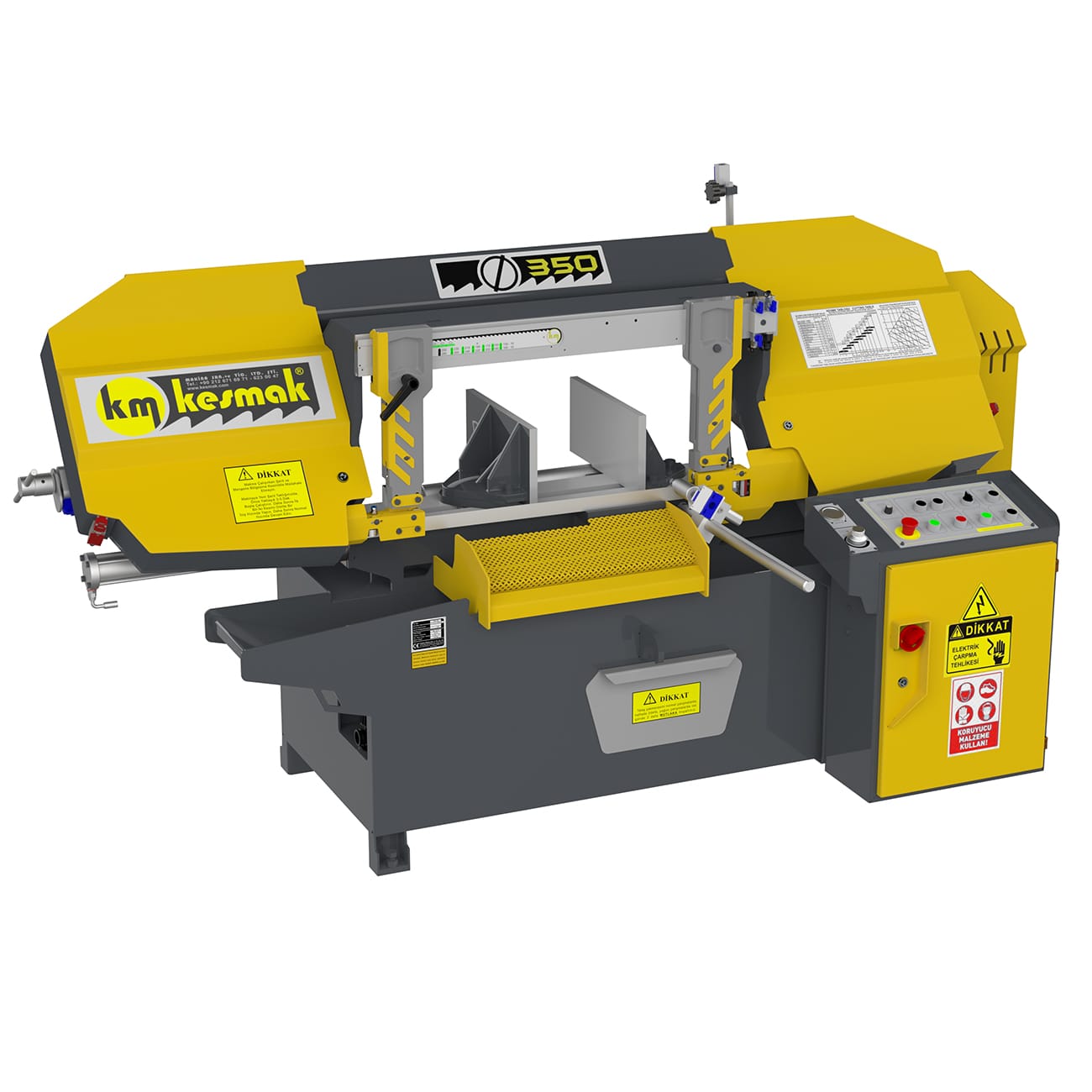

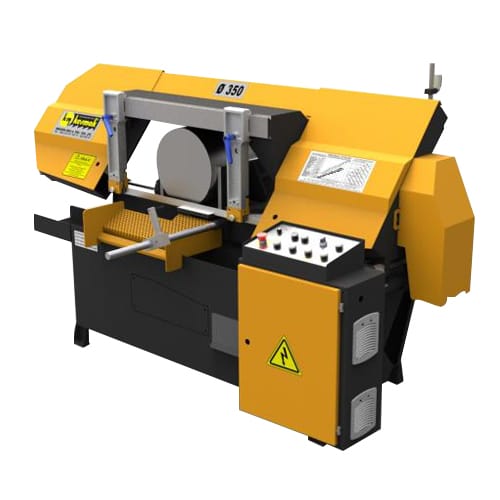

Kesmak KMY 350 Band Saw

Semi automatic horizontal one way mitre bandsaw with angle cutting 90° – 45° for general production cutting of all types of steel and non ferrous metals.

Capacity 90° Round Ø 350mm
Capacity 90° Square 330 x 330mm
Capacity 90° Rectangle 330 x 500mm
Capacity 45° Round Ø 290mm
Capacity 45° Square 280 x 280mm
Capacity 45° Rectangle 300 x 210mm
Motor Power Blade 2.2kw
Motor Power Coolant pump 0.18kw
Motor Power Hydraulic pump 0.12kw
Blade Dimensions Length – Width 4860 x 34mm
Cutting table Height 745mm
Vice Maximum opening 500mm
Vice Minimum opening Zero
Vice Height 195mm
Dimensions H-W-L 1430 x 1310 x 2620 mm
Machine Weight 1040kg
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Hydraulic Upper Clamp

Vertical hydraulic vice for bundle cutting applications.

Laser

Either a quality Addison fit German battery unit or factory fit powered item.

Swarf Brush

Fully adjustable swarf brush, essential for maximising blade life and improving cut finish.

Hydraulic Vice

Full stroke hydraulic vice

Blade Tension

Manual blade tensioning with hydraulic gauge for precise setting of the blade strain.

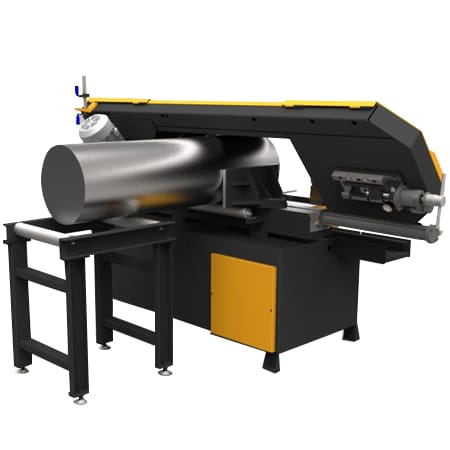

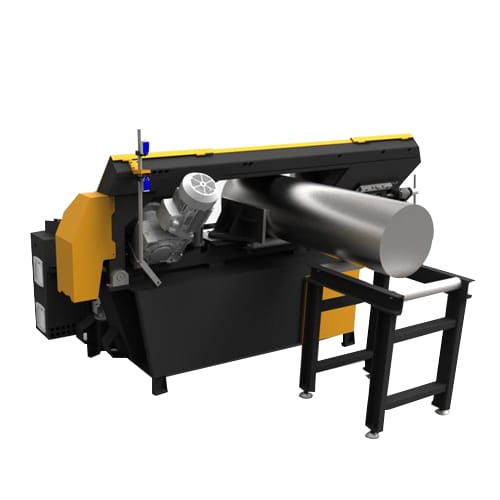

Roller Table

1200mm roller support table.

Cutting Stroke

Adjustable upper and lower limits for blade stroke to reduce cutting cycle times.

Blade Guides

Very important to get this right in any bandsaw, heavy steel guide arms support a precision set of pre-twist roller bearings and solid carbide blade guides to give maximum precision and performance. Also features a saw frame made of heavier steel then normal on a machine of this capacity and price point.

Additrack

Heavy duty roller table with adjustable height. 1800mm length and either 350mm or 500mm width.

Kesmak KMY 350 Data sheet
