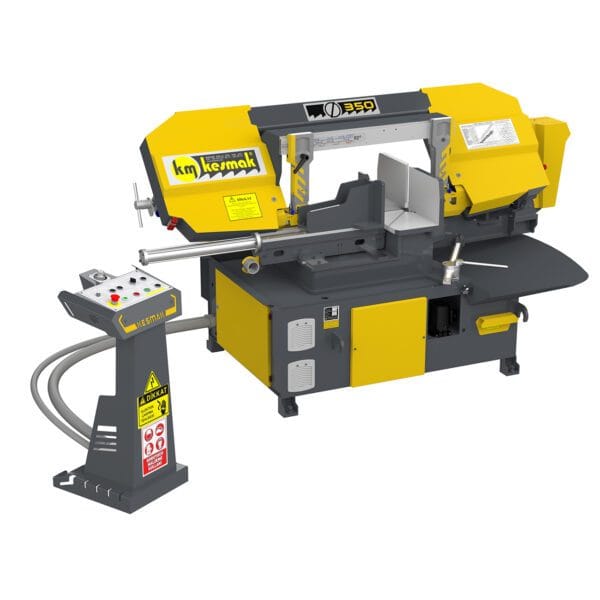

Kesmak KMY 2DG 350

Semi Automatic Mitre Bandsaw 350 X 500mm
2 Way swing head for easy mitre cuts
Large width cutting capacity
Remote control panel
Manual blade tensioning with hydraulic gauge
Blade breakage detection with auto shutdown
Precision gauge for angle setting
Blade cleaning brush
Roller table
Electric flood coolant system

Kesmak KMY 2DG 350

Semi automatic left/right swing head bandsaw ideal for structural steel, sectional material and solids.

KMY 2DG 350
Capacity 90° Round Material Ø350mm
Capacity 90° Square Material 350 x 350mm
Capacity 90° Rectangular material 350 x 500mm
Capacity ±60° Round Material Ø350mm
Capacity ±60° Square Material 330 x 330mm
Capacity ±60° Rectangular material 330 x 450mm
Capacity +45° Round Material Ø340mm
Capacity +45° Square Material 300 x 300mm
Capacity +45° Rectangular material 250 x 320mm
Capacity -45° Round Material Ø320mm
Capacity -45° Square Material 200 x 200mm
Capacity -45° Rectangular material 200 x 380mm
Capacity -30° Round Material Ø210mm
Capacity -30° Square Material  180 x 180mm
Capacity -30° Rectangular material  160 x 200mm
Vice Maximum opening  500mm
Vice Minimum opening  Zero
Vice Jaw height  240mm
Blade Dimensions L-W 4860 x 34mm
Dimensions H-W-L  1410 x 1670 x 2780mm
Motor Main drive 2.2kw
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Laser

Either a quality Addison fit German battery unit or factory fit powered item.

Swarf Brush

Fully adjustable swarf brush, essential for maximising blade life and improving cut finish.

Hydraulic Vice

Full stroke hydraulic vice

Hydra-mechanic blade tension

Manual blade tensioning with hydraulic gauge for precise setting of the blade strain.

Angle Cutting

Precision scale with sliding stop – 90° – 45° +30° for easy and accurate angle setting.

Cutting Control

Control panel with inverter setting

Roller Table

Roller table (600mm) with 2 rollers

Cutting Stroke

Adjustable upper and lower limits for blade stroke to reduce cutting cycle times.

Blade Guides

Very important to get this right in any bandsaw, heavy steel guide arms support a precision set of pre-twist roller bearings and solid carbide blade guides to give maximum precision and performance. Also features a saw frame made of heavier steel then normal on a machine of this capacity and price point.

Additrack

Heavy duty roller table with adjustable height. 1800mm length and either 350mm or 500mm width.
