Kesmak KMY 280 Band Saw - Addison Saws

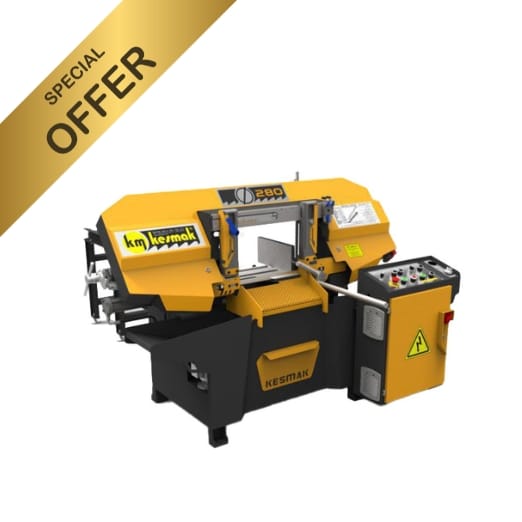

Kesmak KMY 280 Band Saw

Semi automatic vice mitre Bandsaw
Swivel vice for one way mitre cuts to 40deg
Precision scale for accurate angle setting
Full stroke hydraulic vice
Inverter variable blade speed control
Electric flood coolant (option for micro-mist)
Blade breakage detection with auto shutdown
Removable swarf collection tray
Blade cleaning brush
Roller table
Adjustable saw bow return height selector

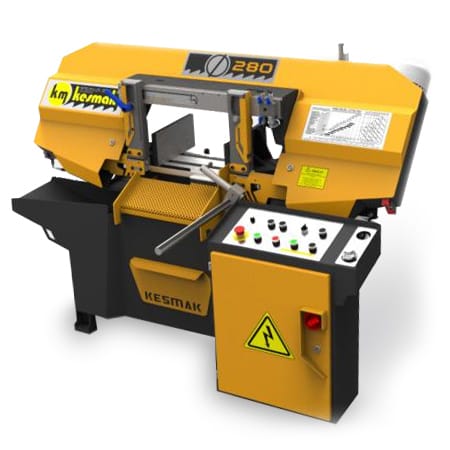

Kesmak KMY 280 Band Saw

Semi automatic horizontal one way mitre bandsaw for general production cutting of all types of steel and non ferrous metals

KMY 280
Capacity 90° Round Ø 280mm
Capacity 90° Square 250 x 250mm
Capacity 90° Rectangle 150 x 340mm
Capacity 45° Round Ø 160mm
Capacity 45° Square 140 x 140mm
Capacity 45° Rectangle 140 x 200mm
Motor Power Blade 1.5kw
Motor Power Coolant pump 0.12kw
Motor Power Hydraulic pump 0.18kw
Blade Dimensions Length – Width 3660mm x 27mm
Cutting table Height 725mm
Vice Maximum opening 340mm
Vice Minimum opening 0mm
Vice Height 150mm
Dimensions H-W-L 1265 x 1200 x 2000mm
Machine Weight 650kg
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Laser

Either a quality Addison fit German battery unit or factory fit powered item.

Swarf Brush

Fully adjustable swarf brush, essential for maximising blade life and improving cut finish.

Hydraulic Vice

Full stroke hydraulic vice

Blade Tension

Manual blade tensioning with hydraulic gauge for precise setting of the blade strain.

Cutting Control

Control panel with inverter setting

Cutting Stroke

Adjustable upper and lower limits for blade stroke to reduce cutting cycle times.

Blade Guides

Very important to get this right in any bandsaw, heavy steel guide arms support a precision set of pre-twist roller bearings and solid carbide blade guides to give maximum precision and performance. Also features a saw frame made of heavier steel then normal on a machine of this capacity and price point.

Additrack

Heavy duty roller table with adjustable height. 1800mm length and either 350mm or 500mm width.

Kesmak Table

600mm table with 2 rollers
