Kesmak KMS-280-V NC bundle bandsaw

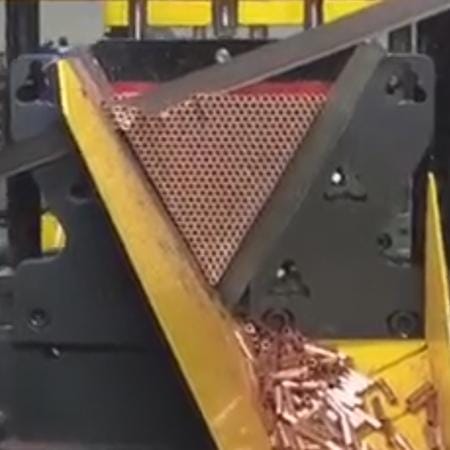

Special 'vee' design for cutting multiple pieces

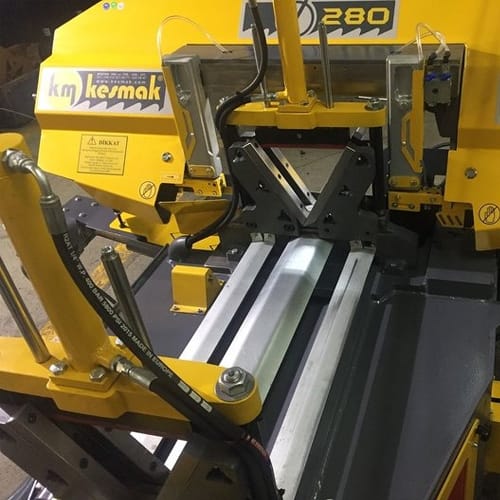

Split vice clamping both sides of the sawblade
Precision ball screw feed with servo motor
Colour touch screen HMI with 99 programs
Full stroke hydraulic vices
Electric swarf removing system
Blade breakage detection
Flood coolant system
Blade cleaning brush
Roller table with vertical containment rollers
Removable coolant tank
Add to quote
Category:

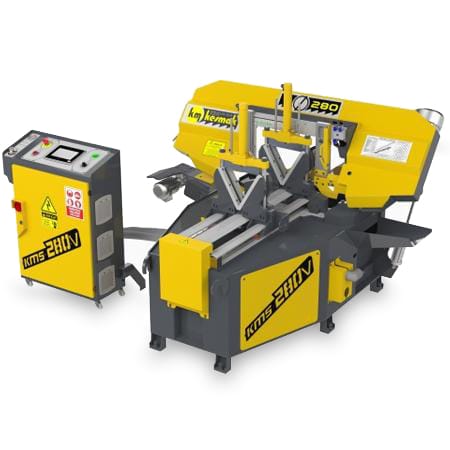

Kesmak KMS-280-V NC Bundle Bandsaw

The Kesmak KMS-280-V NC bandsaw with precision servo driven ball screw feeder and a unique V clamping system specifically produced for volume cutting of small diameter metal tubes and solid steel materials.

KMS 280-V
Capacity 90° Round Ø 280mm
Capacity 90° Square 270 x 270mm
Capacity 90° Rectangle 210 x 330mm
Max Capacity 90° Bundle Round Ø 130mm
Max Capacity 90° Bundle Square 130 x 130mm
Max Capacity 90° Bundle Rectangle 130 x 130mm
Min Capacity 90° Bundle Round Ø 130mm
Min Capacity 90° Bundle Square 130 x 130mm
Min Capacity 90° Bundle Rectangle 50 x 150mm
Feeder Stroke 600mm
Blade Dimensions Length – Width 3660mm x 34mm
Vice Maximum opening 360mm
Vice Minimum opening 0mm
Vice Height 170mm
Dimensions H-W-L 1260 x 1830 x 2000mm
Machine Weight 750kg
Addimist system image
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems depending on application.

Band saw battery Laser Line Option Image
Laser Line

Quality German battery laser line (or factory fit powered item) for quick setting of random semi-automatic cuts.

Bandsaw Vice CG image

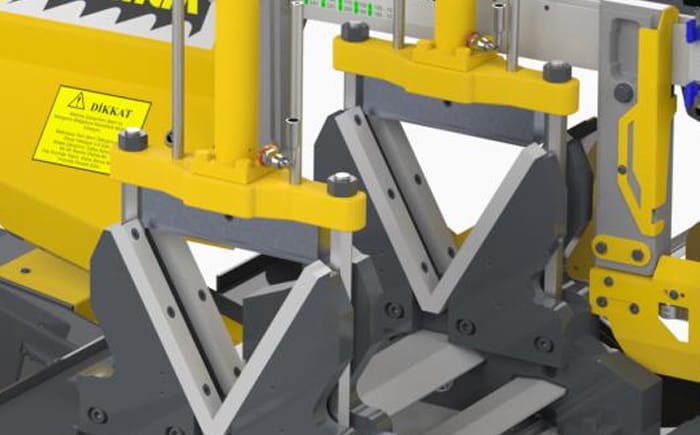

Material Clamping

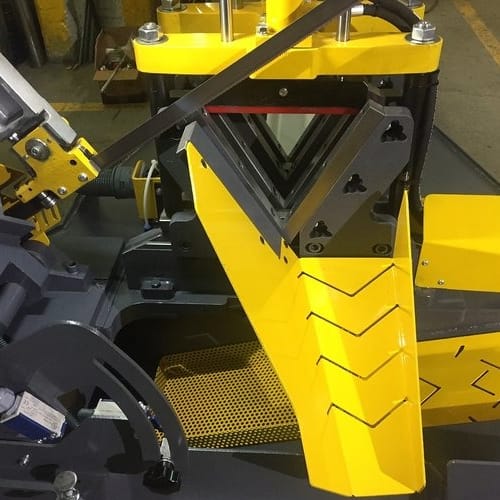

Special clamping system with V configuration vice plates and vertical clamp plate for cutting various size bundles of tubes and solid bars.

kms 280 band saw swarf remover
Swarf Conveyor

Powered swarf conveyor with electric motor and reduction gearbox.

kesmak kms 280 bandsaw control panel image

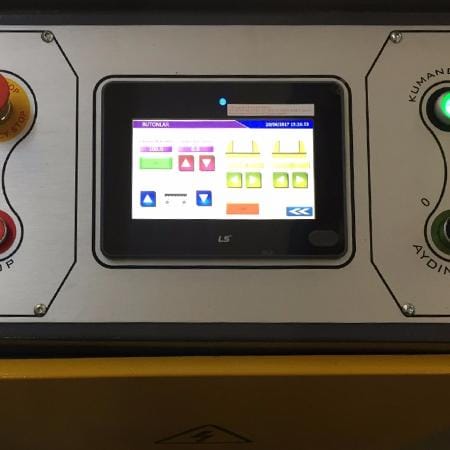

NC control

Touch screen HMI for input of cutting data, length and piece qty with 99 programs. Machine functions including vice opening/closing, raising/lowering of the saw bow, band speed, on/off for coolant and swarf conveyor, setting of the vice pressure.

kesmak kms 280 bandsaw control panel image
Vice Pressure Reduction

A clever system using a proportional valve to set the vice pressure in the touch screen HMI

Material Feeder

A precision ball screw incremental feeder with servo motor drive. No cheap magnetic linear tapes here that are easily damaged.

Kesmak KMS280V bundle rollers

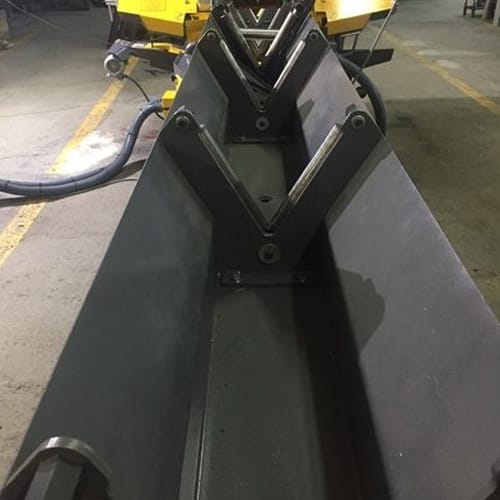

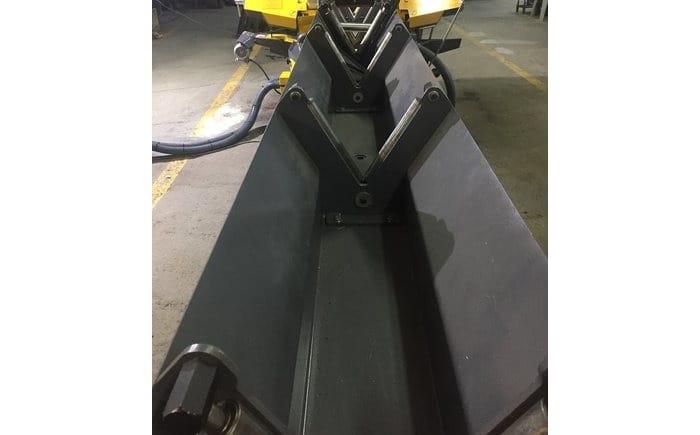

Roller Tables

Standard with 1 x 1200mm and 1 x 600mm roller tables with V shape containment rollers.

Kesmak KMS280V bundle rollers
Kesmak Roller Tables

1200mm and 600mm modules as standard (custom lengths available on request) with V shape containment rollers.
