Kesmak KMS-280 NC Horizontal Bandsaw

Automatic Bandsaw | NC Servo Feed | 280mm Max Round Capacity
Split vice clamping both sides of the sawblade
Precision ball screw feed with servo motor
Colour touch screen HMI with 99 programs
Full stroke hydraulic vice
Electric swarf removing system
Front and rear vertical bundle vices
Blade breakage detection with auto-shutdown
Flood coolant system
Blade cleaning brush
Roller table with vertical containment rollers
Material height sensor with rapid approach
Removable coolant tank

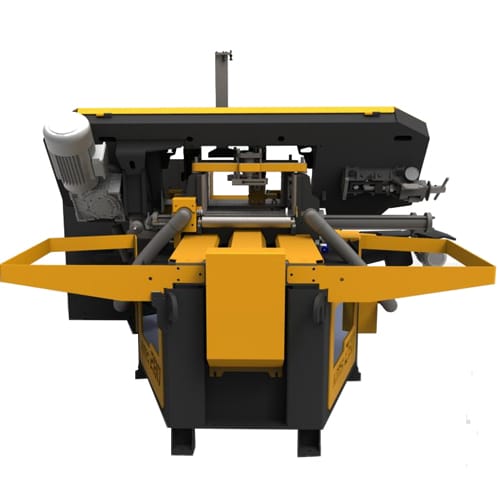

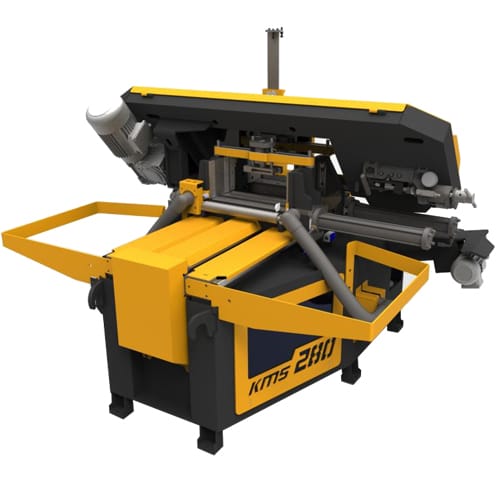

Kesmak KMS-280 NC Horizontal Bandsaw

The Kesmak KMS-280 NC band saw with precision servo driven ball screw feeder represents outstanding value for money. Loaded with standard features and super strong construction this machine is worthy of serious consideration. The perfect general industrial metal saw and part of our newer range of machines by Kesmak. Ideal for automatically cutting up to 280mm round, square and rectangular ferrous and non-ferrous materials. This machine is a workhorse providing excellent value for money with a very high level of technology and standard equipment.

● Round capacity 90°Ø 280mm
■  Square capacity 90°270 x 270mm
▬  Rectangle capacity 90°210 x 130mm
● Round bundle vice max capacityØ 130mm
■  Square bundle vice max capacity130 x 130mm
▬  Rectangle bundle vice max capacity130 x 130mm
● Round bundle vice min capacityØ 130mm
■  Square bundle vice min capacity130 x 130mm
▬  Rectangle bundle vice min capacity50 x 150mm
Blade Drive Motor Power1,5 kW
Hydraulic Pump Motor Power0,18 kW
Coolant Pump Motor Power0,12 kW
Swarf Conveyor Motor Power0,18 kW
Servo Drive Feeder Power1,1 kW
Blade Size3660 x 34 x 0,9 mm
Coolant Tank Capacity40 lt
Hydraulic Tank Capacity25 lt
 Cutting Table Height760 mm
Maximum Vice Opening360 mm
Minimum Vice OpeningZero
Vice Height170 mm
Feeder stroke length (repeat feeding for longer lengths)400 mm
Height-Width-Length1260 x 1830 x 2000 mm
Weight1200 kg

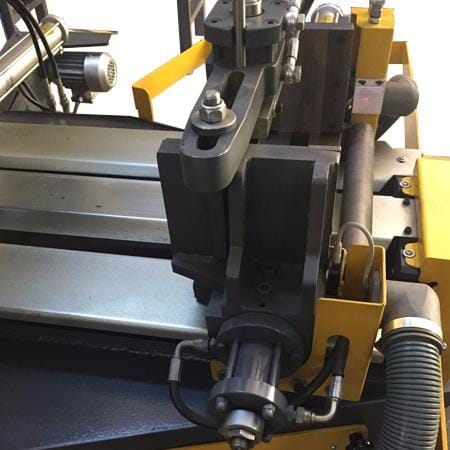

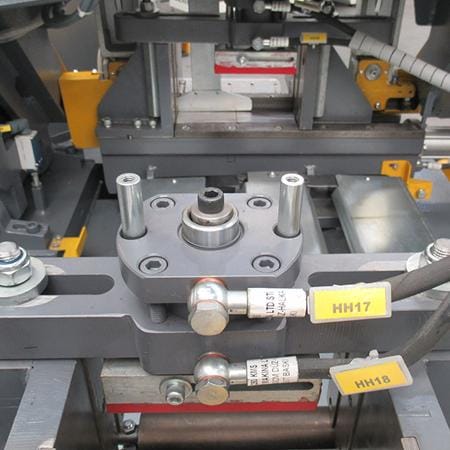

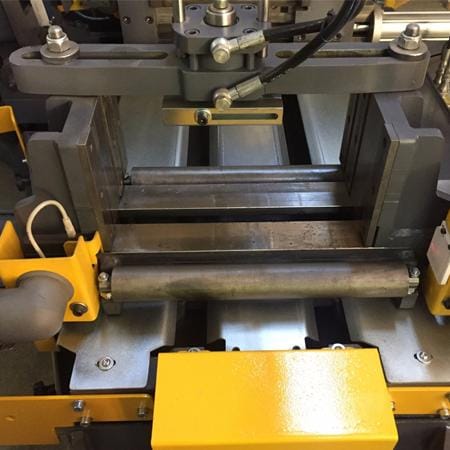

Upper Clamp System

Detachable front and rear vertical hydraulic bundle vices
Max Capacity 130 x 130mm
Min capacity 50 x 150mm

Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Laser Line

Quality German battery laser line (or factory fit powered item) for quick setting of random semi-automatic cuts.

Hydraulic Vice

Full stroke hydraulic clamping on feeder and both sides of the sawblade for maximum stability and elimination of a break away nib.

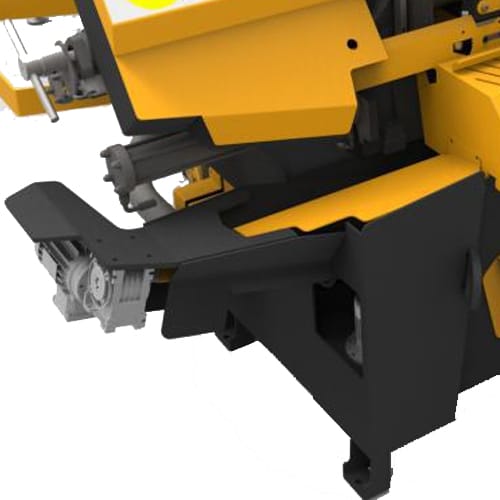

Swarf Conveyor

Powered swarf conveyor with electric motor and reduction gearbox.

NC control

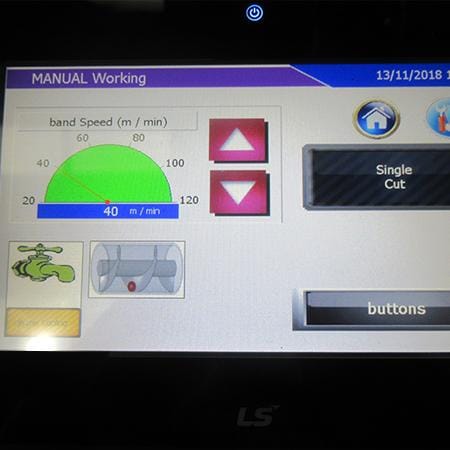

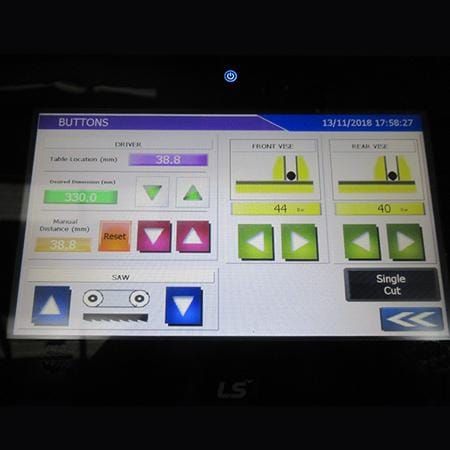

Touch screen HMI for input of cutting data, length and piece qty with 99 programs. Machine functions including vice opening/closing, raising/lowering of the saw bow, band speed, on/off for coolant and swarf conveyor, setting of the vice pressure.

Material Feeder

A precision ball screw incremental feeder with servo motor drive. No cheap magnetic linear tapes here that are easily damaged.

Vice Pressure Reduction

A clever system using a proportional valve to set the vice pressure in the touch screen HMI

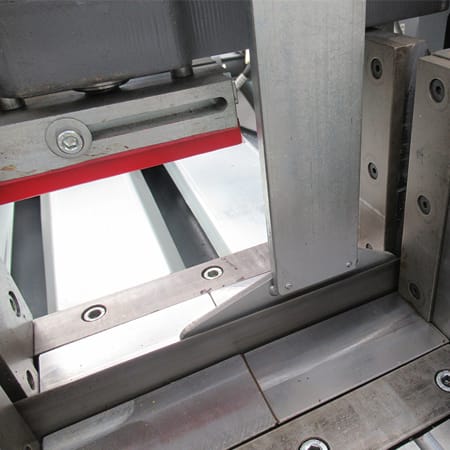

Fast Approach & Vices

A mechanical device reads the top of the material to allow rapid approach to 5mm above the stock then switches to the selected cutting rate. The head will only return to 5mm above after the cut to reduce cycle times.
The vices are full stroke with replaceable hardened jaws.

Roller Tables

Standard supply of 1 x 600mm table and 1 x 120mm Roller table

Addison 2000mm Roller Table

Heavy duty roller table 2000mm x 350mm or 500mm wide with adjustable height legs.

Kesmak Roller Tables

Additional to standard supply 1200mm and/or 600mm units
