Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems depending on application.

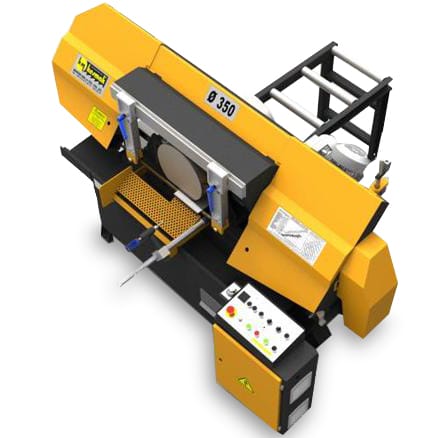

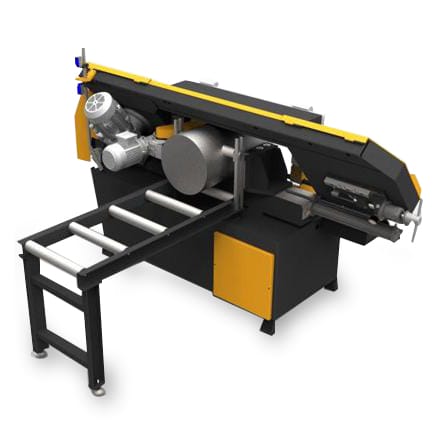

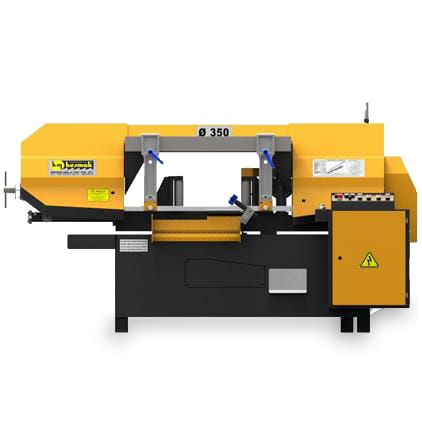

Roller feed (500mm reactive material stop) automatic bandsaw for production cutting of solid and sectional material. This is a lower cost option to the very popular shuttle vice design automatics.
| KMO 350 | ||
| Capacity 90° | Round | Ø 350mm |
| Capacity 90° | Square | 340 x 340mm |
| Capacity 90° | Rectangle | 340 x 415mm |
| Motor Power | Blade drive | 2.2kw |
| Motor Power | Hydraulic pump | 0.18kw |
| Motor Power | Coolant pump | 0.12kw |
| Motor Power | Servo feed | 0.55kw |
| Blade Dimensions | Length – Width | 4860mm x 34mm |
| Cutting table | Height | 745mm |
| Vice | Maximum opening | 420mm |
| Vice | Minimum opening | 0mm |
| Vice | Height | 185mm |
| Dimensions | H-W-L | 1430 x 1370 x 2600mm |
| Machine | Weight | 1105kg |
Allows for optimisation of cycle times.
