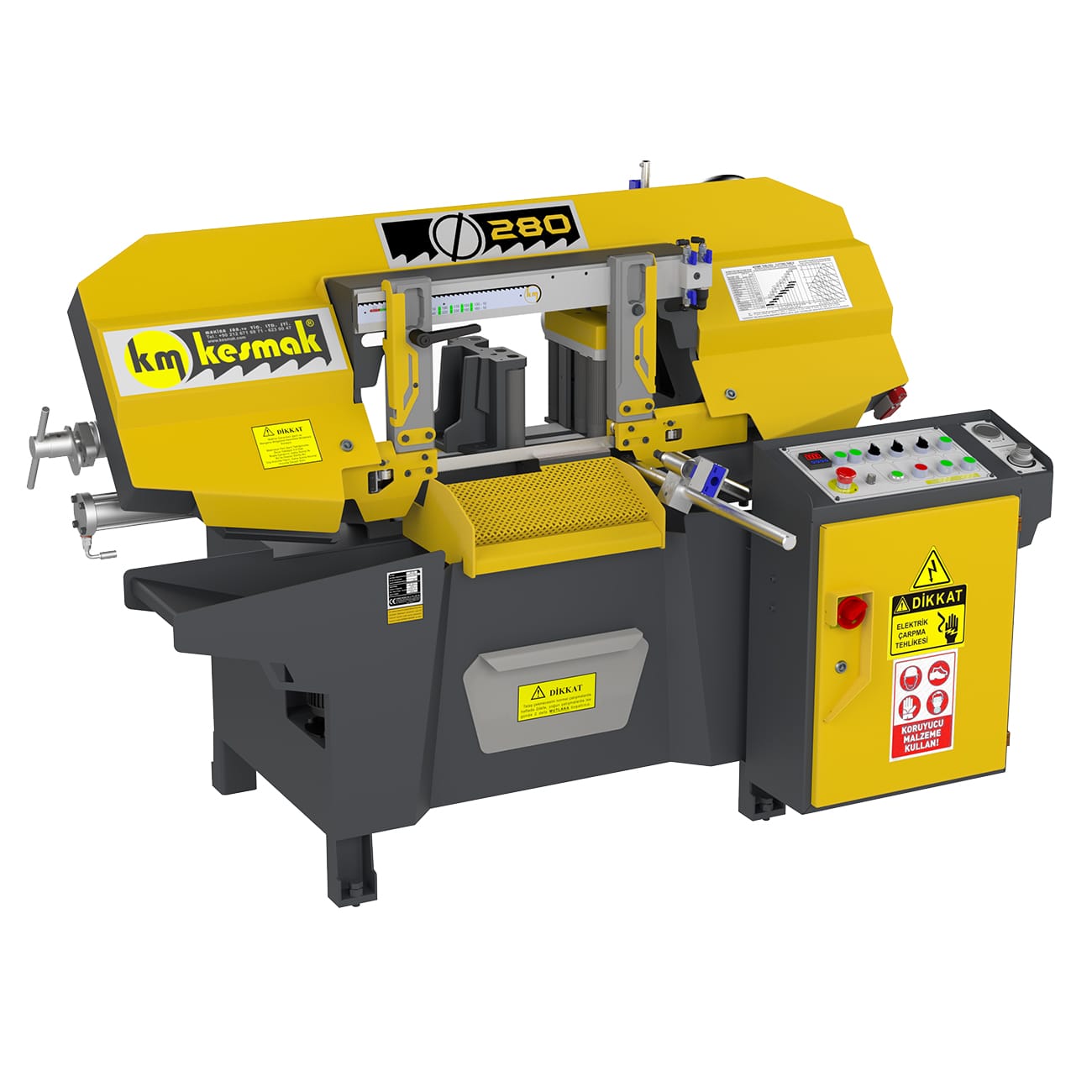

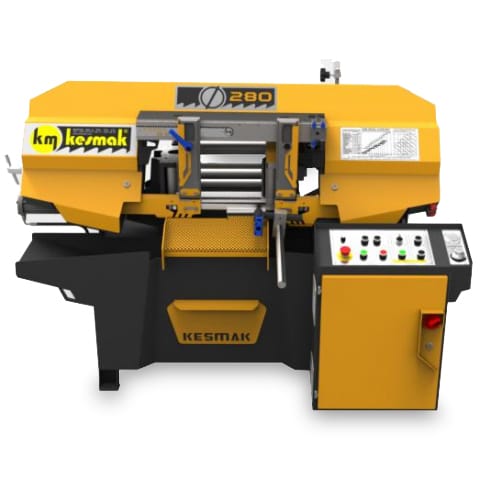

Automatic Bandsaw | Manual Roller Feed + Reactive Stop | 280 mm Round Capacity
Key Features
Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

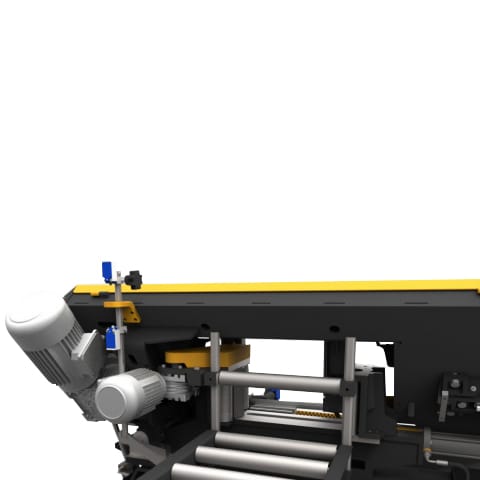

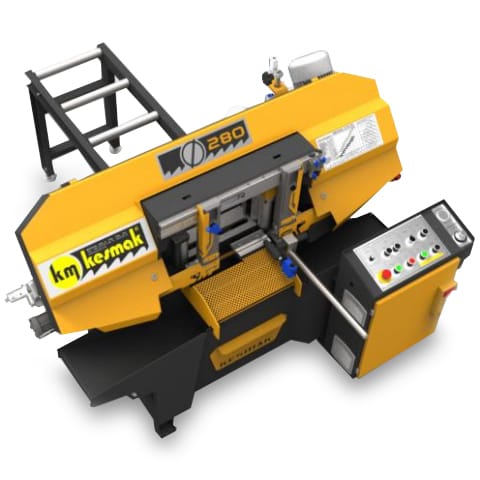

Roller feed (500mm reactive stop) automatic bandsaw for production cutting of solid and sectional material. This is a lower cost option to the very popular shuttle vice design automatics but still a powerful cutting machine.
| KMO 280 | ||
| Capacity 90° | Round | Ø 280mm |
| Capacity 90° | Square | 270 x 270mm |
| Capacity 90° | Rectangle | 210 x 340mm |
| Motor power | Blade drive | 1.5kw |
| Motor power | Hydraulic pump | 0.18kw |
| Motor power | Coolant pump | 0.12kw |
| Blade Dimensions | Length – Width | 3660mm x 27mm |
| Cutting table | Height | 725mm |
| Vice | Maximum opening | 725mm |
| Vice | Minimum opening | 0mm |
| Vice | Height | 170mm |
| Dimensions | H-W-L | 1270 x 1170 x 2000mm |
| Machine | Weight | 750kg |
