Kesmak KME 350 Band Saw

99 programs for cutting length & piece qty
Roller feed with servo drive and PLC control
Manual blade tensioning with hydraulic gauge
Variable blade speed with inverter
Blade breakage detection with auto-shutdown
Blade cleaning brush
Hydraulic material clamping
Loading roller table
Category:
Addimist system image
Addimist Bandsaw System

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

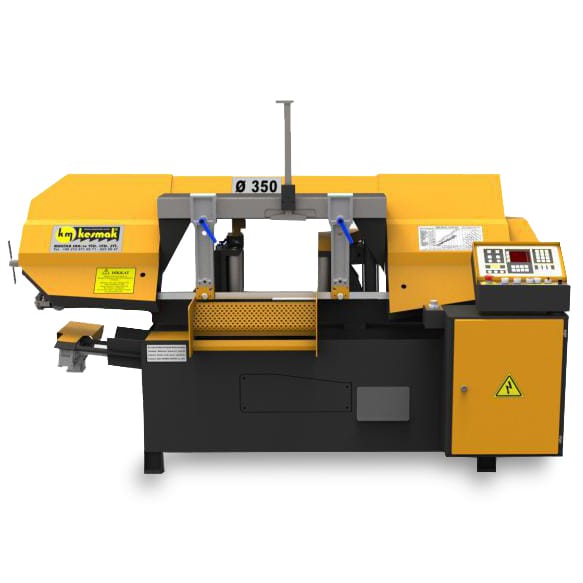

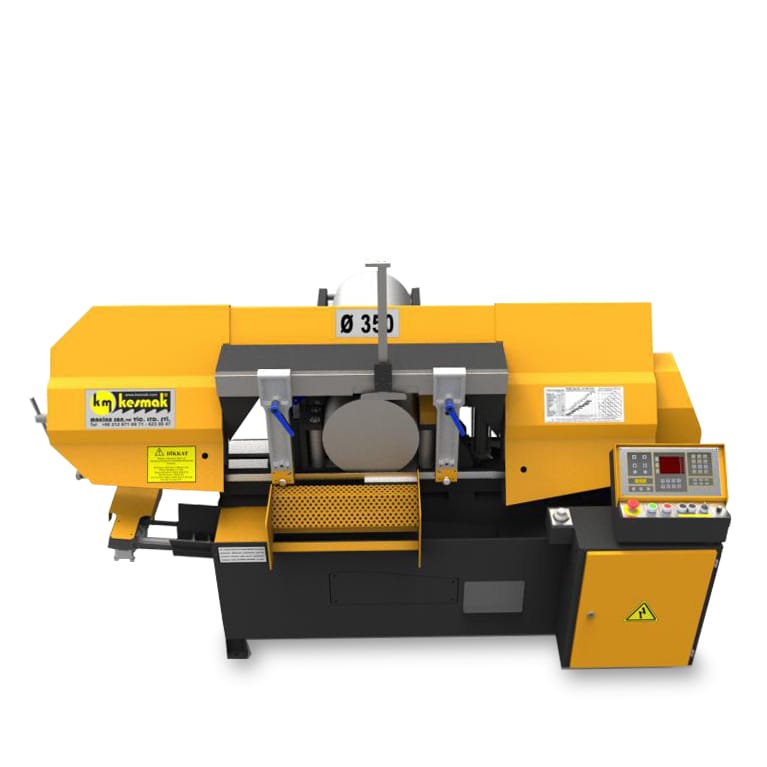

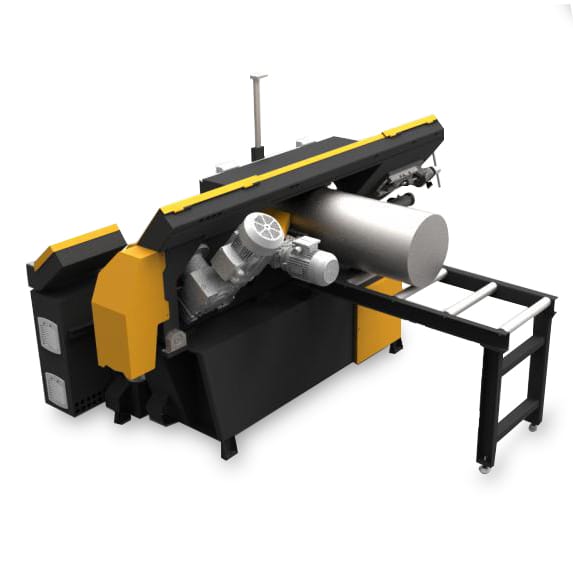

Kesmak KME 350

Industrial Roller feed automatic bandsaw for production cutting of solid and sectional metal material. Featuring servo drive with PLC control offering 99 programs for cutting data. This is a lower cost option to the very popular NC shuttle vice design automatics.

This machine tool has a capacity of 350mm for round and square material cut at 45 degrees.

KME 350
Capacity 90° Round Ø 350mm
Capacity 90° Square 340 x 340mm
Capacity 90° Rectangle 330 x 400mm
Motor Power Blade drive 2.2kw
Motor Power Hydraulic pump 0.18kw
Motor Power Coolant pump 0.12kw
Motor Power Servo feed 0.55kw
Blade Dimensions Length – Width 4860mm x 34mm
Cutting table Height 745mm
Vice Maximum opening 405mm
Vice Minimum opening 0mm
Vice Height 185mm
Dimensions H-W-L 1325 x 1290 x 2620mm
Machine Weight 1250kg
Standard feature icon
Swarf Brush

Standard feature icon
Inverter

Standard feature icon
Hydraulic Vice

Standard feature icon
Hydra-Mechanic Blade Tension

Standard feature icon
Blade Breakage Switch / Stop system

Standard feature icon
Roller Table - 1200 mm

Standard feature icon
Second roller Table - 600mm

Standard feature icon
Chip Conveyor
