Kesmak KME 280 Band Saw

Roller feed Automatic Bandsaw | with NC Control | 280mm Round Capacity
Roller feed with servo drive and PLC control
99 programs for cutting length and piece qty
Manual blade tensioning with hydraulic gauge
Variable blade speed with inverter
Blade breakage detection with auto-shutdown
Blade cleaning brush
Hydraulic material clamping
Vertical compression roller
Loading roller table
Cutting stroke adjustment
Add to quote

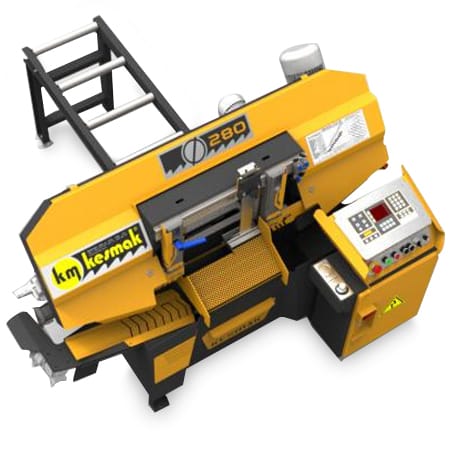

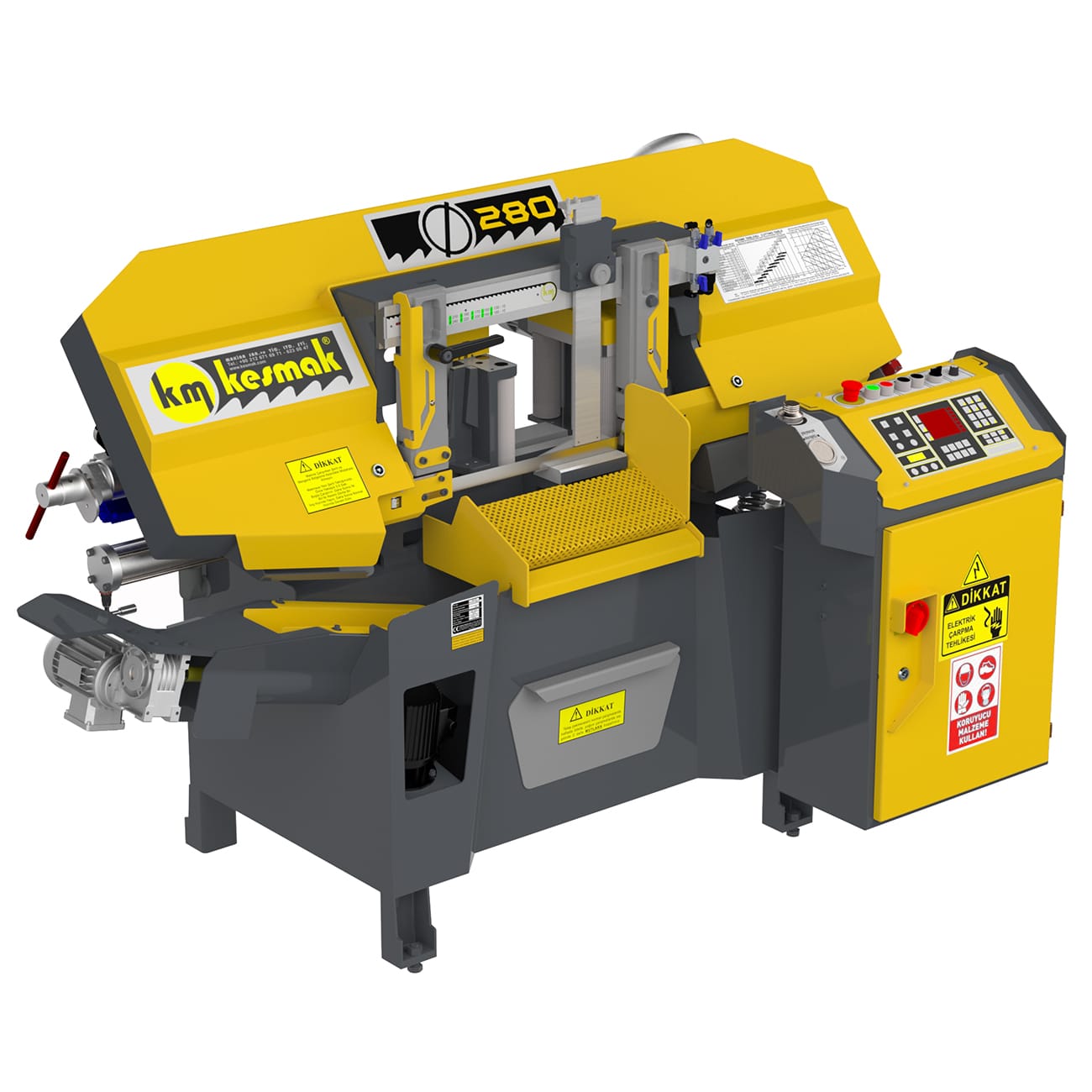

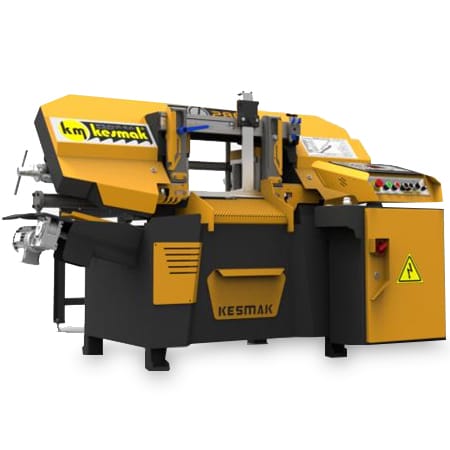

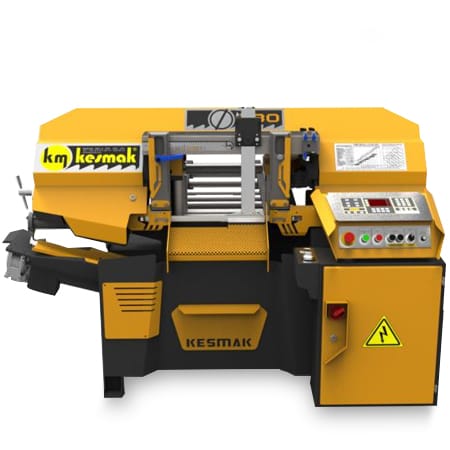

Kesmak KME 280 Band Saw

Roller feed automatic horizontal bandsaw for production cutting of solid and sectional metal materials. Featuring servo drive with PLC control offering storage for 99 programs of cutting data and cutting stroke adjustment to optimise cycle times. This is a lower cost option to the very popular NC shuttle vice design automatic style band saws and an ideal starter machine for heavier workloads and sporadic use alike.

All Kesmak bandsaws come with a 1 year parts and labour warranty.

KME 280
Capacity 90°RoundØ 280mm
Capacity 90°Square270 x 270mm
Capacity 90°Rectangle210 x 340mm
Motor powerBlade drive1.5kw
Motor powerHydraulic pump0.18kw
Motor powerCoolant pump0.12kw
Motor powerServo feed0.37kw
Blade DimensionsLength – Width3660mm x 27mm
Cutting tableHeight725mm
ViceMaximum opening725mm
ViceMinimum opening0mm
ViceHeight170mm
DimensionsH-W-L1270 x 1170 x 2000mm
MachineWeight750kg
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Hydraulic Vice

Hydro-Mechanic Band Tensioning

Roller Table - 1200mm

Second Double Roller Table - 600mm

Swarf Brush

Blade Breakage Switch / Stop System

Inverter

Chip Conveyor

KME280-350-Data-Sheet.pdf
