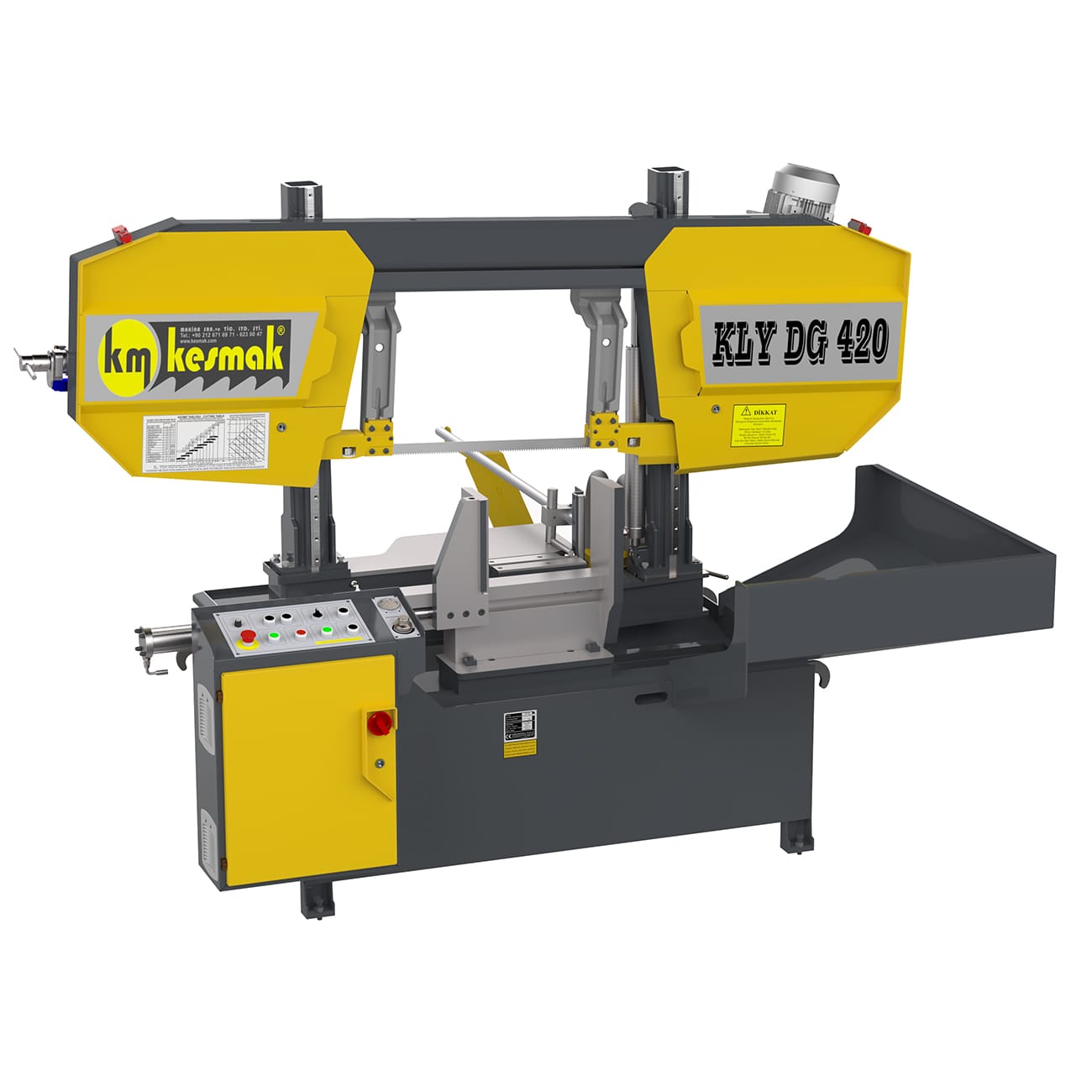

Kesmak KLY DG 420 Band Saw

Semi-automatic twin column band saw with linear guide design, one way easy-mitre (swivel head) ideal for general fabrication applications where simplicity of operation, precision and reliability are key factors.

Technical Data	KLY DG 420
Capacity at 90° (round)	Ø 430 mm
Capacity at 90° (square)	420 x 420 mm
Capacity at 90° (rectangle)	420 x 500 mm
Capacity at 60° (round)	Ø 420 mm
Capacity at 60° (square)	380 x 380 mm
Capacity at 60° (rectangle)	340 x 420 mm
Capacity at 45° (round)	Ø 350 mm
Capacity at 45° (square)	330 x 330 mm
Capacity at 45° (rectangle)	320 x 350 mm
Capacity at 30° (round)	Ø 150
Capacity at 30° (square)	140 x 140 mm
Capacity at 30° (rectangle)	120 x 420 mm
Blade Drive Motors	3kw
Hydraulic Pump Motor	0.12kw
Coolant Pump Motor	0.37kw
Blade Dimensions	5200 x 34 mm
Max Vice Opening	510 mm
Min Vice Opening	0 mm
Vice Height	260 mm
Dimensions (L X W x H)	1890 x 1420 x 2320 mm
Machine Dry Weight	1630kg

*requires compressed air

Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Hydraulic Band Tensioning

Exact blade tension is applied using a hydraulic system

Laser Line

Either a quality Addison fit German battery unit or factory fit powered item.

Swarf Brush

Fully adjustable swarf brush, essential for maximising blade life and improving cut finish.

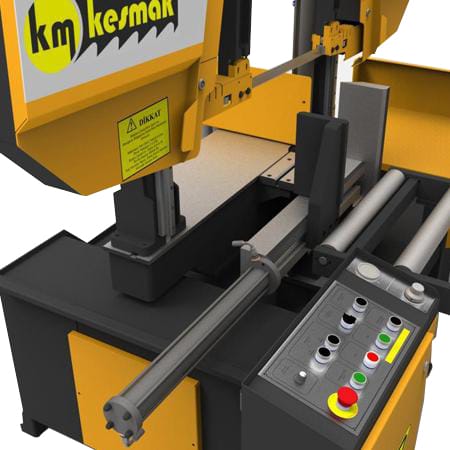

Hydraulic vice

Full stroke hydraulic vice

Blade Tension

Manual blade tensioning with hydraulic gauge for precise setting of the blade strain.

Cutting Control

Control panel with inverter setting

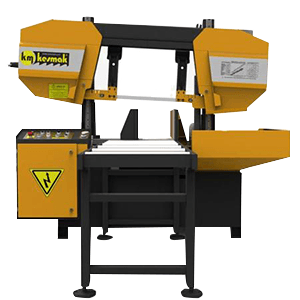

Roller Table

Roller support table with 4 rollers

Angle setting

Precision scale for setting the cutting angles.

Blade Guides

Very important to get this right in any bandsaw, heavy steel guide arms support a precision set of pre-twist roller bearings and solid carbide blade guides to give maximum precision and performance. Also features a saw frame made of heavier steel then normal on a machine of this capacity and price point.

Cutting Stroke

Fully adjustable limit switch to precisely set the return height of the sawblade, reducing cycle times.

Roller table

2000mm roller support table with 7 rollers (image illustrates the optional powered unit)

Additrack

Heavy duty roller table with adjustable height. 1800mm length and either 350mm or 500mm width

Kesmak Table

600mm table with 2 rollers

KLY DG 420 Spec Sheet
