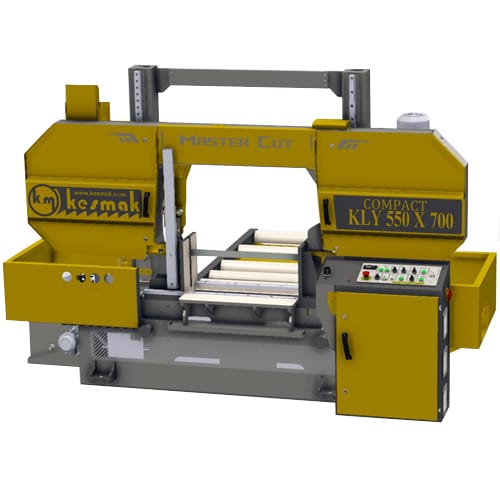

Kesmak 550-700 band saw image

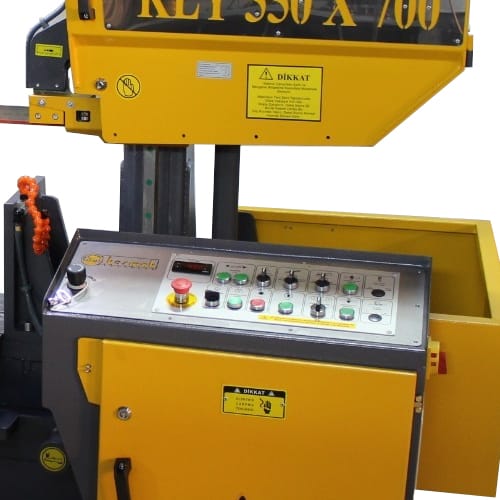

kesmak kly 500 x 700 control unit

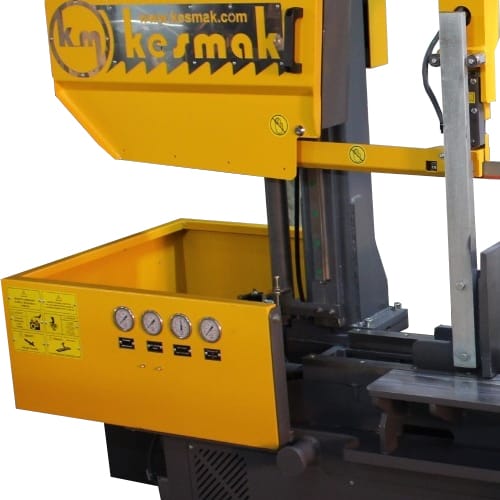

kesmak kly 500 x 700 gauges

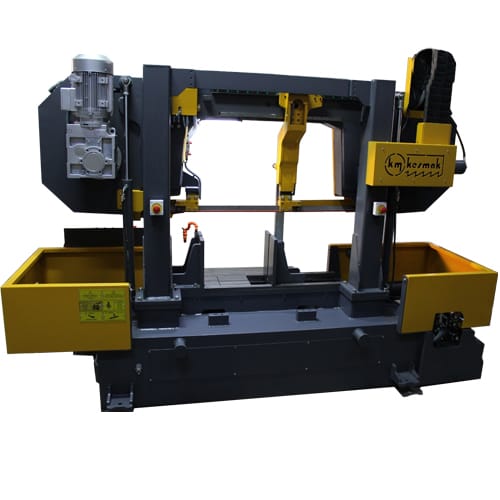

kesmak kly 500 x 700 bandsaw back image
kesmak kly 500 x 700 bandsaw front image

Kesmak KLY 550-700

Strong stable twin column design
Head supported on precision linear rails
Large width cutting capacity
Full stroke hydraulic vice
Split vice for holding stock and cut piece
vice stroke synchronized with guide arm
Blade cleaning brush
Roller table
Powered swarf remover
Bow return height selector with metric scale
Scroll down for specification, optional extras, videos & more ⬇️
Add to quote
Category:

Kesmak KLY 550-700 band saw

Semi automatic twin column horizontal band saw for general production cutting of all types of steel and non ferrous metals.

Technical Specifications KSY 550 x 700 Band Saw
Capacity 90° – Round Ø 550 mm
Capacity 90° – Square 550 x 550 mm
Capacity 90° – Rectangle 550 x 700 mm
Blade Drive 4 kW
Hydraulic Pump 1,1 kW
Coolant Pump 0,12 kW
Swarf Conveyor 0, 18 kW
Blade Size 5880 x 41 x 1,3 mm
Table Height 615 mm
Vice Maximum Opening 710 mm
Vice Minimum Opening 50 mm
Vice Height 310 mm
Height – Width – Length 2150 x 1215 x 2926 mm
Weight 1980 kg



find out more about Kesmak:

kemak saws logo

Band saw battery Laser Line Option Image
Laser Line

Either a quality Addison fit German battery unit or factory fit powered item.

Addimist system image
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Upper Clamp System

Vertical hydraulic vice used for cutting bundles and rafts of material.

Curve Cutting Sensor

A device for measuring the vertical tolerance, if the user defined parameter is exceeded the machine with end the cutting cycle

Hydraulic Blade Tensioning Image
Hydraulic Blade Tension

Exact blade tension is applied using a hydraulic system

Swarf Brush

Fully adjustable swarf brush, essential for maximising blade life and improving cut finish.

Blade Guides

Very important to get this right in any bandsaw, heavy steel guide arms support a precision set of pre-twist roller bearings and solid carbide blade guides to give maximum precision and performance. Also features a saw frame made of heavier steel then normal on a machine of this capacity and price point.

Hydraulic Vice

Full stroke hydraulic vice

Blade Tension

Manual blade tensioning with hydraulic gauge for precise setting of the blade strain.

Synchronised Guide Arm

A very useful device that automatically synchronised the moving guide arm with the vice position. This guarantees optimum blade support at all times preserving blade life and optimising cutting performance.

Swarf Conveyor

Helical type powered swarf removal system.

Roller table

1500mm roller support table

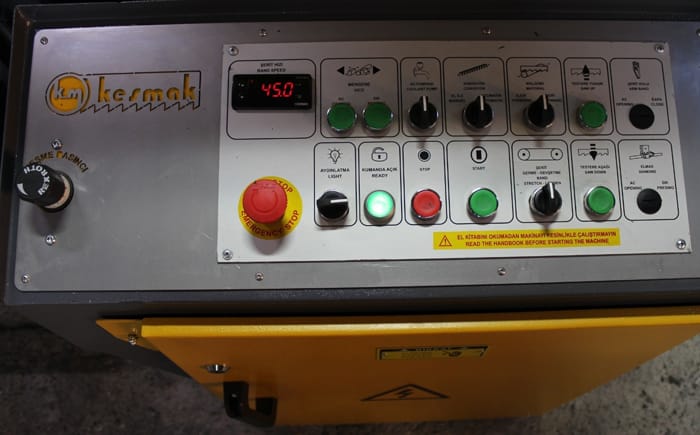

Kesmak bandsaw control panel unit
Cutting Control

Control panel with inverter setting of the blade speed and precise control of the hydraulic down feed.

Cutting Stroke

Adjustable upper and lower limits for blade stroke to reduce cutting cycle times. Easily accessed from the front of the machine.

Roller System

Standard and custom length modules of free roller, or powered roller tables with chain and reduction gearbox transmission.

KLY 550X700 Compact Data Sheet
