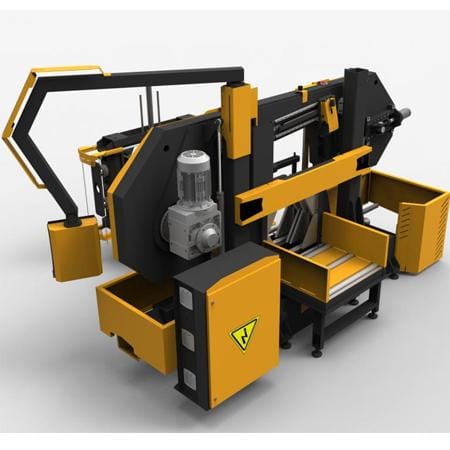

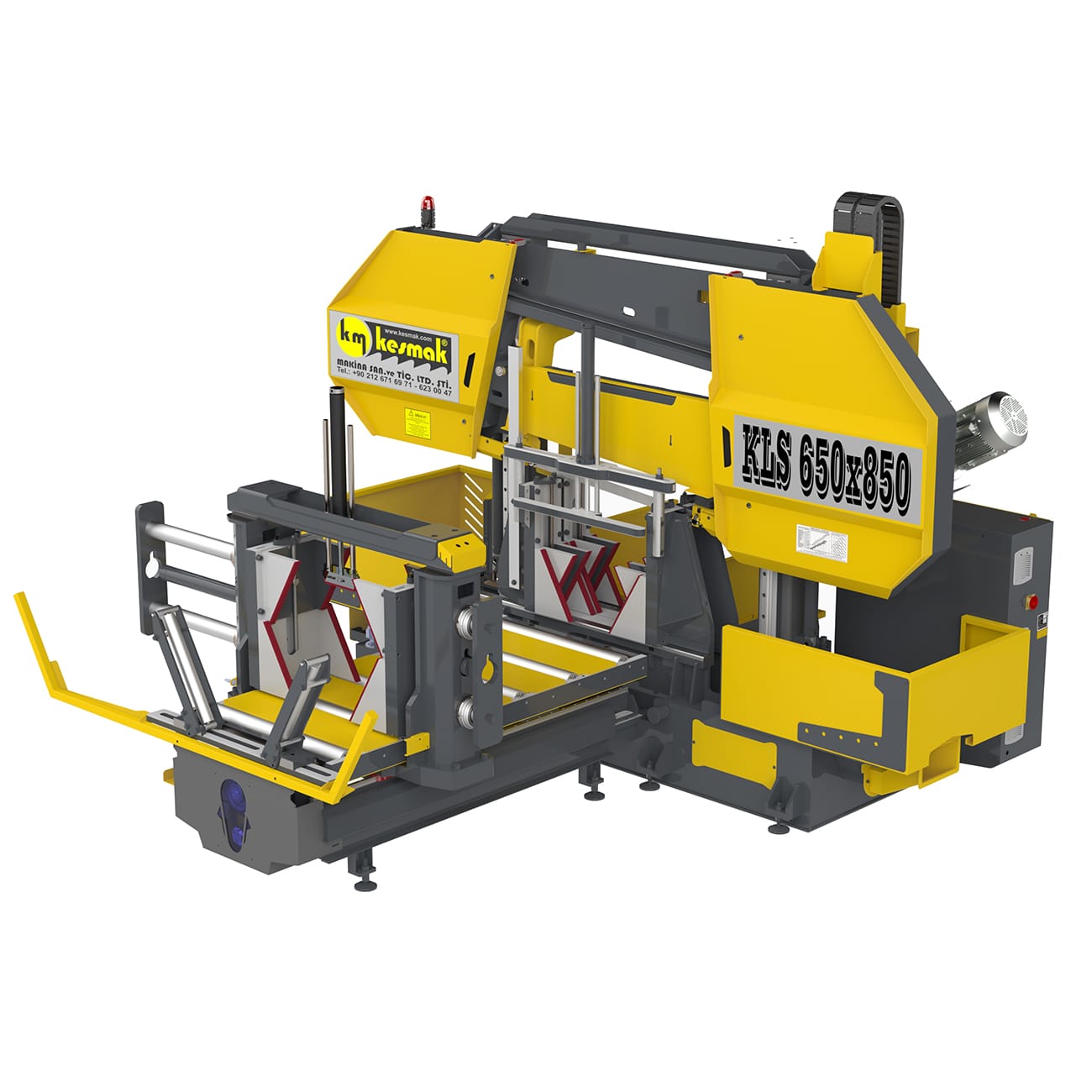

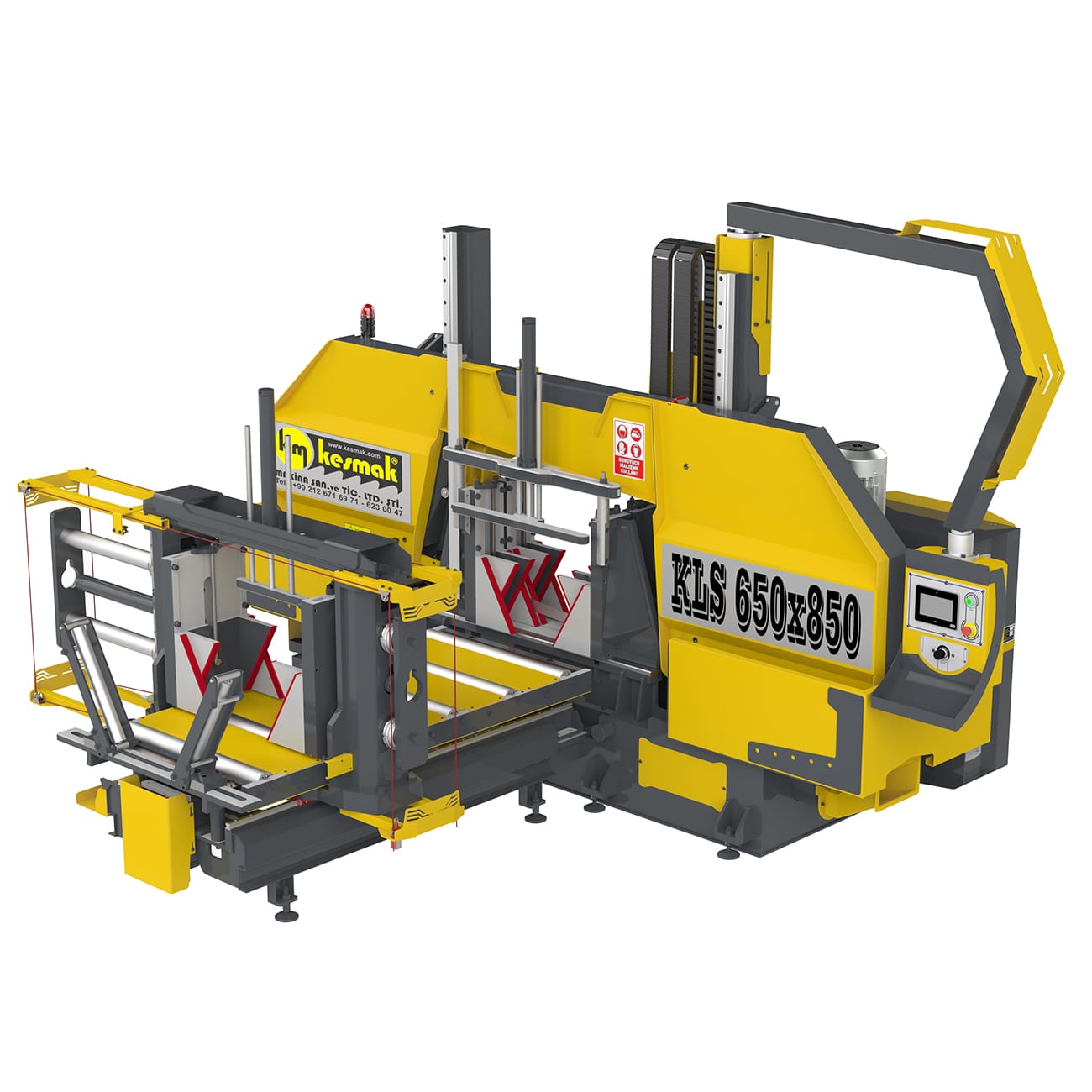

Kesmak KLS 650-850 CN Bandsaw

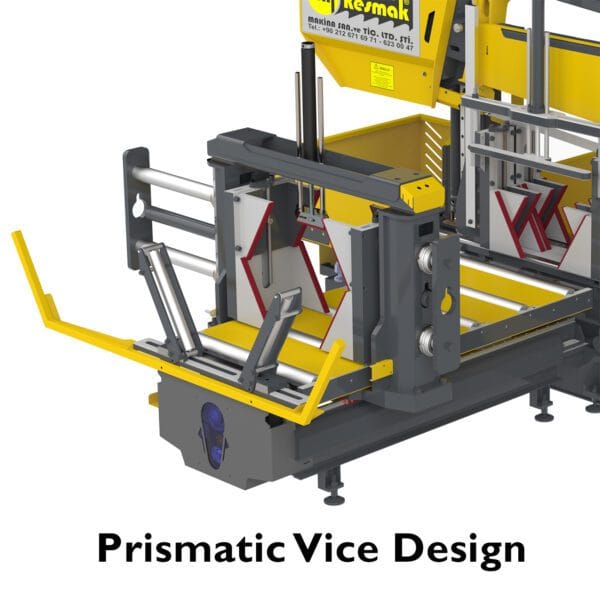

Heavy duty NC band saw with design features that give it a class leading performance and price. Highly recommended for production cutting of solids and sectional steels and alloys. There is an option to have prismatic vices as pictured to allow cutting of round tubes in large bundles. This machine uses a precision 1400mm servo drive ball screw feeder for accurate and consistent results.

Technical Specifications	KLS 650 x 850
Capacity 90° – Round	Ø 650 mm
Capacity 90° – Square	650 x 650 mm
Capacity 90° – Rectangle	650 x 850 mm
Bundle Cutting Maximum (mm)	Ø 650
Bundle Cutting Minimum (mm)	Ø 325
Vice Maximum Closing	300
Vice Maximum Opening	850
Vice Height	650 mm
Blade Drive	5,5 kW
Hydraulic Pump	3 kW
Coolant Pump	0,12 kW
Feeding Motor	1,5 kW
Swarf Conveyor	0, 18 kW
Blade Size	8200 x 54 x 1,6 mm
Coolant Tank Capacity	70 ltr
Hydraulic Tank Capacity	36 ltr
Feeding Height	640 mm
Feed vice physical max stroke	1400mm
Weight	8500 kg
Height – Width – Length	2700 x 1500 x 4100 mm

Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Laser Line

Either a quality Addison fit German battery unit or factory fit powered item.

Hexagonal Vice

For bundle cutting of round tubes or some solids formed in a hexagonal bundle. The jaws interlock to create a flexible clamping area. Roller support tables with adjustable containment rollers are recommended

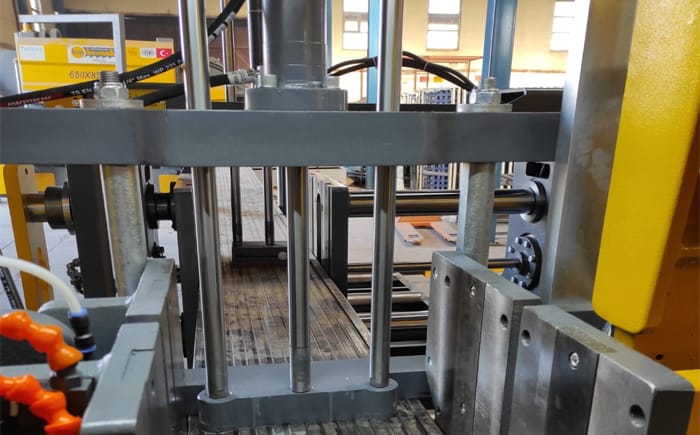

Vertical Vice

Hydraulic vertical vice for bundles and rafts of round and square material

Swarf Brush

Fully adjustable swarf brush, powered directly from the bandwheel essential for maximising blade life and improving cut finish.

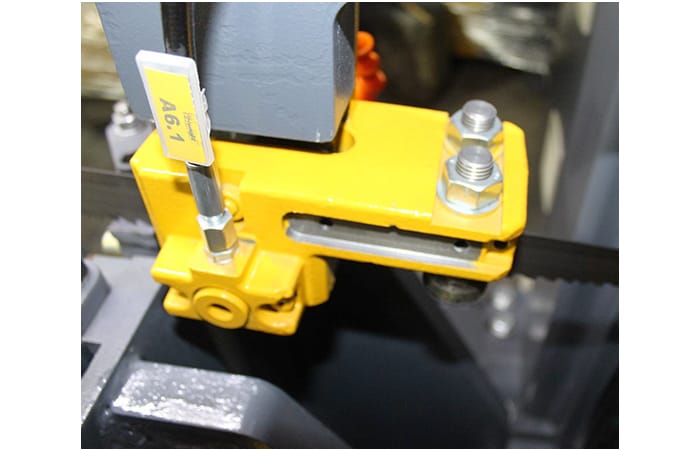

Hydraulic Blade Guide

Solid carbide precision blade guides that are automatically tensioned hydraulically and relaxed when not in use.

Hydraulic Vice

Full stroke hydraulic vice for main vice and feeder. The main vice is split to clamp both sides of the sawblade for more stability and no offcut break away nib.

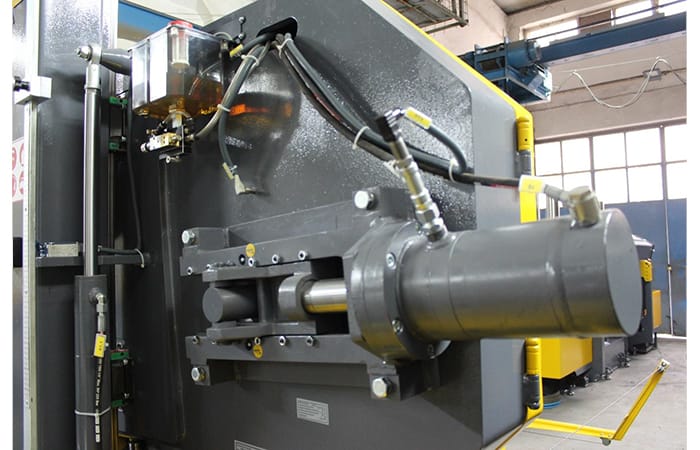

Hydraulic Blade Tension

Exact blade tension is applied using a hydraulic system

7" PLC touchscreen

Straight forward easy operation touch screen HMI for cutting data input. Cut length and number of pieces.

Arm Moving System With Vice

A very useful device that automatically synchronised the moving guide arm with the vice position. This guarantees optimum blade support at all times preserving blade life and optimising cutting performance.

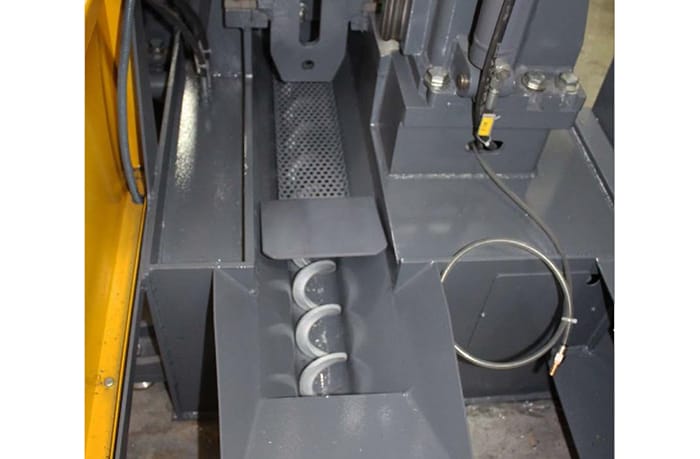

Chip Conveyor

Helical type powered swarf removal system.

Additrak

1800mm roller support table either 350 or 500 mm wide with 2 x adjustable support legs.

Roller Tables

Custom built in definable lengths and widths

KLS 650 x 850 Data Sheet
