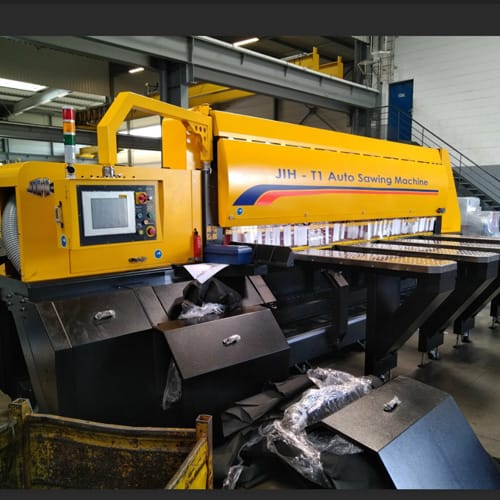

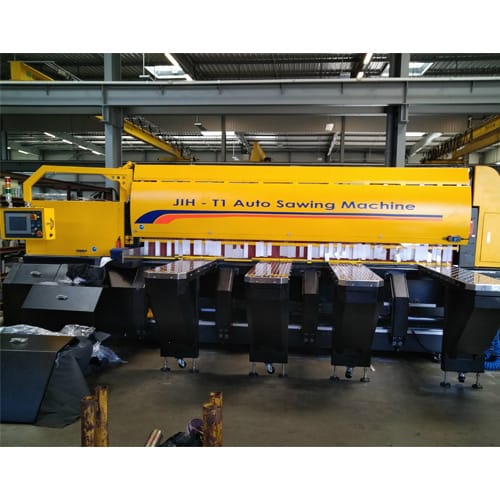

JIH T1 NC Plate Saw
Fully Automatic | Plate Saw System | 660mm blade
Key Features
NC powered indexing of stock to programmed cut lengths

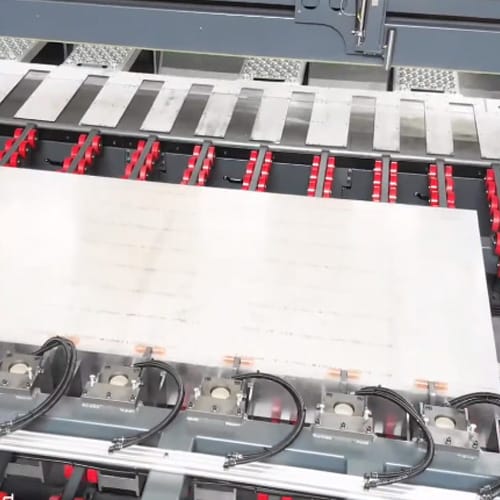

Indexing System Equipped with Hydraulic Grippers to Secure the Plate
Automatic loading of stock material

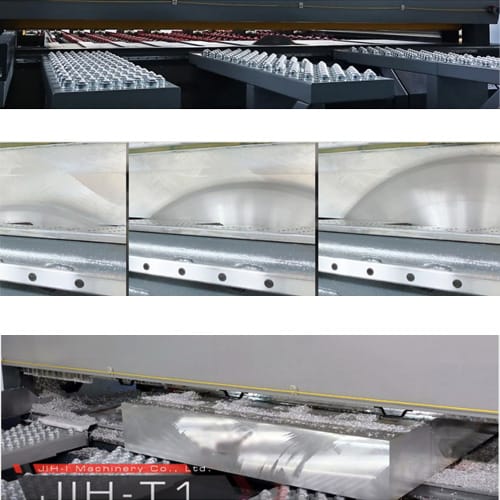

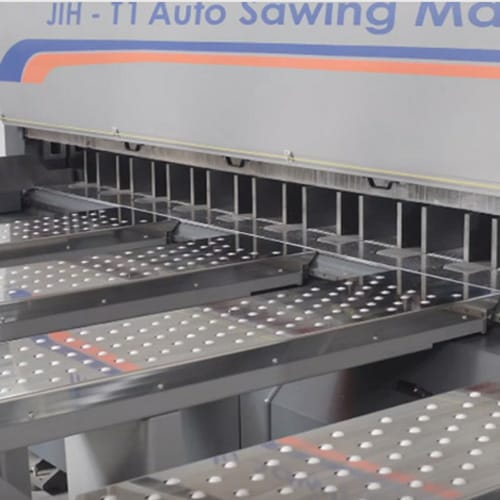

Non marking Japanese ball tables for easy heavy stock movement
Patented design double gear rack for saw transmission wit 3.5kw servo
NC setting of the sawblade height using ball screw and servo
46hp main drive motor
Patented design Chain design chip conveyor

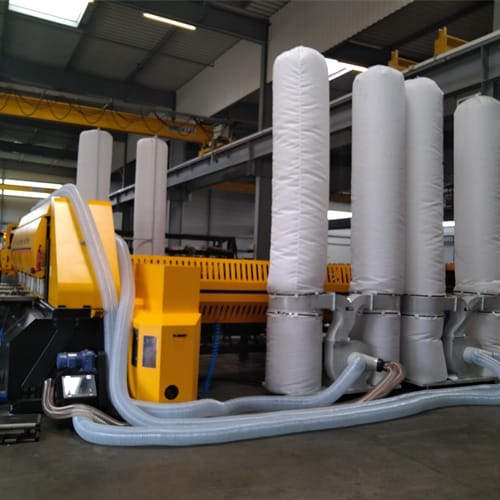

3 x twin bag 7.5hp vacuum extraction units
Auto detection of the material width to avoid collision
Variable blade rotation speed with inverter
Touch screen HMI
Scroll down for specification, optional extras, videos & more ⬇️

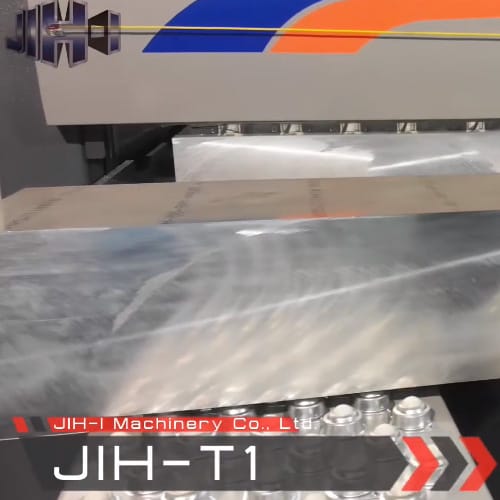

T1 NC Plate Saw

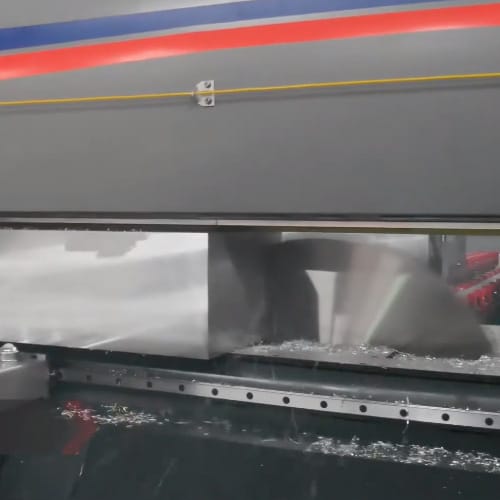

Worldwide a very popular and widely sold super heavy duty plate saw for precision high production sawing of aluminium slabs and composite materials, using TCT or PCD diamond sawing products. For a very competitive price the JIH T1 offers unbeatable levels of consistent performance, standard equipment and above all reliability.
Link to additional video…. click HERE
| Model | JIH-T1 |
|---|---|
| Cutting Width | 3,750 mm |
| Cutting Length | Max.Length 3750 mm, Min.Length 20 mm |
| Maximum Depth of Cut(H) | 600mm Saw blade maximum cutting height of 174 mm (Optional:660mm saw blade with maximum cutting height of 205 mm) |
| Blade Diameter | 600mm to 660mm |
| Bore Diameter | 30 mm |
| Speed | 1000~2800 RPM(by inverter) |
| Main Sawblade Motor | 46 HP |
| Saw Carriage Drive Motor | 2 kw |
| Automatic Feed System | Automatic feeding length 3750 mm And automatic feeding fixture:10 seats (Automatic feeding effective stroke 3.75meters) |
| Automatic Feeding Servo | 3.5 kw |
| Table Area | Chromium coating steel ( with universal ball ) |

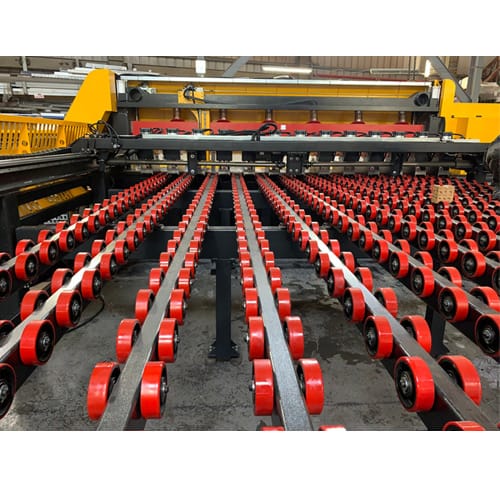

| Outfeed Roller Table | Universal auxiliary table 1.5m × 4 seat |
| Working Air Pressure | 4-6 kg / cm 2 |
| Table Height From Floor | 1,100 mm |
| Machine Dim. (L x W x H) | 7,628 mm x 7,213 mm x 2,300 mm |
| Packing Dim. (L x W x H) | 11,920 mm x 2,290 mm x 2,430 mm |
| Net / Gross Weight | 12,000 kgs/12,650 kgs |
